A-83400377-AI Cone Inner

Name: A-83400377-AI Cone Inner
SKU: A-83400377-AI
Price: 24.0 USD
Availability: InStock

A-83400377-AI Cone Inner

$24.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

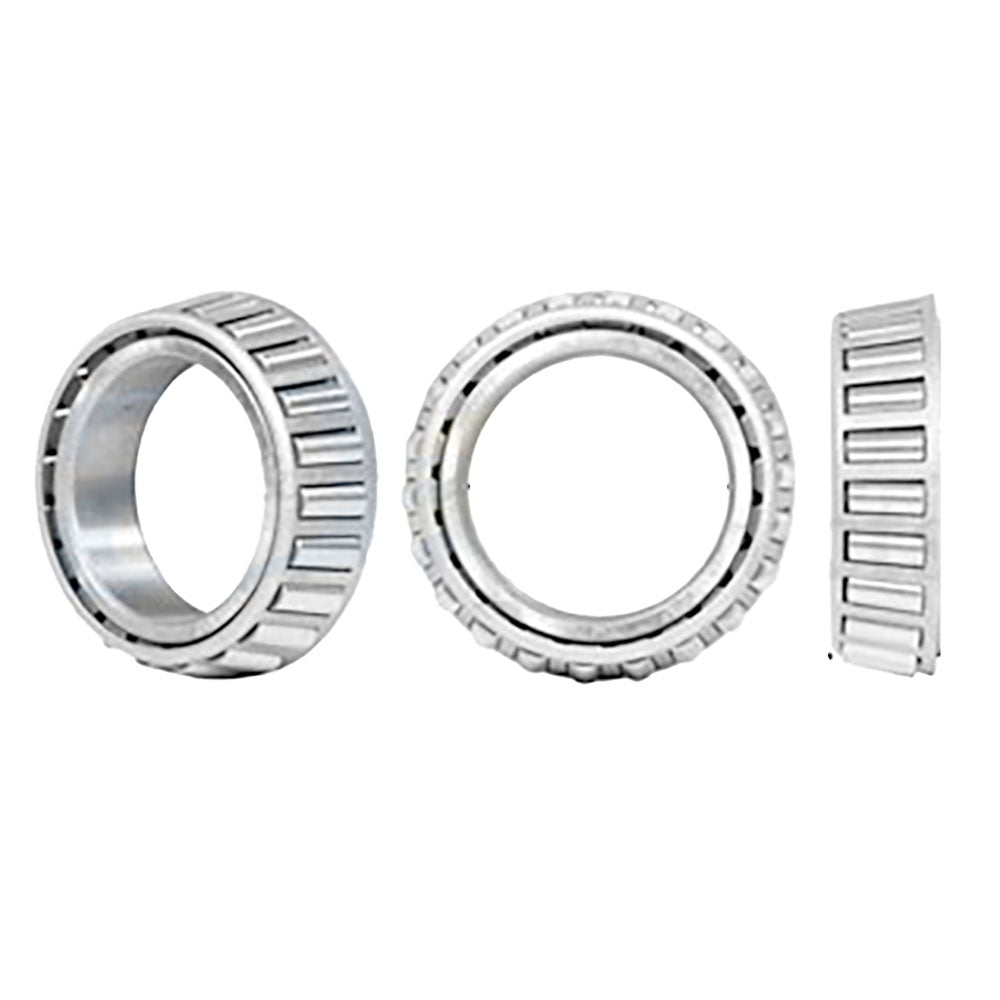

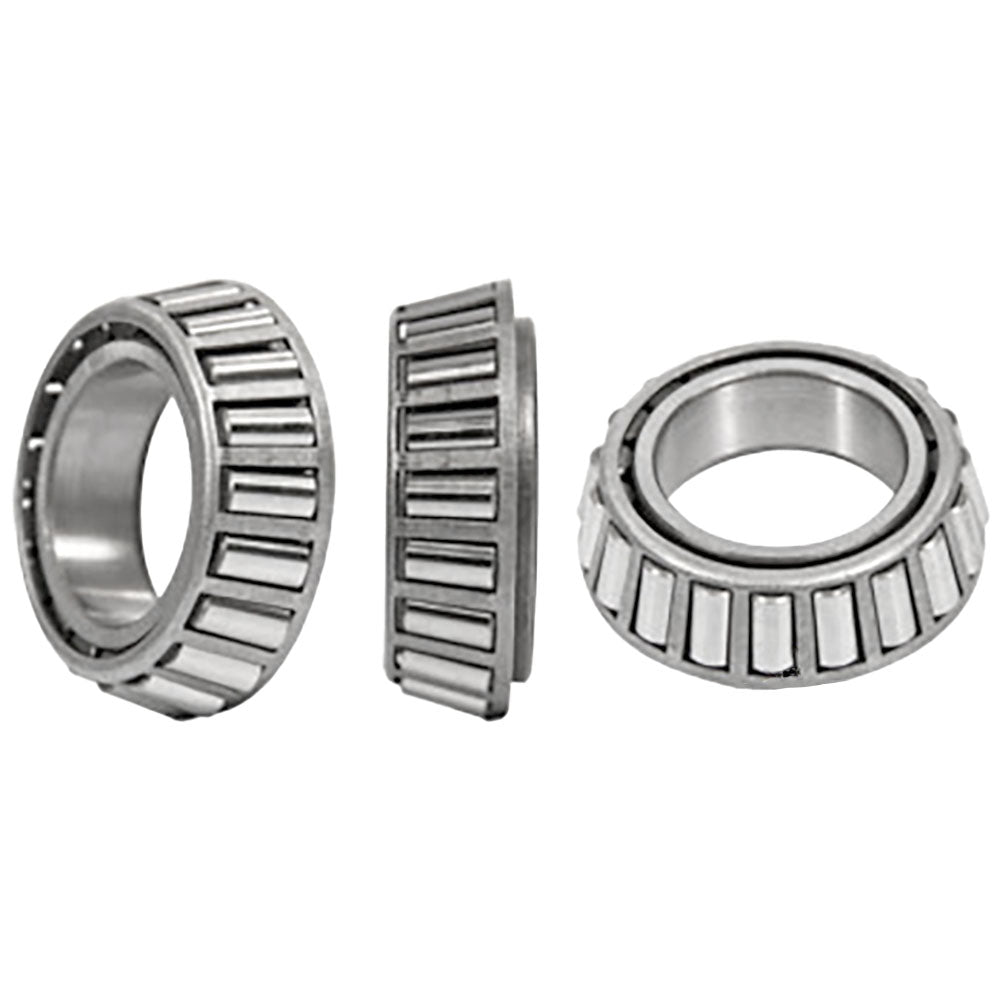

One New Aftermarket Replacement Tapered Roller Bearing Cone for Agricultural, Construction, and Industrial Equipment

This tapered roller bearing cone (inner race assembly) is a high-use replacement part found across a wide range of agricultural tractors, combines, planters, disc harrows, balers, forklifts, and industrial equipment. The cone fits onto the rotating shaft and carries the tapered rollers, working together with a matching cup (outer race) to handle both radial and axial (thrust) loads. Compatible cup numbers include LM48510, LM48511A, and LM48514. This part corresponds to the industry-standard LM48548 bearing cone.

Specifications

Bearing Type: Tapered Roller Cone (Inner Race)
Bore (ID): 1.375 in.
Width: 0.720 in.
Casting Number: H6606/6182 CTD
Series: LM48500
Cage Material: Steel
Compatible Cups: LM48510, LM48511A, LM48514

Compatible Models

Fits Allis Chalmers: 175, 180, 185, 200, 202, 203, 204, 205, 230, 231, 233, 234, 235, 240, 245, 255, 265, 268, 269, 272, 273, 275, 276, 285, 303, 310, 315, 333, 334, 335, 364, 384, 385, 395, 403, 415, 420, 425, 430, 431, 451, 454, 460, 461, 470, 475, 480, 484, 485, 490, 495, 500, 501, 503, 504, 530, 531, 541, 543, 544, 560, 574, 584, 585, 595, 595XL, 600B, 615, 620, 621, 631, 641, 651, 656, 666, 674, 684, 685, 685XL, 695, 695XL, 706, 715, 760, 766, 770, 782, 784, 786, 806, 815, 820 (3 CYL), 826, 830 (3 CYL), 856, 880, 880B, 885, 885Q, 885SK, 886, 895, 915, 930, 940, 966, 986, 990, 990A, 990B, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK, 1020, 1026, 1030, 1040, 1066, 1080, 1085, 1086, 1120, 1130, 1140, 1190, 1194, 1206, 1256, 1290, 1294, 1390, 1394, 1420, 1440, 1456, 1460, 1466, 1468, 1470, 1480, 1486, 1520, 1530, 1550, 1566, 1568, 1586, 1620, 1630, 1640, 1644, 1660, 1666, 1680, 1688, 1700, 1705, 1710, 1715, 1720, 1725, 1730, 1735, 1750, 1822, 1830, 1844, 1850, 2010, 2020, 2022, 2030, 2031, 2040, 2044, 2100, 2110, 2111, 2120, 2130, 2131, 2135, 2144, 2150, 2155, 2166, 2188, 2240, 2255 (SWEPT BACK), 2300, 2300A, 2310, 2344, 2350 (LOWPROFILE), 2355 (MID-HI AXLE), 2366, 2377, 2388, 2400A, 2500, 2500A, 2550, 2555 (MID-HI AXLE), 2577, 2588, 2600, 2600N, 2600R, 2600V, 2606, 2610, 2610V, 2630, 2640, 2656, 2706, 2755 (MID-HI AXLE), 2756, 2810, 2826, 2830, 2856, 2910, 2930, 3055, 3088, 3100, 3110, 3120, 3150, 3190, 3288, 3300, 3310, 3330, 3488 Hydro, 3488, 3488, 3550, 3600, 3600N, 3600R, 3600V, 3610, 3610V, 3688, 3900, 3910, 3910H, 3910R, 3910V, 3930, 4030, 4031, 4040, 4100, 4110, 4110NO, 4110O, 4110TR, 4120, 4121, 4130, 4130AP, 4130N, 4140, 4190, 4200, 4330, 4340, 4410, 4410SU, 4500, 4600, 4610, 4610N, 4610NO, 4610O, 4610SU, 4630, 4830, 4830N, 5030, 5030O, 5088, 5288, 5488, 6000, 6088, 7000, 7000 Series, 7088, 7100, 7200, 7240, 7300, 7340, 21026, Hydro 70, Hydro 86, Hydro 100, Hydro 186, B275, B414, I-544, MaxEmerge, MaxEmerge 2

Fits Case/International Harvester: 82, 135, 150, 165, 230A, 250, 300, 300B, 354, 384, 403, 500B, 606, 611, MaxEmerge, MaxEmerge 2, and additional IH models listed above

Fits Ford/New Holland: 2000, 2110, 2120, 2150, 2300A, 2600, 2610, 2810, 2910, 3000, 3100, 3110, 3120, 3190, 3300, 3310, 3330, 3550, 3600, 3900, 3910, 3910H, 3910R, 3910V, 3930, 4000, 4100, 4110, 4120, 4130, 4140, 4200, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 6000, 7000, 7100, 7200, 7240, 7340

Fits Massey Ferguson: 135, 150, 165, 175, 180, 185, 230, 231, 233, 234, 235, 240, 245, 250, 255, 265, 268, 269, 272, 273, 275, 276, 285, 690, 695

Fits John Deere: 20, 20C, 20D, 20F, 82

David Brown / Leyland / Hesston / GEHL / Krause / Amco / Kewanee / Sidewinder / Speeco / Rhino / Bush Hog / Fits Woods / Vermeer / Fits Caterpillar: See ref numbers and models list; this bearing is used across a broad range of agricultural, construction, and industrial machinery from these manufacturers.

Replaces Part Number(s):

3043871R91, 3043869R91, 83400377, 83992408, 81854752, 86516468, 80340634, 56504C91, 618022R91, 618023R1, 618023R91, 671078R91, 826928C91, 1288571C91, 144074C91, 371896R91, 371897R91, 371898R1, 383459C91, 4096588, 70227665, 70430421, 70929628, 74254317, 791265M91, 831078M1, 16076SW, 48977, BE22140, 10353, GHB144, 2717WD, 70045, X5656, G57451, G57452, 41112, 0227665, 1766918, 227665, 254317, 40460, 4254317, 430421, 530474, 851-IM48548, 9091, LM48548, 710475, 146241BH, 573BH, 005-0471, 0050471, 050471, 913-LM48548, AT320692, JD8194, JD9099, 520047, 1716071

Aftermarket Interchange Numbers

LM48548 (Timken/industry standard); compatible cups: LM48510, LM48511A, LM48514

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

303, 425, 674, 543, 7000, 3550, MaxEmerge 2, 915, 3900, 4110, 3288, 4030, 995Q, 885, 784, 1390, 2577, 4110NO, 3310, 815, 2100, 885Q, 334, 233, 2656, 1750, 4140, 7100, 460, 820 (3 CYL), 175, B414, 150, 6088, 756, 7088, 885SK, 641, 986, 3910V, 1644, 205, 2240, 615, 204, 656, 2500, 461, 3910, 990A, 2640, 990B, 2010, 4130AP, 335, 886, 2000, 4610O, 2610, 385, 1680, 4830N, 715, 165, 285, 995, 1020, 395, 1550, 530, 1394, 1140, Hydro 86, 4630, 601, 560, 200, 541, 269, 3000, 300, 895, 3610V, 2030, 7300, 995SK, 1715, 1085, 2188, 415, 4110O, 1290, 1830, Hydro 100, 21026, 3910R, 4000, 2600, 2044, 430, 490, 4130, 990, 695, 1080, 2388, MaxEmerge, 4330, 273, 2756, 940, 1630, 2022, 880B, 2144, 3500, 2755 (MID-HI AXLE), 830 (3 CYL), 3600N, 5288, 2606, 2130, 4340, 403, 3190, 2040, 4610, 250, 4190, 2826, 500, 7340, 310, 5088, 2300, 4410, 3488 Hydro, 3600V, 531, 431, 2600N, 1256, 585, 333, 880, 230, B275, 451, 3930, 3110, 631, 1440, 384, 4610NO, 1620, 1420, 685, 2555 (MID-HI AXLE), 600B, 230A, 3600, 485, 1030, 475, 265, 996Q, 4121, 766, 1466, 4500, 3055, 2856, 71 Flexi, 272, 651, 5488, Hydro 186, 684, 2600V, 2810, 1586, 1190, 240, 470, 1710, 1026, 504, 574, 20, 1700, 495, 4610N, 4410SU, 990SK, 930, 595, 503, 4200, 990Q, 2830, 782, 480, 5030O, 1725, 4031, 231, 3300, 2166, 2131, 1520, 620, 2300A, 4130N, 2020, 1822, 806, 354, 4830, 584, 7200, 2706, 1086, 2344, 3120, 500B, 2150, 6000, 1530, 234, 3088, 786, 1720, 2550, 3688, 2355 (MID-HI AXLE), 611, 1660, 2350 (LOWPROFILE), 1688, 501, 255, 1206, 1294, 2610V, 82, 1640, 695XL, 544, 5030, 4120, 1850, 4100, 420, Hydro 70, 2110, 185, 1066, 966, 1130, 2310, 996SK, 2588, 3150, 1120, 20C, 2366, 484, 3610, 1568, 4610SU, 826, 7240, 1705, 1735, 203, 1844, 2377, 3330, 2255 (SWEPT BACK), 706, 7000 Series, 770, 20F, 2135, 135, 686, 606, 1040, 666, 1470, 595XL, 2910, 180, 315, 268, 2930, 2155, 2600R, 245, 276, 20D, 2400A, 1456, 2111, 1666, 454, 1486, 4040, 1566, 3100, 235, 760, 3600R, 1460, 4110TR, 4131, 4600, 275, 621, 1194, 1480, 2630, 300B, I-544, 364, 202, 1468, 996, 685XL, 2500A, 2031, 2120, 1730, 856, 3910H

Additional Information:

Bore - 1.375" Width - 0.720" Casting Number - H6606/6182 CTD Radius - Spcl. Bearing Type - Tapered Cup/Cone

Reference Numbers:

GHB144, 005-0471,0050471,050471, 0227665,1766918,227665,254317,3043869R91,40460,4254317,430421,530474,851-IM48548,9091,LM48548, 791265M91, 831078M1, 10353, 913-LM48548, AT320692, JD8194, JD9099, 4096588,70227665,70430421,70929628,74254317, 16076SW, 1716071, 710475, 48977, 80340634, 81854752, 83400377, 83992408, 146241BH,573BH, 2717WD, 70045, BE22140, 520047, X5656, 41112, 1288571C91, 144074C91, 371896R91, 371897R91, 371898R1, 383459C91, 56504C91, 618022R91, 618023R1, 618023R91, 671078R91, 826928C91, G57451, G57452, 86516468, 3043869R91, 3043871R91
