A-4998353-AI AMP 33 ALTERNATOR

Name: A-4998353-AI AMP 33 ALTERNATOR
SKU: A-4998353-AI
Price: 227.0 USD
Availability: InStock

A-4998353-AI AMP 33 ALTERNATOR

$227.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

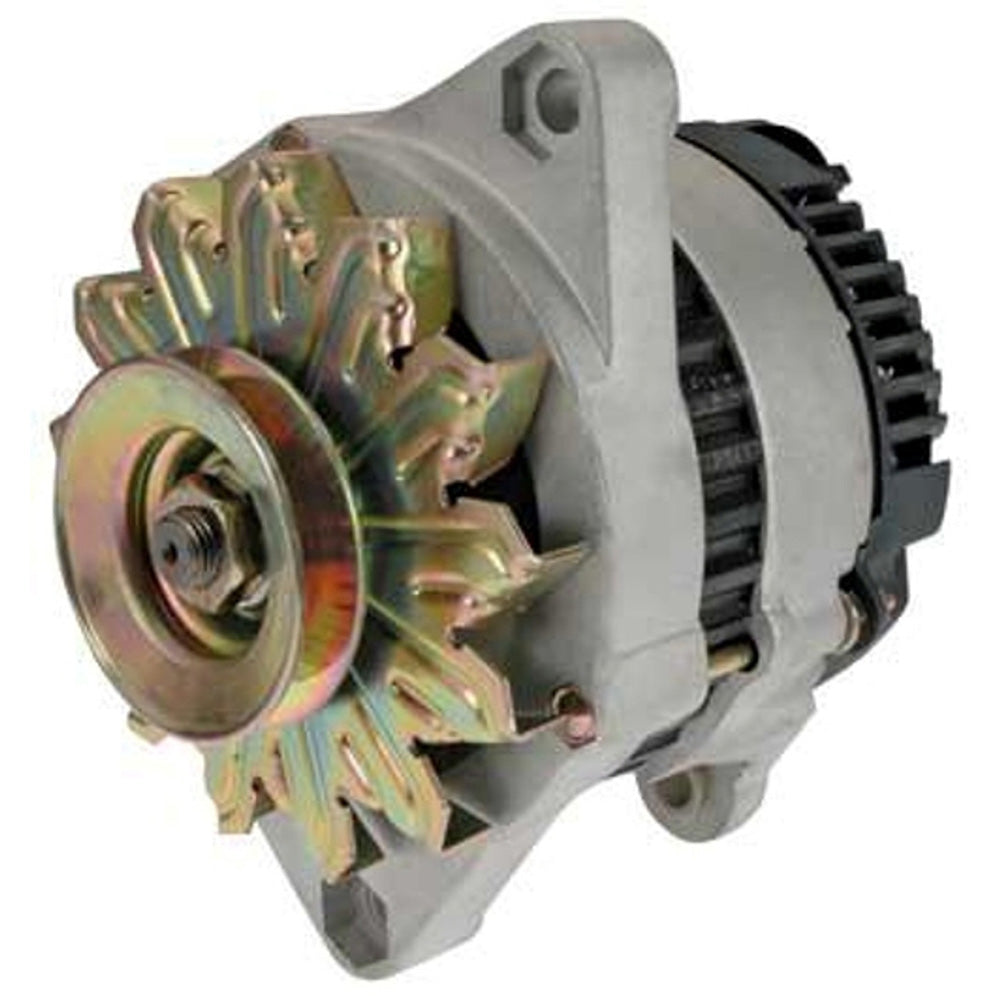

One New Aftermarket Replacement 33 Amp Alternator for Fiat, Fits Ford/New Holland, and Fits Allis Chalmers Tractors

This aftermarket replacement alternator (Iskra/Marelli style) fits a wide range of Fiat, Fits Ford/New Holland, and Fits Allis Chalmers (AC) agricultural tractors. It replaces the Fits Bosch-style and Marelli-style OEM units originally fitted to these machines and provides reliable charging system output for diesel-powered tractors in this series.

Specifications

Voltage: 12V
Amperage: 33 Amps
Regulator: Internal
Fan Type: External
Rotation: Clockwise
Pulley: 90 mm, Single Groove
Pulley Shaft Type: Hex
Shaft Length: 25.3 mm
Mounting: Two-hole, 12.2 mm mounting hole diameter
Connection Type: Ring Terminal, Hex Nut
Height: 182 mm
Length: 162 mm

Compatible Models

Fiat Tractors: 45-66, 55-66, 60-66, 65-66, 65-90, 70-66, 70-90, 80-66, 80-90, 85-90, 466, 540, 550, 566, 580, 640, 666, 680, 766, 780, L60, L65, L75, L85, L95, 4330, 4330 Vineyard, 4430, 4430 Orchard, 4835, 5045, 5050, 6635

Fits Ford/New Holland Tractors: 3830, 4030, 4230, 4330, 4330V, 4430, 4835, 5635, 6635, 7635

Fits Allis Chalmers Tractors: 5050

Replaces Part Number(s):

4242730, 4720502, 4762563, 4766127, 4772683, 4787598, 4799364, 4808498, 4808500, 4808504, 4998353, 5101645, 8029593, 9972269, 72091669, 72091686

Aftermarket Interchange Numbers

Fits Bosch: 0-120-339-515, 0-120-339-516, 0-120-339-523, 0-120-339-527, 0-120-339-528; Iskra/Marelli style unit also known as interchange 12029, IA 0037, IA 0336, IA 0405, IA 9430

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

65-66, 65-90, 566, 5045, 6635, 500, 7635, 666, 80-66, L95, 4835, 4330, 466, 5050, L85, 55-66, 4330 VINEYARD, 45-66, 540, 4430, 60-66, 55-90, L75, 80-90, 580, 680, 70-66, 4430 ORCHARD, 640, L60, 550, 70-90, 780, 5635, 85-90, L65, 766

Additional Information:

14V, 55 Amps Connection Type: Ring Terminal Fan Type: External Height: 182 mm Length: 162 mm Mounting Hole: 12.2 Number of holes: Two Nut: Hex Nut Pulley: 90 mm Pulley type: Single Groove Shaft Length: 25.3 Shaft type: Hex

Reference Numbers:

72091686, 72091669, 4242730, 5101645, 4808498, 4808500, 4762563, 4799364, 4808504, 4720502, 4787598, 5101645, 4762563, 4808504, 4808498, 4998353, 4766127, 4772683, 8029593, 4242730, 9972269
