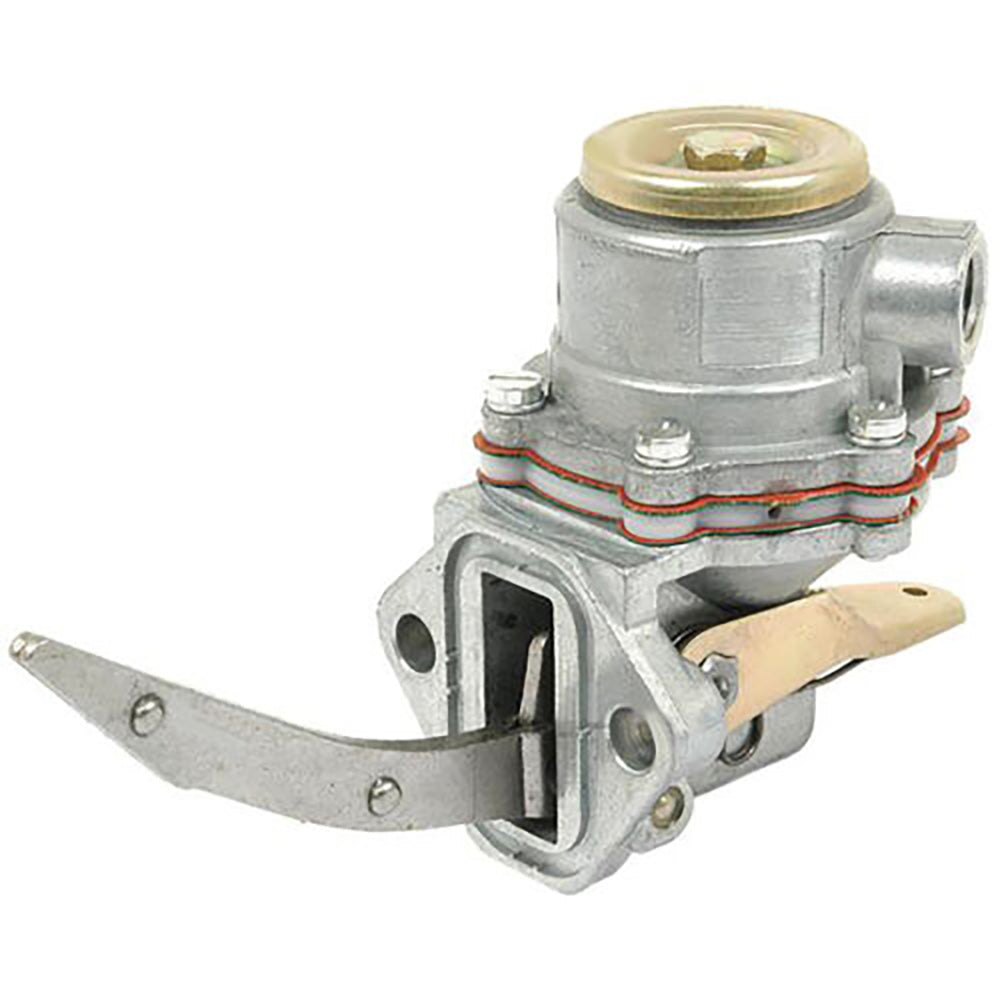

A-4709284-AI Fuel pump

One New Aftermarket Replacement Fuel Lift Pump for Fiat, Fits Ford, Fits New Holland, and Long Tractors

This mechanical fuel lift pump replaces OEM part number 4709284 and transfers diesel fuel from the tank to the injection pump on a range of Fiat, Fits Ford, Fits New Holland, and Long agricultural tractors and equipment powered by Fits Iveco diesel engines. The pump mounts with 2 bolts, includes an o-ring style gasket, and features a cam-actuated lever for hand-priming.

Specifications

• Type: Mechanical cam-driven fuel lift pump
• Mounting Holes: 2
• Inlet Position: 2 o'clock (cam lever facing forward)
• Outlet Position: 10 o'clock (cam lever facing forward)
• Includes: O-ring style gasket
• Compatible Engines: Fits Iveco 8051.05.200, 8055.05.200, 8065.05.200, 8055.25.200, 8061.05.200, 8065.06.200, 8065.25.200 Turbodiesel; Fits New Holland 8065.SE00.00A003

Compatible Models

Fiat Tractors: 750, 850, 880, 880-5, 880-5DT, 90-90, 90-90DT, 100-90, 100-90DT, 980, 980DT, 1000, 1000DT, 1000S, 1180, 1180DT, 1280, 1280DT, 1380, 1380DT, F100

Fiat Crawlers: FL7, FD7, 955C, 95-55C

Fiat Graders: 65B

Fiat Loaders: FR10, FR12

Fits Ford Tractors: 7530

Fits New Holland Tractors: 100S, 100S DT, 110S, 110S DT

Fits New Holland Braud Grape Harvesters: SB60, SB62, SB64

Long Tractors: 260C, 310, 310C, 8045, 8051, 8055, 8060

Replaces Part Number(s):

4709284, A-4709284, A4709284, 4673618, A-4673618, A4673618, 4740719, A-4740719, A4740719, 4757884, 04757884, A-4757884, A4757884, 4765158, A-4765158, A4765158, TX16823, VPD3036

New aftermarket replacement part - not remanufactured, not used.
