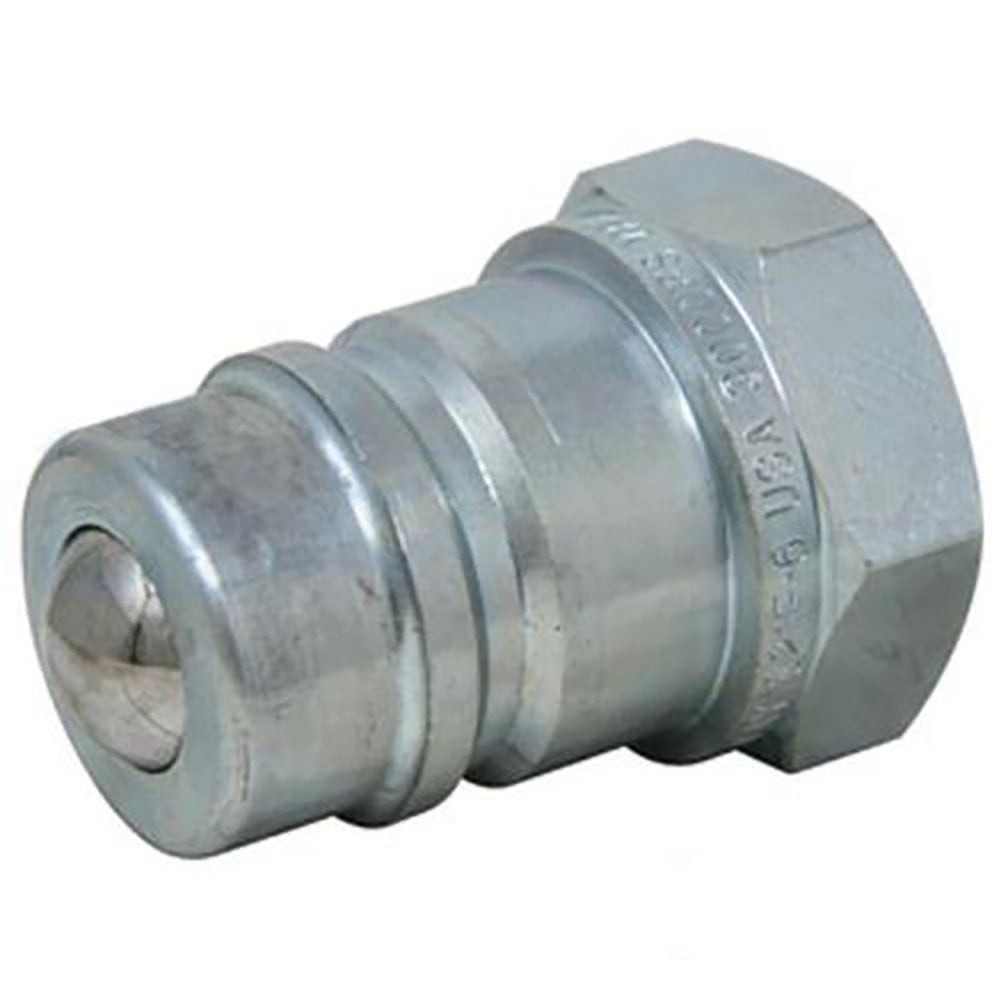

A-4110-5-AI Male Tip

One New Aftermarket Replacement Pioneer-Style Hydraulic Male Tip - 3/4" NPTF Ball Valve (A&I Products)

This aftermarket replacement hydraulic quick-disconnect male tip (nipple) is a 3/4" body, ball-valve style coupling conforming to ISO 5675 requirements. It threads into hydraulic lines via a 3/4"-14 NPTF female port and connects with compatible Pioneer-style 4000 Series couplers and 4200 Series couplers. The hardened locking ball groove resists wear and protects against Brinelling, while the shielded valve and positive valve stop eliminate flow checking for smooth, reliable performance. Replaces Parker/Pioneer part number 4110-5.

Specifications

• Body Size: 3/4"
• Thread Size: 3/4"-14 NPTF (female thread)
• Valve Style: Ball
• Length: 1.81"
• Largest Diameter: 1.52"
• Wrench Flats: 1.31"
• Pressure Rating: 3,000 PSI
• Temperature Range: -40 to 250 deg F
• Material: Steel body, NBR seals
• Finish: Zinc with clear trivalent chromate
• Conforms to ISO 5675

Compatible Applications

Agricultural and Mobile Equipment: Tractors and agricultural equipment, hydraulic loaders, add-on hydraulic circuits, hydraulic tools, snow plow attachments, construction equipment, and general industrial hydraulic systems requiring a 3/4" NPTF Pioneer-style male tip.

Replaces Part Number(s):

4110-5, 41105, 25684110-5, 4110-5-P

New aftermarket replacement part - not remanufactured, not used.
