A-308ASAE25 3 X 8 Dbl Acting Cylinder, 2500 PSI
A-308ASAE25 3 X 8 Dbl Acting Cylinder, 2500 PSI
Couldn't load pickup availability

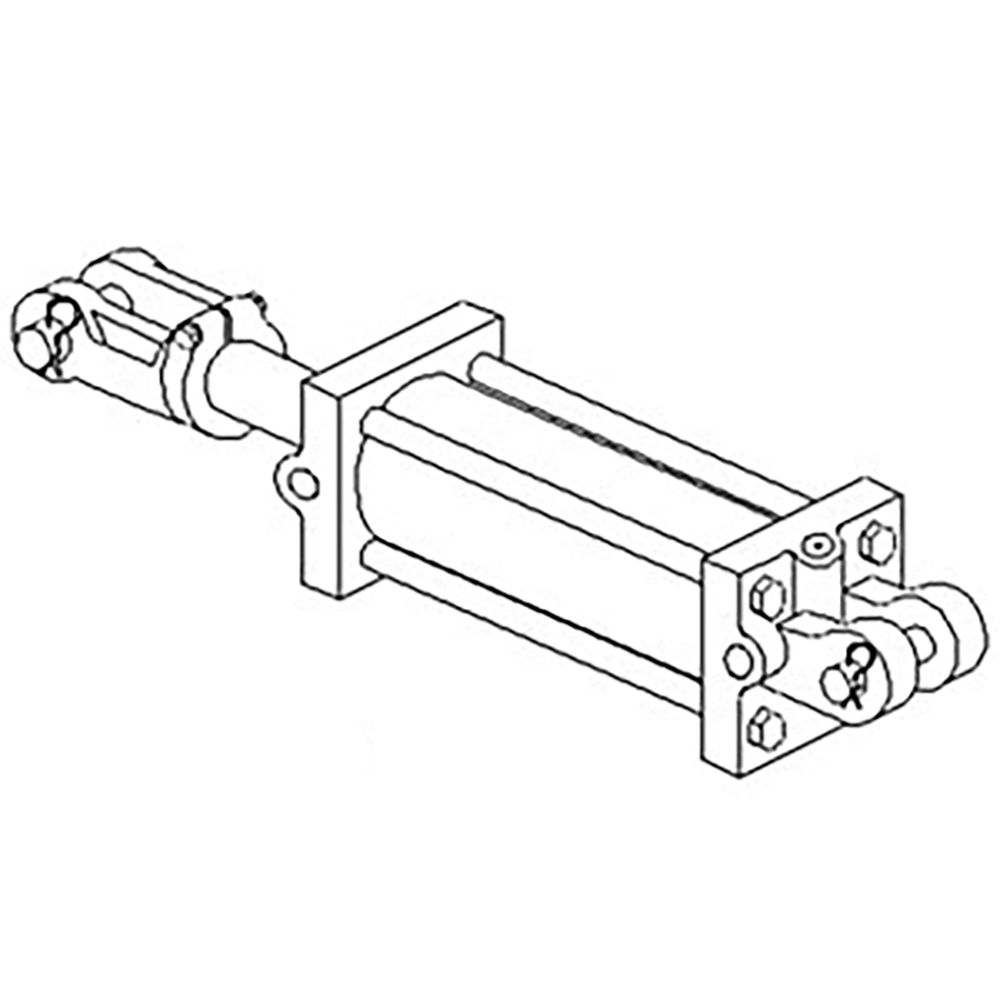

One New Aftermarket Replacement Double-Acting Hydraulic Cylinder - Cross 308DU-ASAE, 3" x 8" Tie-Rod, ASAE Standard
This Cross DU Series tie-rod hydraulic cylinder is designed for agricultural implement applications requiring an ASAE standard 8" stroke with mechanical depth stop capability. The rod extension is threaded so that a mechanical depth control collar may be added when the application requires a mechanical depth stop. The cylinder uses hydraulic pressure for both extension and retraction (double-acting). It is a direct-fit replacement for Cross 308DU-ASAE cylinders used on a wide range of ag implements.
Specifications
- Bore: 3"
- Stroke: 8" (ASAE Standard)
- Rod Diameter: 1-1/4"
- Pin Diameter: 1"
- Port Size: 1/2" FNPT
- Retracted Length: 20-1/4"
- Extended Length: 28-1/4"
- Working Pressure: 2,500 PSI
- Action: Double-Acting
- Construction: Tie-Rod Design
- Rod: Threaded extension for optional mechanical depth control collar
Compatible Models
Cross DU Series: DU Series tie-rod hydraulic cylinders (ASAE 8" stroke applications requiring mechanical depth stop capability)
This cylinder is compatible with a wide range of agricultural implements and tractors requiring a standard ASAE 3" x 8" double-acting hydraulic cylinder, including Fits Case/International Harvester equipment. Verify bore, stroke, pin diameter, and port size against your application before ordering.
Replaces Part Number(s):
196-027556, 196027556, 308UB, C95-0010, C950010, CYR3008AR-ASAE, CYR3008ARASAE, 308DU
Aftermarket Interchange Numbers
Cross 308DU-ASAE, Cross 308UB, SMA 196-027556
New aftermarket replacement part - not remanufactured, not used.
