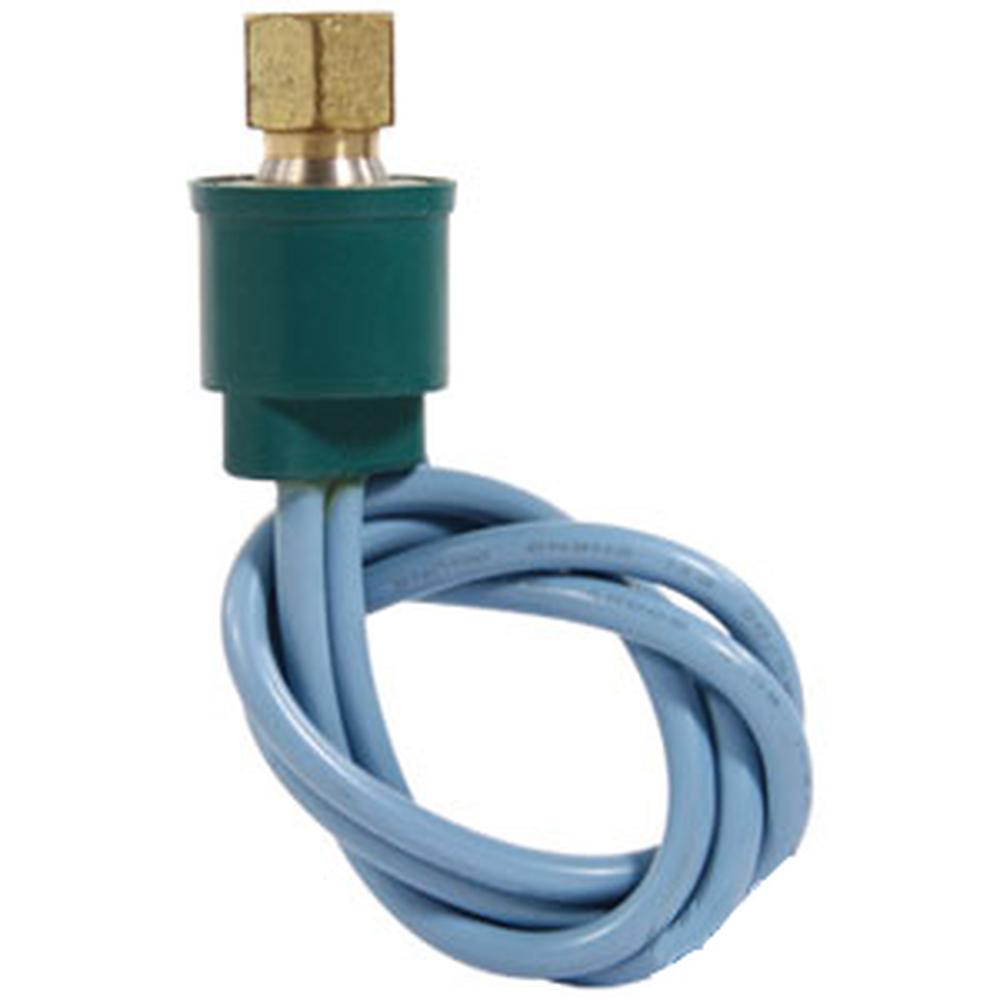

A-251002-AI Switch Lo Pressure, Line mtg, 2 wire (20 psi)
A-251002-AI Switch Lo Pressure, Line mtg, 2 wire (20 psi)
Couldn't load pickup availability
One New Aftermarket Replacement A/C Low Pressure Switch for Case IH (International Harvester) Tractors, Combines, and Harvesters
This aftermarket replacement low pressure switch (A/C low pressure cut-out switch) mounts in-line on the air conditioning refrigerant line and protects the A/C compressor from damage by cutting power when refrigerant pressure drops too low. The switch uses a 2-wire connection and threads directly into the A/C line. It is compatible with Case IH and International Harvester agricultural equipment including tractors, combines, and harvesters.
Specifications
- Switch Type: Normally Closed (N/C)
- Opens at: 15 PSI (low pressure cut-out)
- Closes at: 6 PSI
- Thread Size: 7/16" x 20
- Connector: 2-wire, line-mount
Compatible Models
Case IH / International Harvester Tractors: 485, 585, 595, 685, 695, 785, 786, 885, 886, 895, 985, 986, 1086, 1486, 1586, 3088, 3288, 3488, 3588, 3688, 3788, 4366, 4386, 4568, 4586, 4786, 5088, 5288, 5488, 6388, 6588, 6788, 7288, 7488, Hydro 186
Case IH / International Combines: 1420, 1440, 1460, 1470, 1480, 1620, 1640, 1644, 1660, 1666, 1670, 1680, 1688, 3688HC, 715
Case IH Harvesters and Hay Equipment: 4000 (s/n 4501 and later), 5000 (s/n 1901 and later)
Note: Serial number restrictions apply to some models. Verify your serial number against the restrictions listed above before ordering.
Replaces Part Number(s):
111267C1, 111267C3, 111267C4, 442183C1
New aftermarket replacement part - not remanufactured, not used.
