One New Aftermarket Replacement Starter Fits John Deere (Fits JD) Lawn Tractors with Kohler Engine

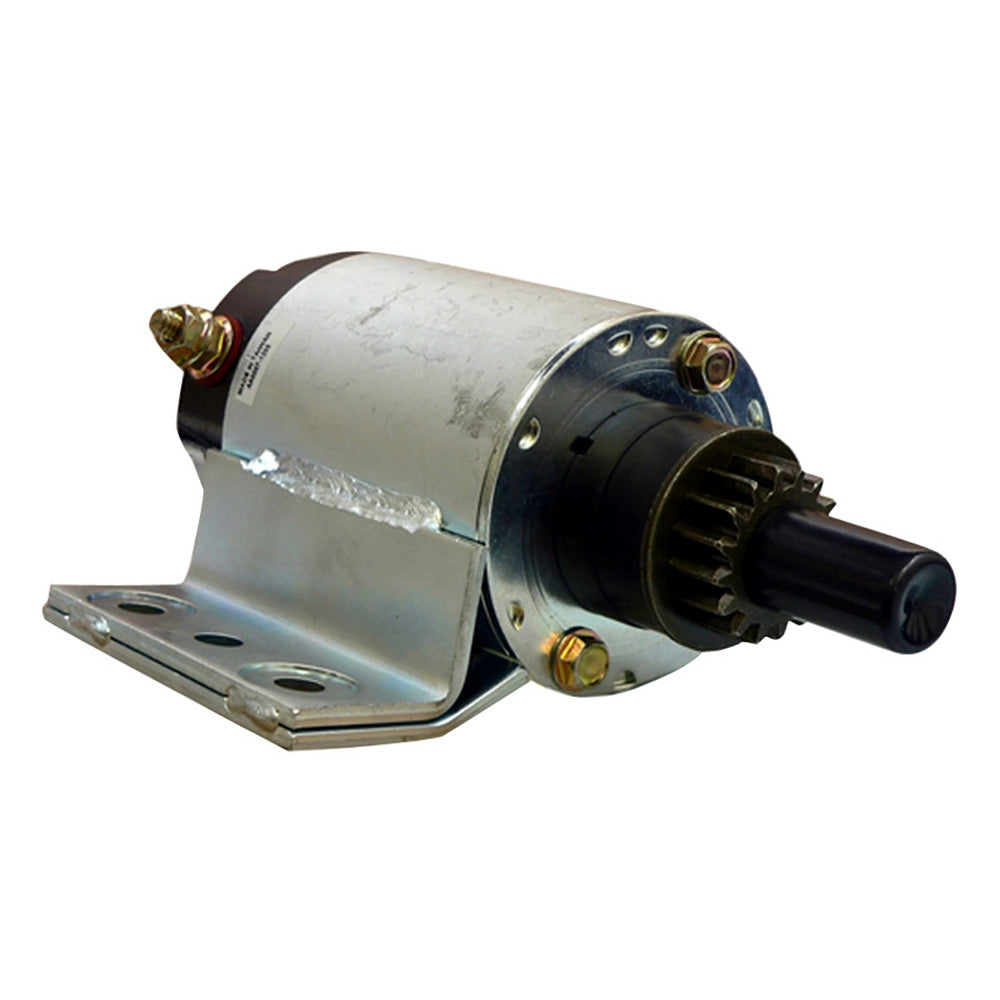

This 12-volt PMDD starter motor replaces the original electric starter on Fits John Deere (Fits John Deere) lawn tractors equipped with Kohler K161 and K181 air-cooled engines. It mounts directly to the engine block using three unthreaded 9.5mm mounting ears and engages the flywheel ring gear via a 16-tooth counterclockwise-rotation drive pinion.
Specifications
- Voltage: 12V
- Rotation: Counterclockwise (CCW)
- Type: PMDD (Permanent Magnet Direct Drive)
- Tooth Count: 16
- Gear OD: 34.5mm / 1.358 in
- Mounting Ears: 3 x 9.5mm ID unthreaded
- Field Fits Case Length: 3.45 in / 87.6mm
- Weight: 5.605 lbs / 2.55 kg
Compatible Models
Fits John Deere Lawn Tractors: 110 (Kohler 8HP, 1968-1974), 112, 200 (Kohler 8HP, 1975), 208 (Kohler 8HP, 1977-1978), 317
Fits Cub Cadet Garden Tractors: 800 (Kohler 8HP, 1974-1980)
Kohler Air-Cooled Engines: K161, K181
Replaces Part Number(s):
Fits John Deere: AM125921, AM31754, AM32853, AM34361, AM34631
Kohler: 41-098-01, 41-098-03, 41-098-08, 52-098-07, 52-098-07-S, 5209807-S, 5209807S
United Technologies: 0599640MO30SM, 4372740MO30SM, 5666540MO30SM, SME12A12, SMH12A1, SMH12A6
Aftermarket Interchange Numbers
Lester: 5767 | DB Electrical: 410-21015 | Arrowhead: 410-21015 | Unipoint: STR-1056 | Rotary: 9801
New aftermarket replacement part - not remanufactured, not used.
