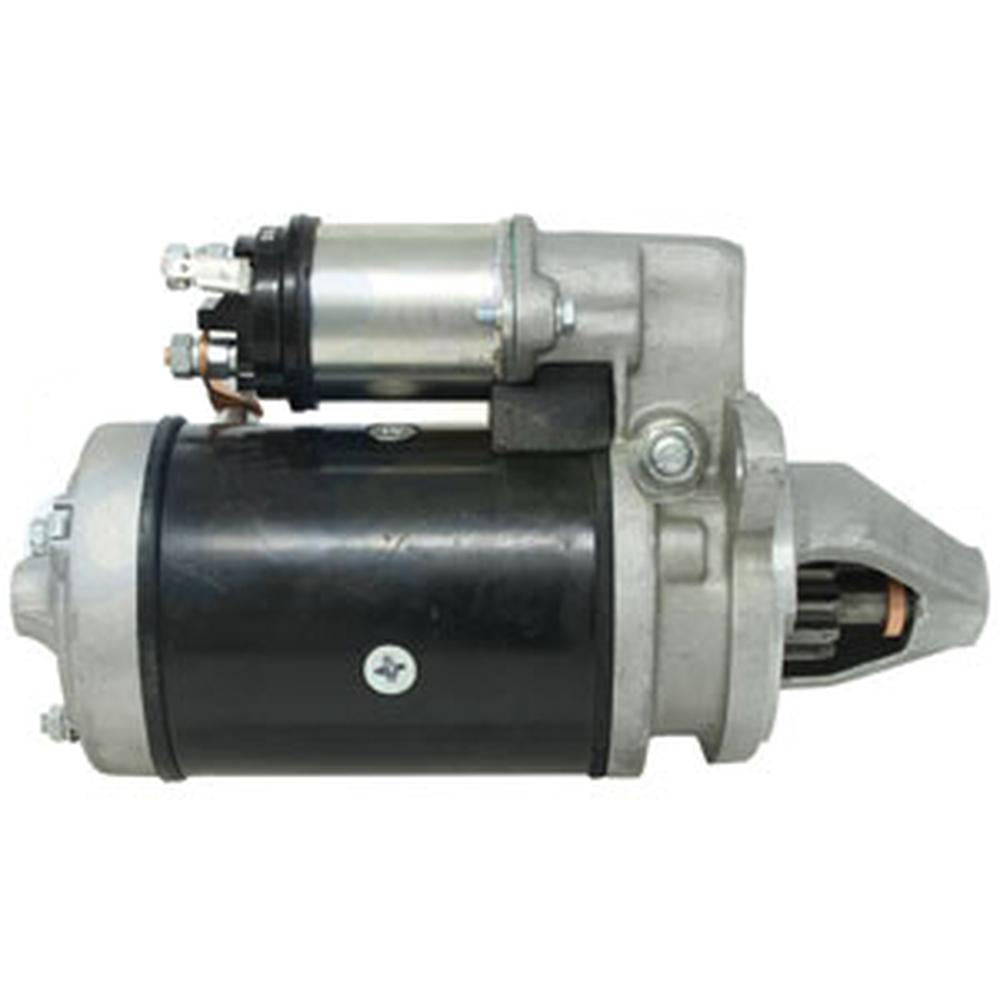

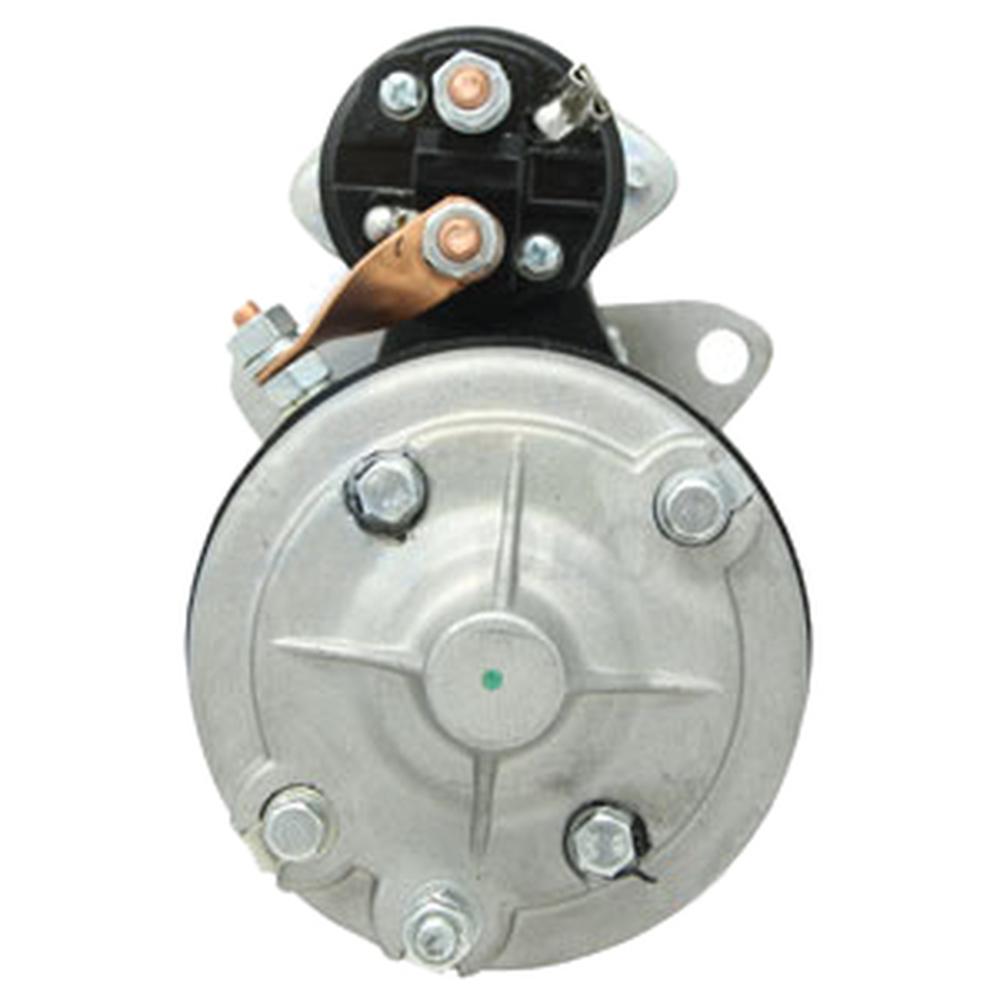

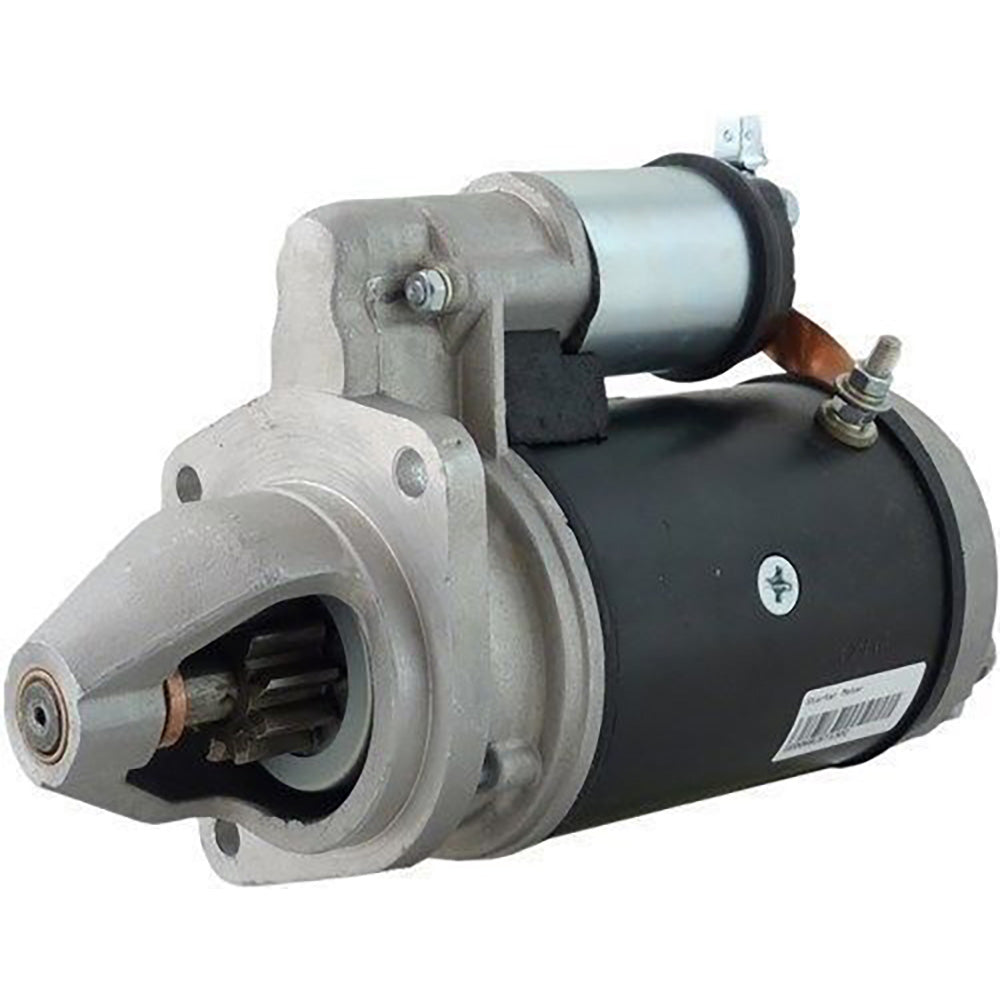

A-1680065M1-AI Starter, Fits Lucas

One New Aftermarket Replacement Lucas-Type Starter for Massey Ferguson Tractors with Perkins Engines

This 12-volt direct-drive starter motor is a direct aftermarket replacement for the original Lucas M45 starter used on a wide range of Massey Ferguson tractors equipped with Perkins engines. The starter mounts on the right-hand side of the engine and features clockwise rotation with a 10-tooth drive gear. Compatible with Perkins A3.152, AD3.152, A4.203, and AD4.203 engine families. Note: When fitted to MF 165 tractors, this starter is only compatible with the Perkins A4.203 engine - verify your engine model before ordering.

Specifications

• Voltage: 12V
• Rotation: Clockwise (CW)
• Teeth on Drive: 10
• Type: Direct Drive (DD) - Lucas Type
• Output: 2.7 kW
• Gear O.D.: 1.575 in / 40 mm
• Mounting Holes: 3, unthreaded, 10.0 mm
• Mounting Hole Distance: 146 mm
• Mounting Angle: 45 degrees
• Flywheel Depth: 28.7 mm

Compatible Models

Massey Ferguson Tractors (with Perkins Engine): 20, 20D, 20F, 30, 30E, 30H, 35 (3-Cylinder), 40E, 50, 65, 133, 135, 140, 145, 148, 150, 152, 154, 155, 158, 165, 184, 194-4, 203, 230, 234, 235, 240, 243, 245, 250, 253, 254, 255, 260, 263, 265, 290, 340, 342, 350, 352, 355, 360, 550, 6500, 8500

Replaces Part Number(s):

Massey Ferguson: 1680065M1

Aftermarket Interchange Numbers

Lucas: 26219, 26219A, 26219B, 26271, 26271A, 26271B, 26271C, 26271D, 26271E, 26271F, 26271G, 26271H, 26271I, 26271J, 26413, 26413A, 27411, 27411A, 27411B, 27433, 27433A, 27433B, 27433C, 27433D, LRS215, NSB505, S4544 | Lucas Electrical Europe: LRS00215 | Lucas TVS: 26925222A | Letrika (Iskra): IS0631, IS-0631 | Mahle: MS49 | Lester: 17645 | Magneti Marelli: 26925061, 26925061D

New aftermarket replacement part - not remanufactured, not used.
