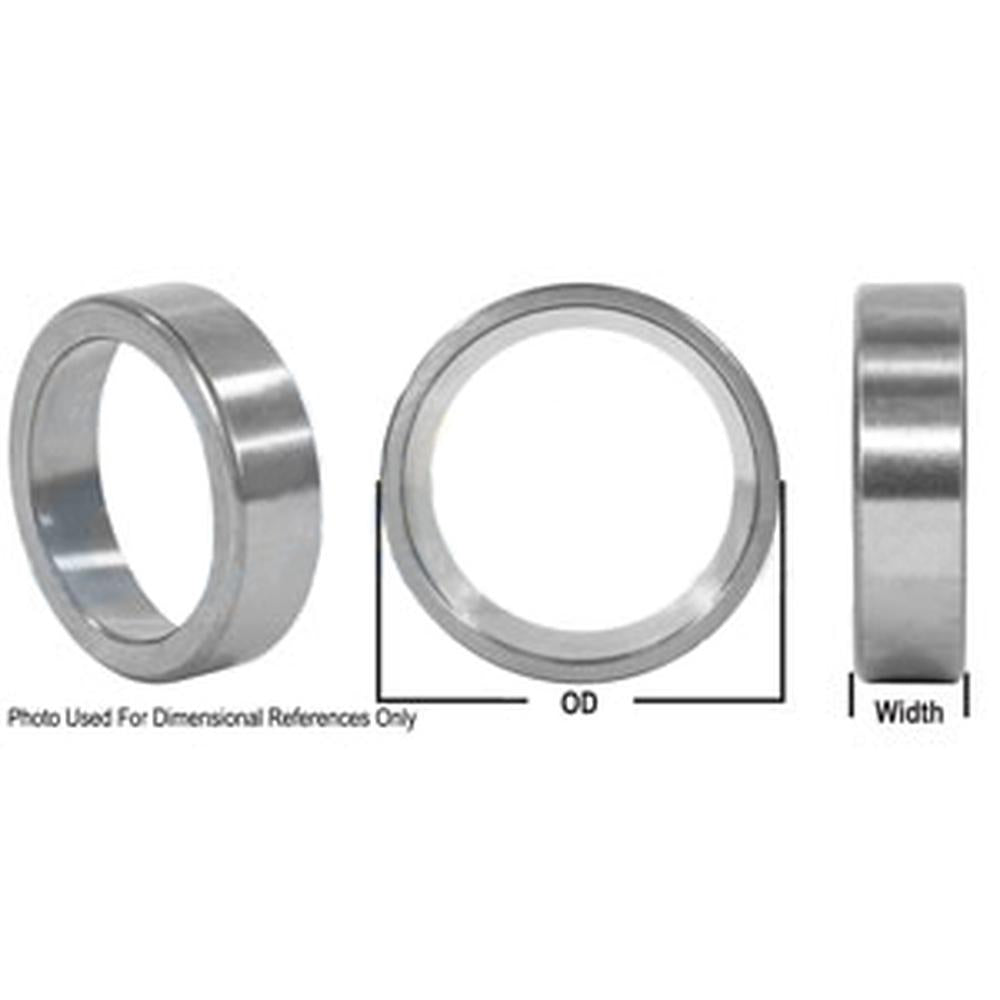

One New Aftermarket Replacement Cup, Tapered Roller Bearing - 15520 Series
This tapered roller bearing cup (outer ring) serves as the outer raceway for a 15500-series tapered roller bearing assembly. The cup is designed to work in conjunction with a matching tapered roller bearing cone (inner ring assembly, sold separately) to support both radial and axial loads on rotating shafts. Common applications include wheel hubs, axle assemblies, transfer cases, transmissions, agricultural equipment, and construction machinery.
Specifications
- Type: Single Tapered Roller Bearing Cup (Outer Ring)
- Outside Diameter: 2.2500 in (57.15 mm)
- Cup Width: 0.5313 in (13.50 mm)
- Maximum House Fillet Radius: 0.06 in
- Series: 15500
- Material: Steel
- Design: Inch Series
Replaces Part Number(s):
15520, A-15520-P-AI
Interchange / Cross-Reference
Timken 15520, NTN 15520, Peer Bearing 15520. Mating cone: 15590 or 15578.
New aftermarket replacement part - not remanufactured, not used.
