9J4259 - Bucket Tooth
9J4259 - Bucket Tooth
Couldn't load pickup availability

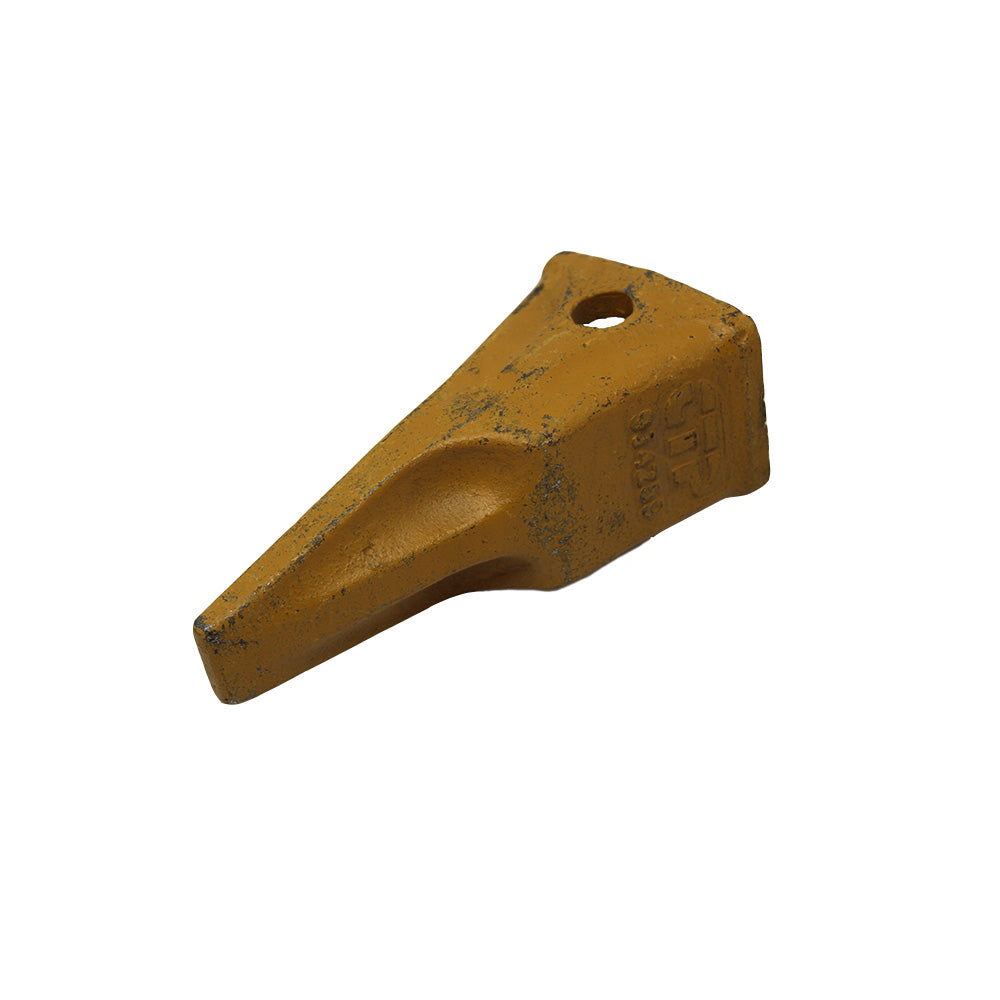

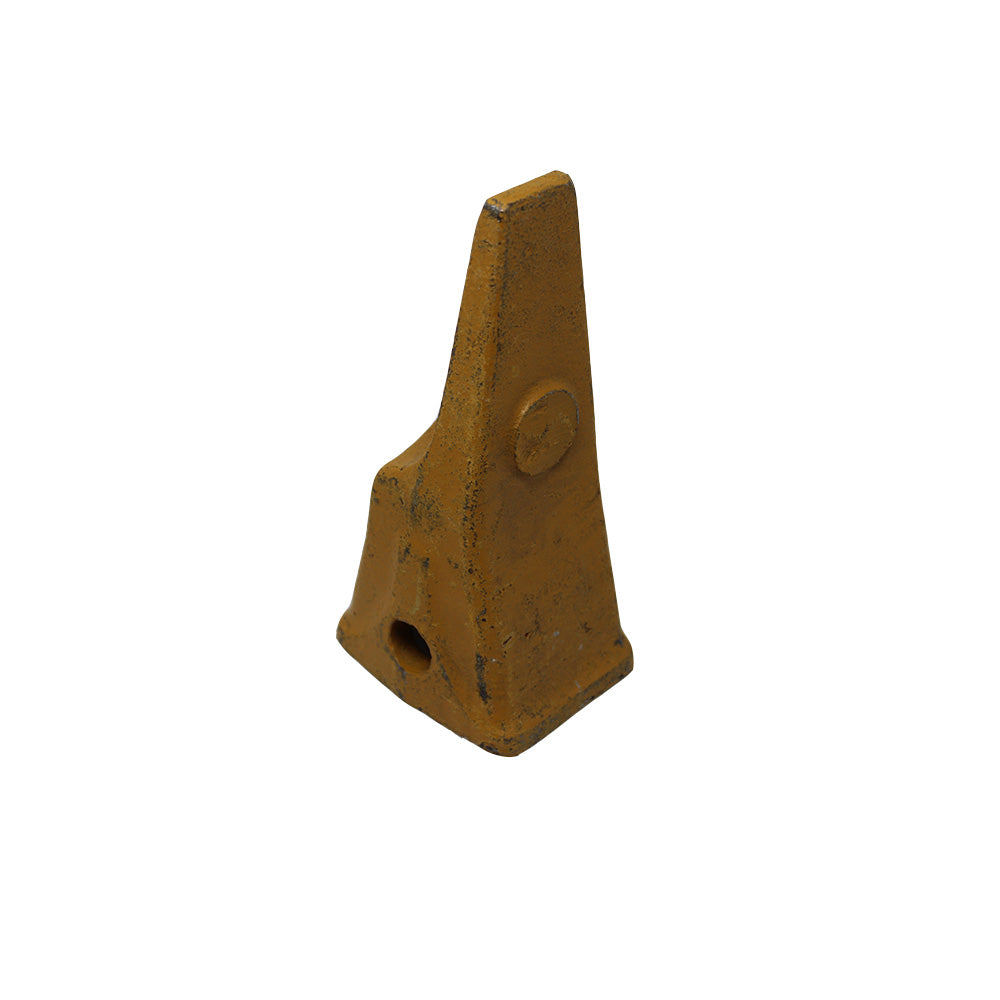

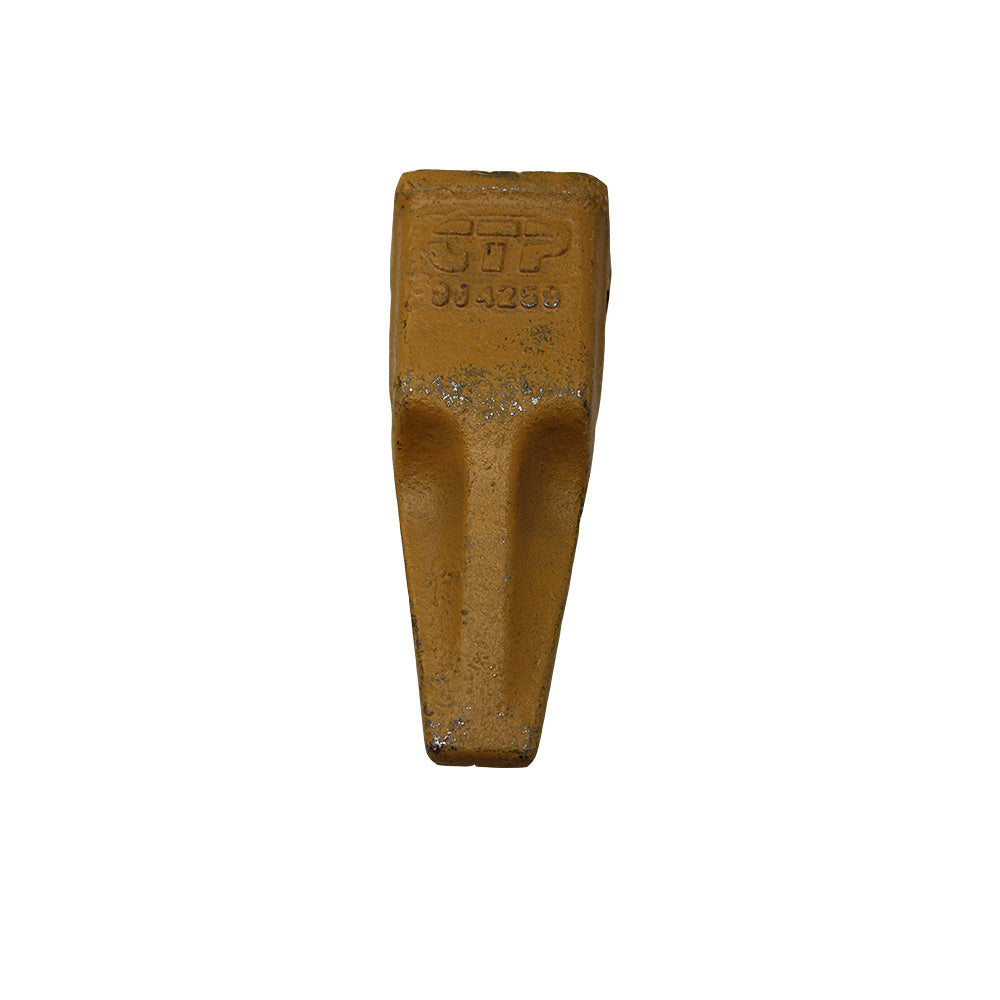

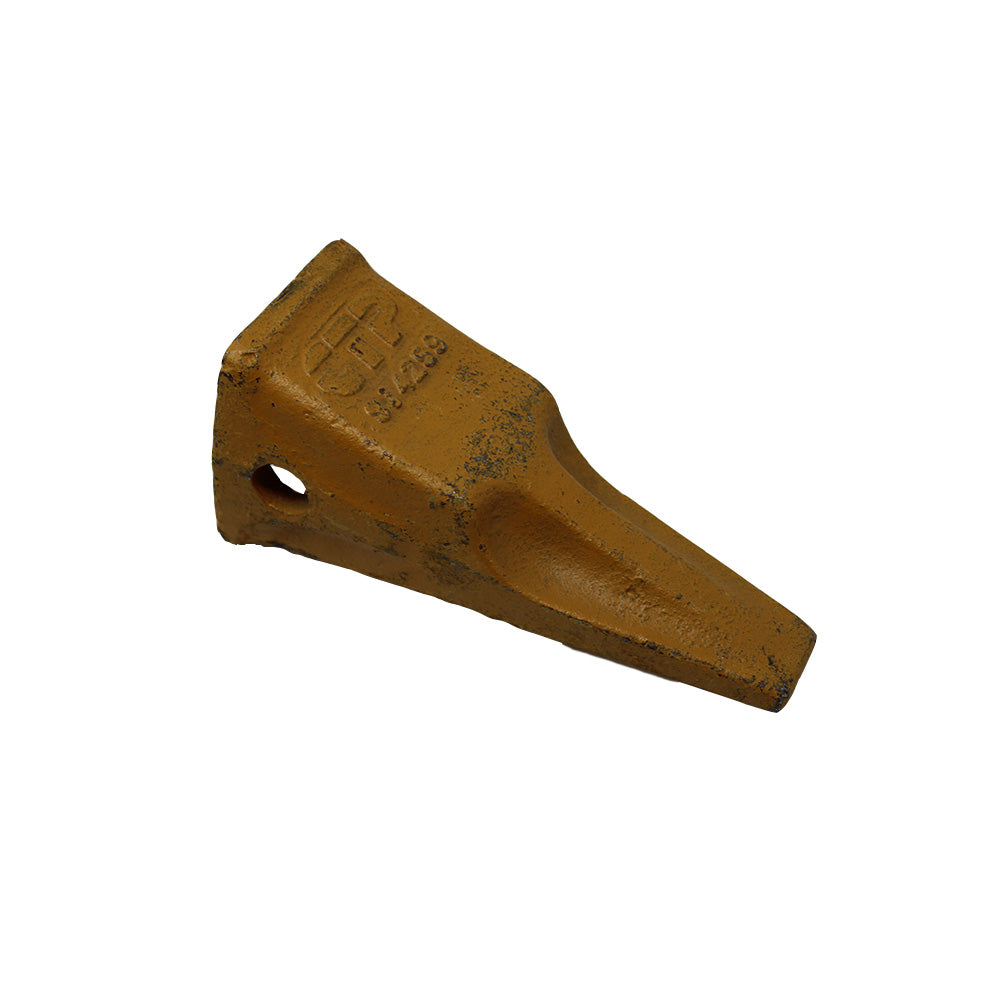

One New Aftermarket Replacement Bucket Tooth for Caterpillar (Cat) J250 Series Ground Engaging Tools
This aftermarket replacement 9J4259 is a J250 series penetration-style bucket tooth for Caterpillar (Cat) excavators, wheel loaders, track loaders, track-type tractors, and wheeled excavators. Featuring a leading-edge profile designed for maximum penetration in densely compacted materials such as clay and rock, the single-center-rib design self-sharpens during wear to extend service life and reduce downtime. Secured with a side-pin retention system using pin 8E6258 and keeper 8E6259.
Specifications
- Series: J250 (Pocket Size: 2.5")
- Style: Penetration Tip (Rock Penetrator)

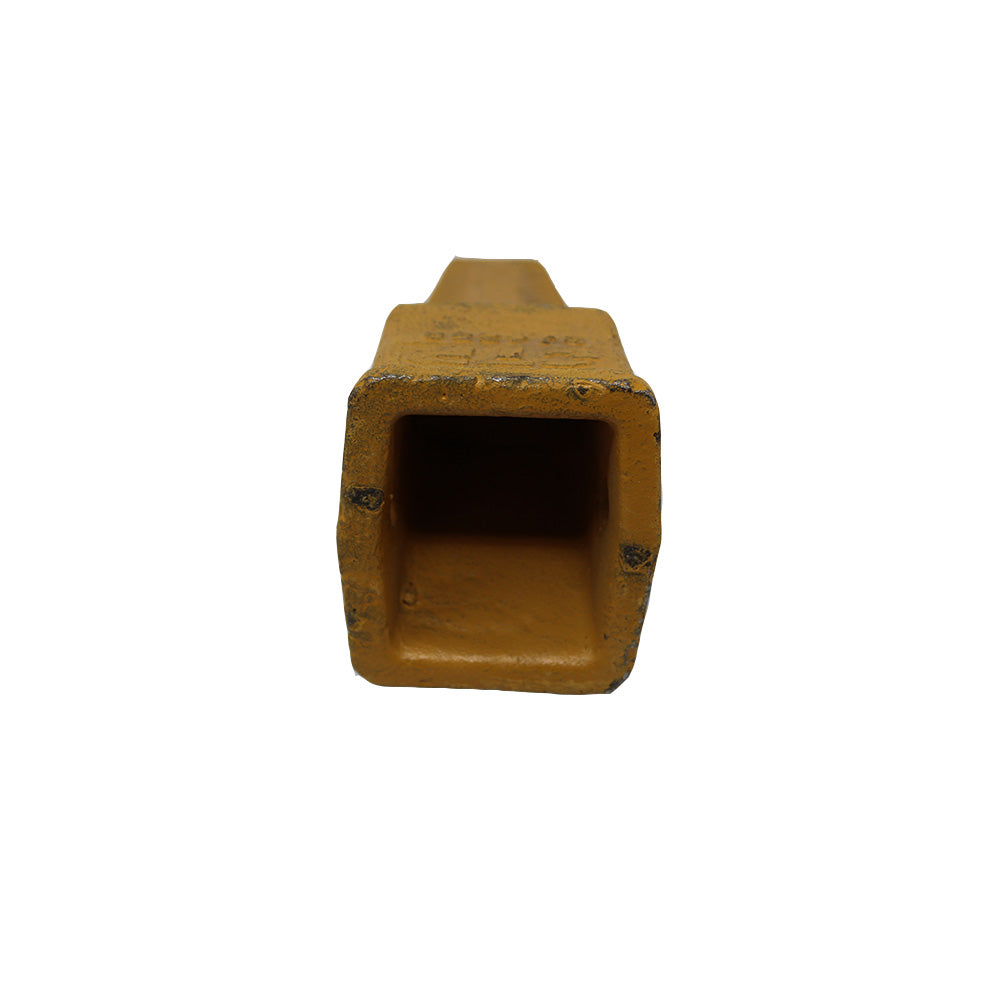

- Pocket Height: 2.09" - 2.24" (53mm - 57mm)
- Pocket Width: 2.60" - 2.76" (66mm - 70mm)
- Weight: approx. 5.60 lbs (2.4 kg)
- Retention: Side Pin - uses pin 8E6258 and keeper/retainer 8E6259
- Compatible Adapter Nose: 1U1254 (flush mounted) or 6Y3254 (weld-on)
Compatible Models
Caterpillar Excavators: 205, 206, 212, 311, 311B, 311C, 312, 312B, 312B L, 312C, 312C L, 312D, 312D2, 312D2 L, 312E, 314C, 316E L, 320, E110B, E120B, E200B, E240C, EL240B
Caterpillar Mini Hydraulic Excavators: 307C, 308C
Caterpillar Wheel Loaders: 916, 917, 918, 920, 922, 924, 926, 928, 930, 936, 936F, 938G II, 938H, 941, 943, 951
Caterpillar Track Loaders: 943, 953, 953B, 953C, 953D
Caterpillar Track-Type Tractors: D3G, D3K XL, D3K2 LGP, D4G, D4K XL, D4K2 XL, D5G, D5K LGP, D5K2 XL
Caterpillar Wheeled Excavators: M312, M313C, M313D, M315, M315D2
Caterpillar Integrated Tool Carriers: IT38G II, IT38H
Replaces Part Number(s):
9J4259, 9J-4259
New aftermarket replacement part - not remanufactured, not used.
