LH Left Hand Spindle Assembly Fits Ford 8N3106B F3NN3106AA 8N NAA
LH Left Hand Spindle Assembly Fits Ford 8N3106B F3NN3106AA 8N NAA
Couldn't load pickup availability

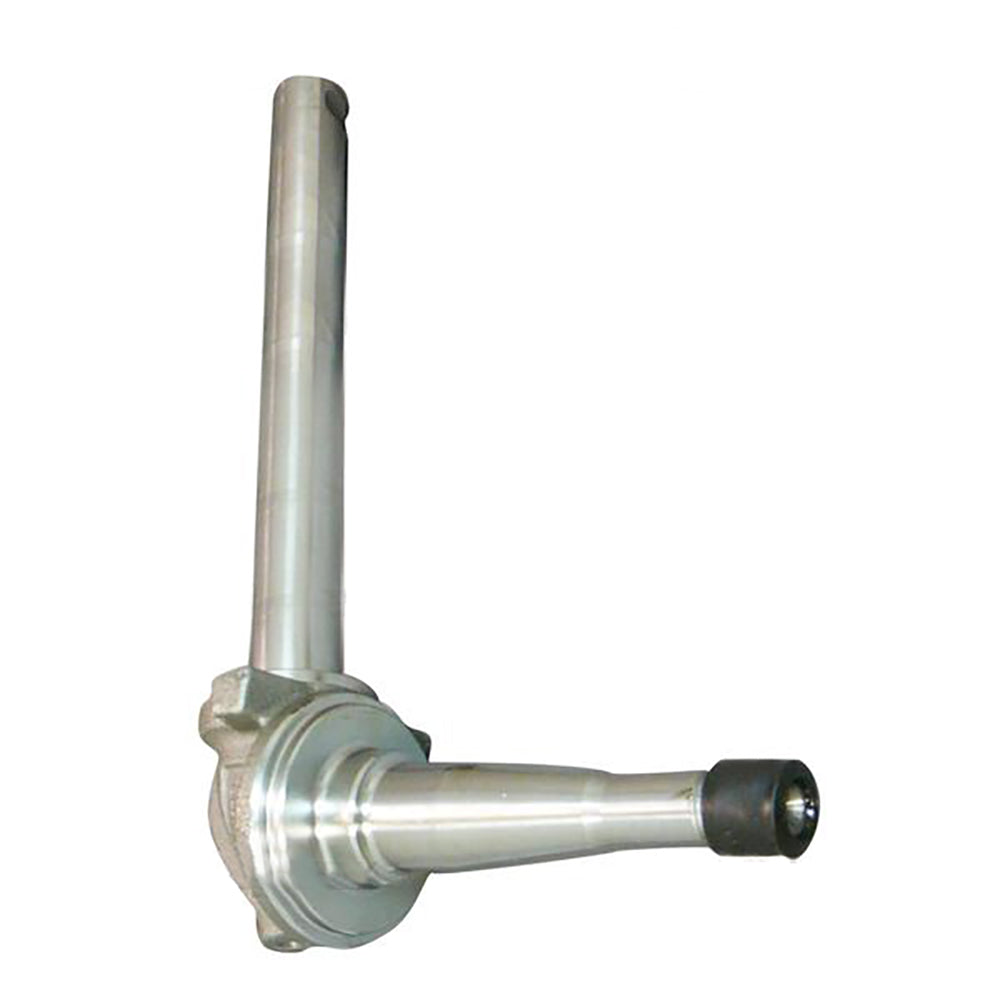

One New Aftermarket Replacement Left Hand (LH) Front Spindle Fits Ford/New Holland Tractors
This keyed left hand front wheel spindle fits the front axle assembly on Fits Ford and Fits Ford/New Holland tractors including the classic 8N, NAA (Jubilee), and 600/800 Series models. The spindle supports the front wheel hub and king pin, and is a direct replacement for worn or damaged original equipment spindles. Fits tractors with the standard manual steering front axle.
Specifications
- Type: Left Hand (LH), Keyed

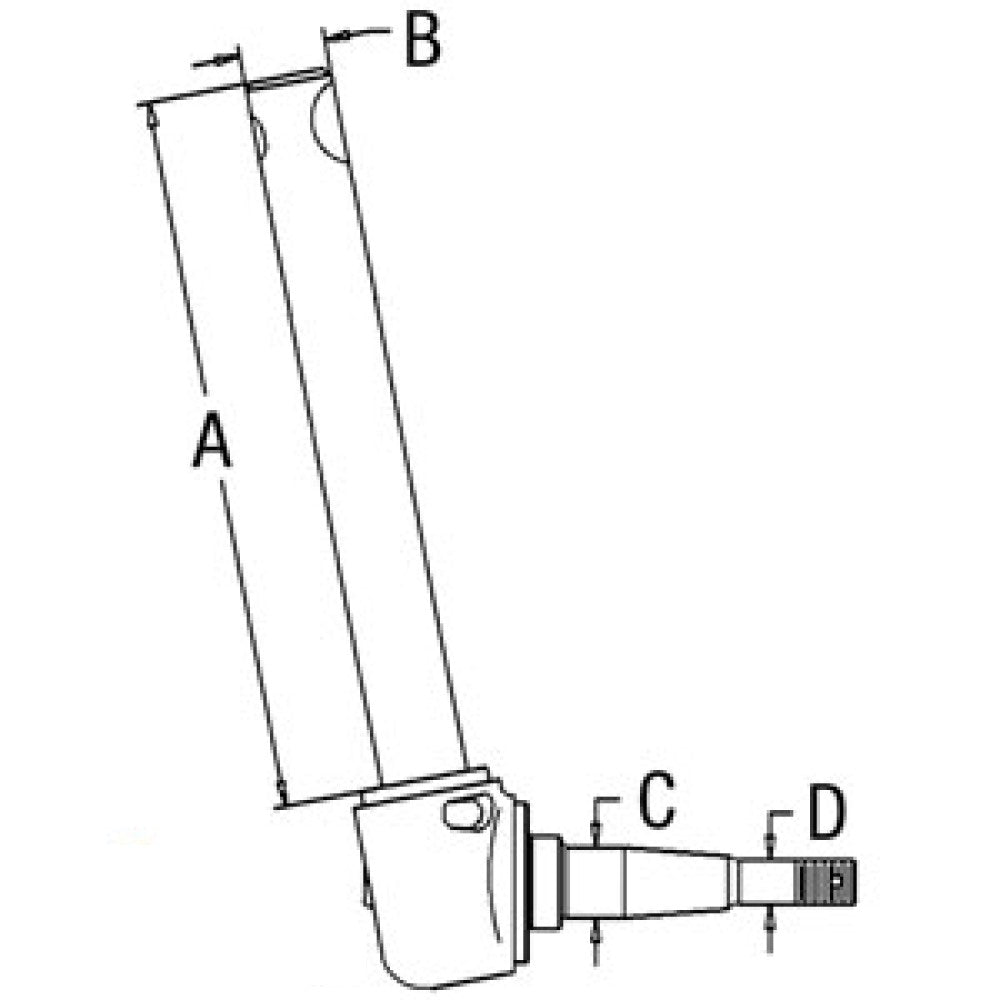

- Dimension A (Shaft Length): 10.750 in.
- Dimension B (Diameter): 1.250 in.
- Dimension C (Inner Bearing ID): 1.187 in.
- Dimension D (Outer Bearing OD): 0.750 in.
- Keyway: 1/4 in. x 3/4 in.
- King Pin Top Diameter: 1-11/16 in.
- King Pin Bottom Diameter: 1-1/8 in.
Compatible Models
Fits Ford/New Holland Tractors:
- 8N (1948-1952)
- NAA / Jubilee / NAB (1953-1954) - Manual Steering Front Axle
- 600 Series (1953-1954) - Manual Steering Front Axle
- 800 Series (1953-1954) - Manual Steering Front Axle
- 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660
- 2000, 2031, 2120, 2131
- 4000, 4031, 4120, 4131
Note: This spindle fits tractors equipped with the standard manual steering front axle. Verify front axle type before ordering.
Replaces Part Number(s):
8N3106B, 8N3106, F3NN3106AA, F3NN3106AA-A, 82850818, 83980355, HF8N3106B
Aftermarket Interchange Numbers
A533125, VPJ1022, 4856009, 10A51, S16006, 1104-4110
New aftermarket replacement part - not remanufactured, not used.
