747050M91 Piston Fits Massey Ferguson 283 290 294 383 390 Tractors
747050M91 Piston Fits Massey Ferguson 283 290 294 383 390 Tractors
Couldn't load pickup availability

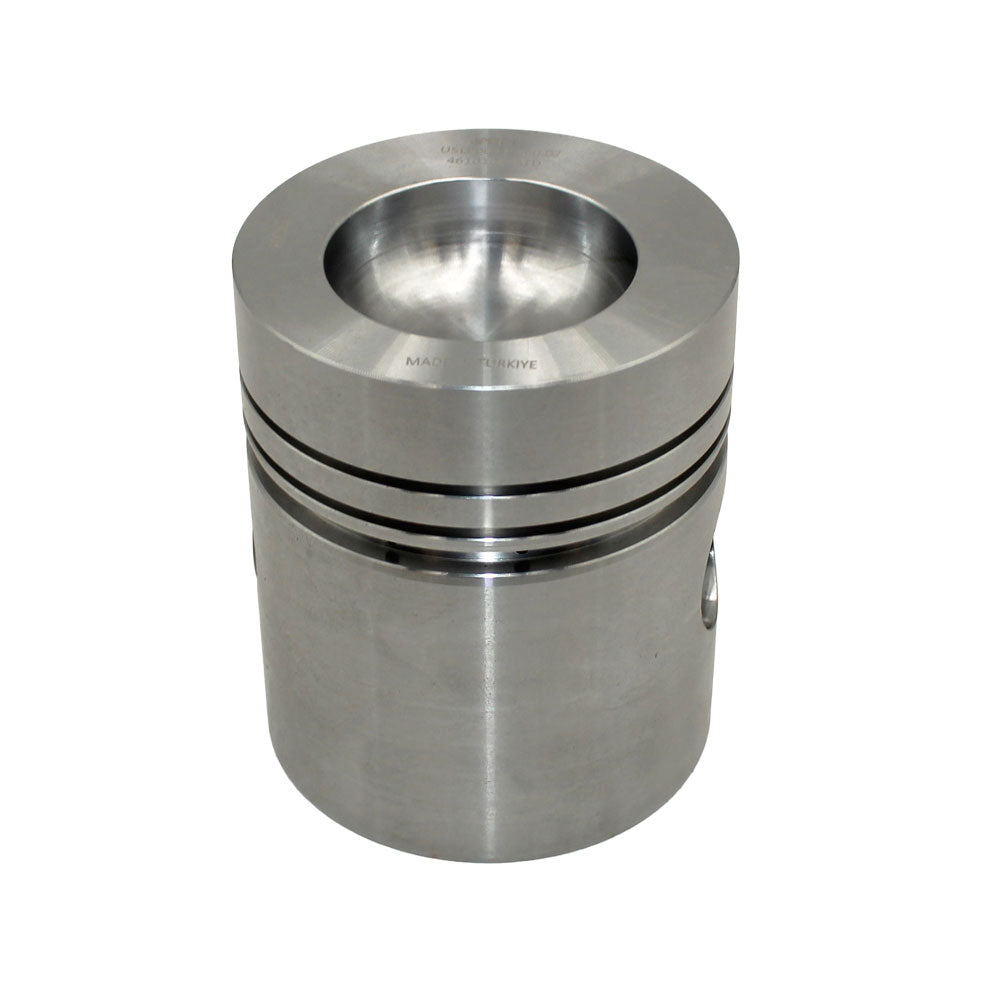

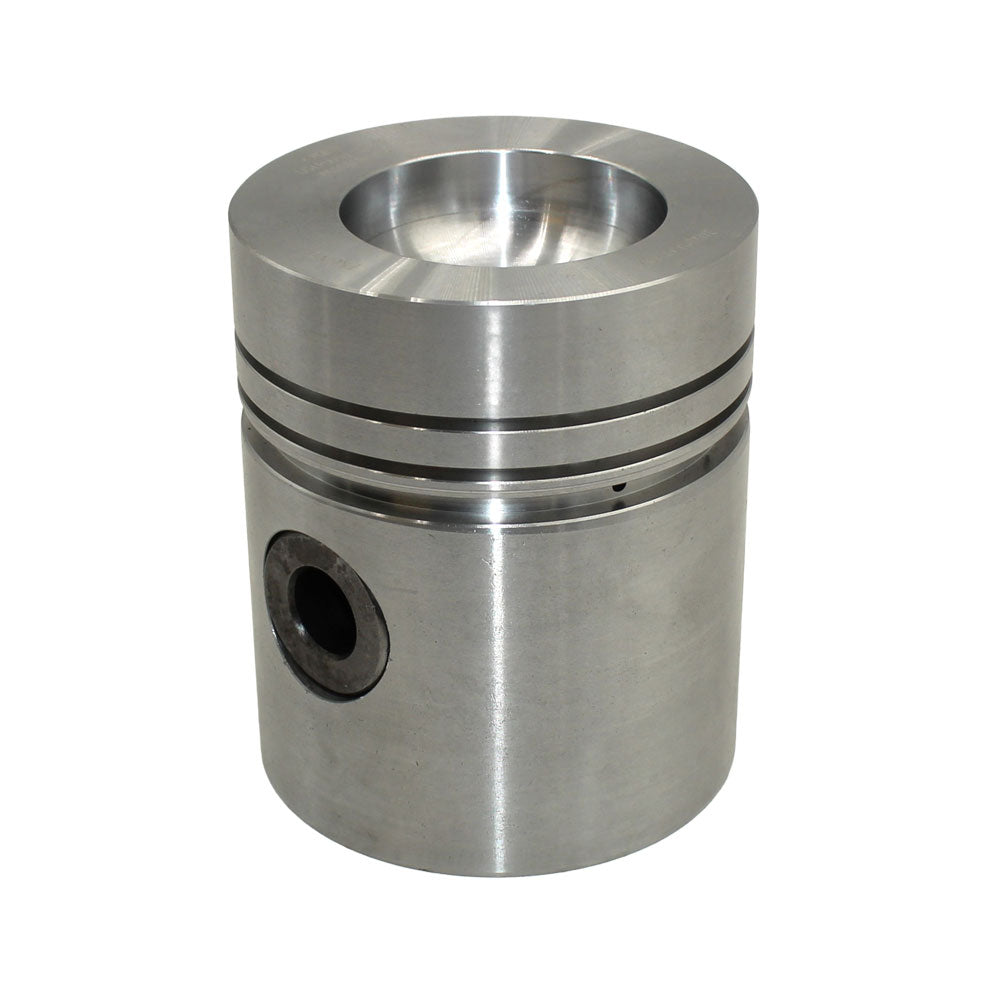

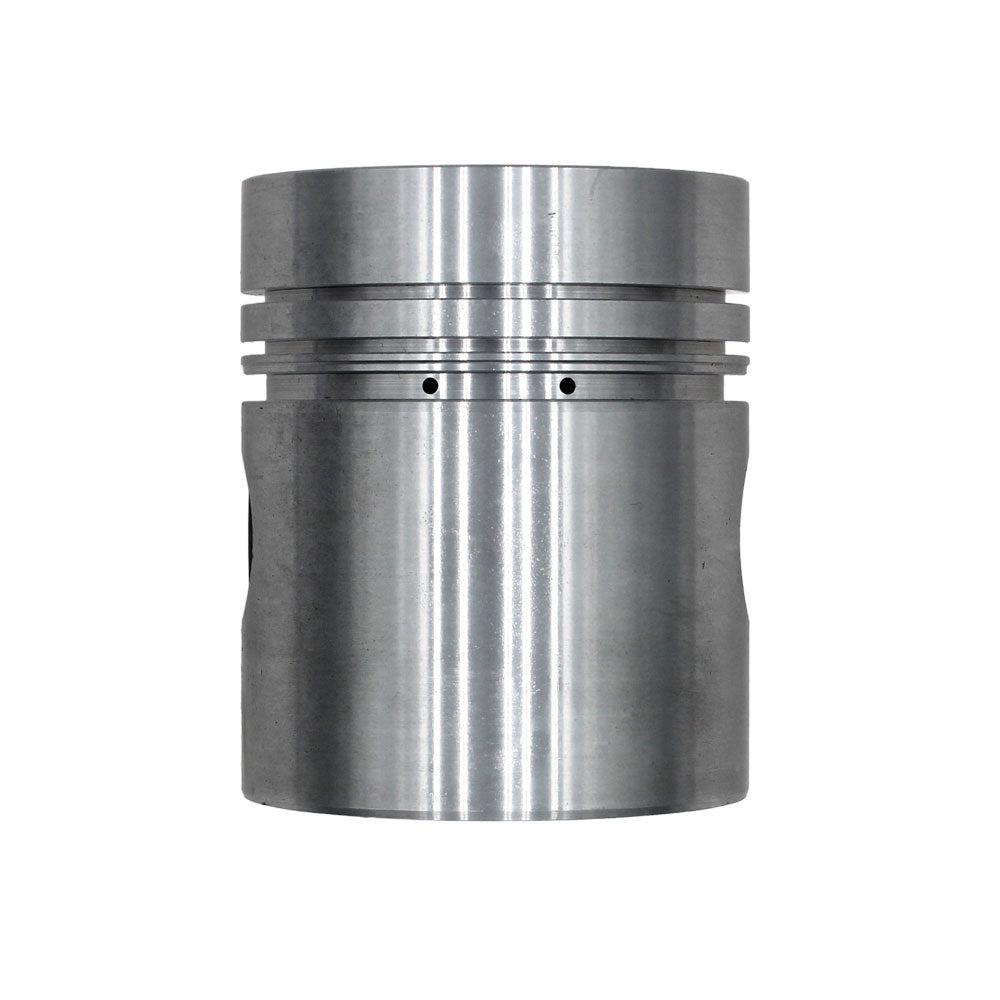

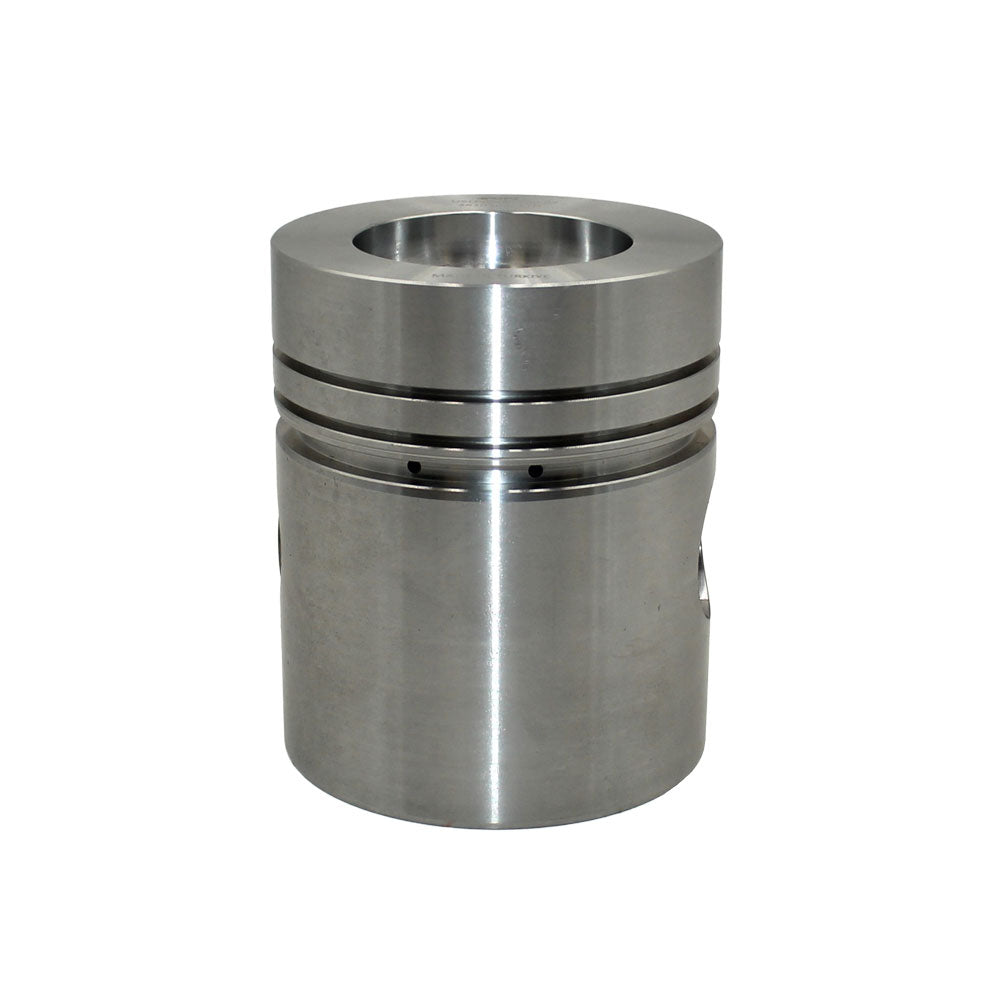

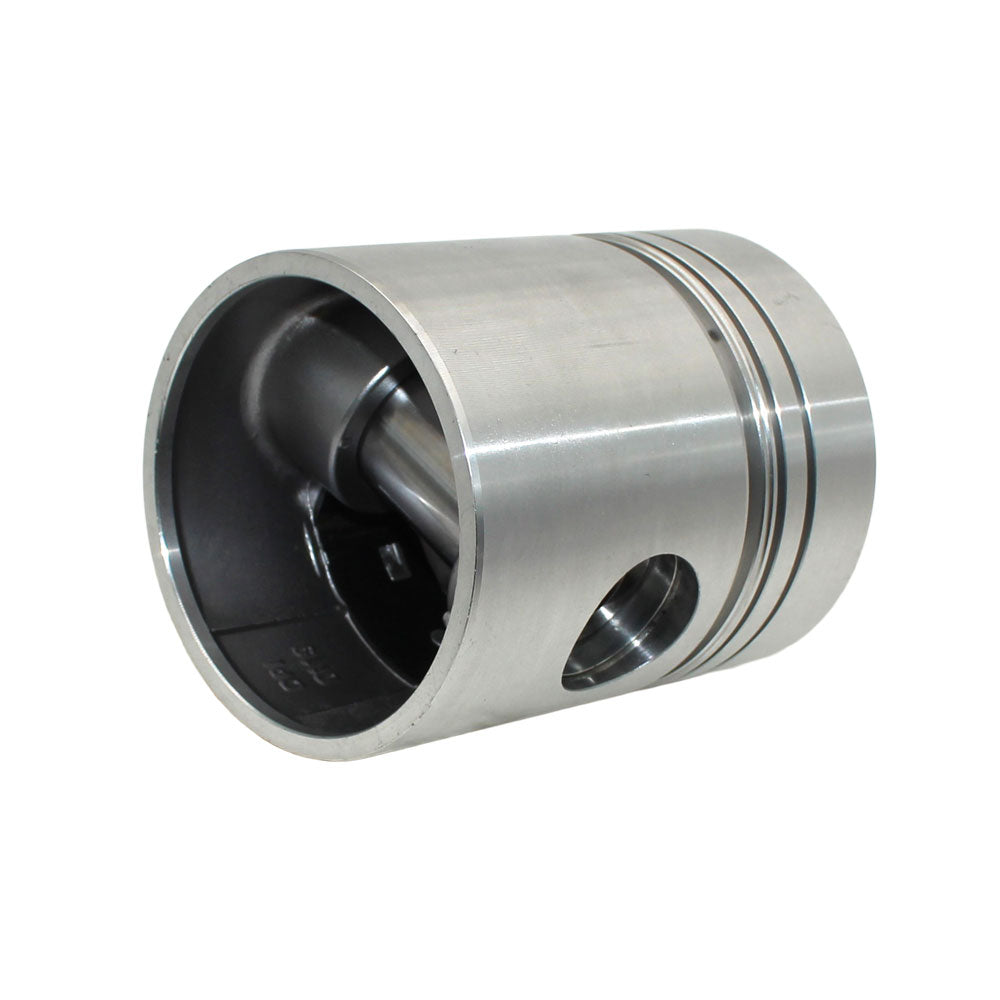

One New Aftermarket Replacement Standard 3-Ring Piston Fits Massey Ferguson Tractors with Perkins A4.248 Engine
This standard individual piston is a direct replacement Fits Massey Ferguson, Landini, and Perkins-engined tractors equipped with the Perkins A4.248 (and A4.236) four-cylinder diesel engine. Featuring a plain bowl, dish-top crown, and controlled-expansion design with three piston rings, it restores proper combustion and engine performance during overhaul or rebuild.
Specifications
- Piston Length: 121.00mm
- Compression Height: 70.50mm
- Bore Diameter: 101.6mm
- Bowl Depth: 20.92mm
- Chamber Diameter: 61.45mm
- Pin Diameter: 34.93mm
- Number of Rings: 3
- Size: Standard (STD)
- Crown Type: Dish Top / Plain Bowl
- Note: Controlled Expansion
Compatible Models
Fits Massey Ferguson (MF) Tractors: 20, 175, 178, 185, 188, 194, 275, 285 (FR), 285 US Built, 290, 290 US Built, 293, 294, 294-4, 294C, 382, 383, 387, 390, 390E Brazilian, 393, 393LX, 394, 394C, 396C, 396CF, 397, 430 UZEL, 50EX, 50H, 50HX, 590, 60H, 60HX, 690, 3060
Landini Tractors: 7860, 7870, 7880, 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880, Advantage 85, Fits Blizzard 85, C7800, C7830, C8860, Rex 85, Trekker 85
Perkins Engine: A4.248 (LF)
Replaces Part Number(s):
747050M91, 747 050M91, U5LP0009
Aftermarket Interchange Numbers
Perkins: U5LH0013, U5LL0031, 68811, 68813 | Sparex: S.41540
New aftermarket replacement part - not remanufactured, not used.
