Belt, Blades and Spindles Kit Fits Craftsman Replaces 7133156

Belt, Blades and Spindles Kit Fits Craftsman Replaces 7133156

$245.00 AUD
$245.00 AUD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Belt, Blades and Spindles Kit

Tech Info:

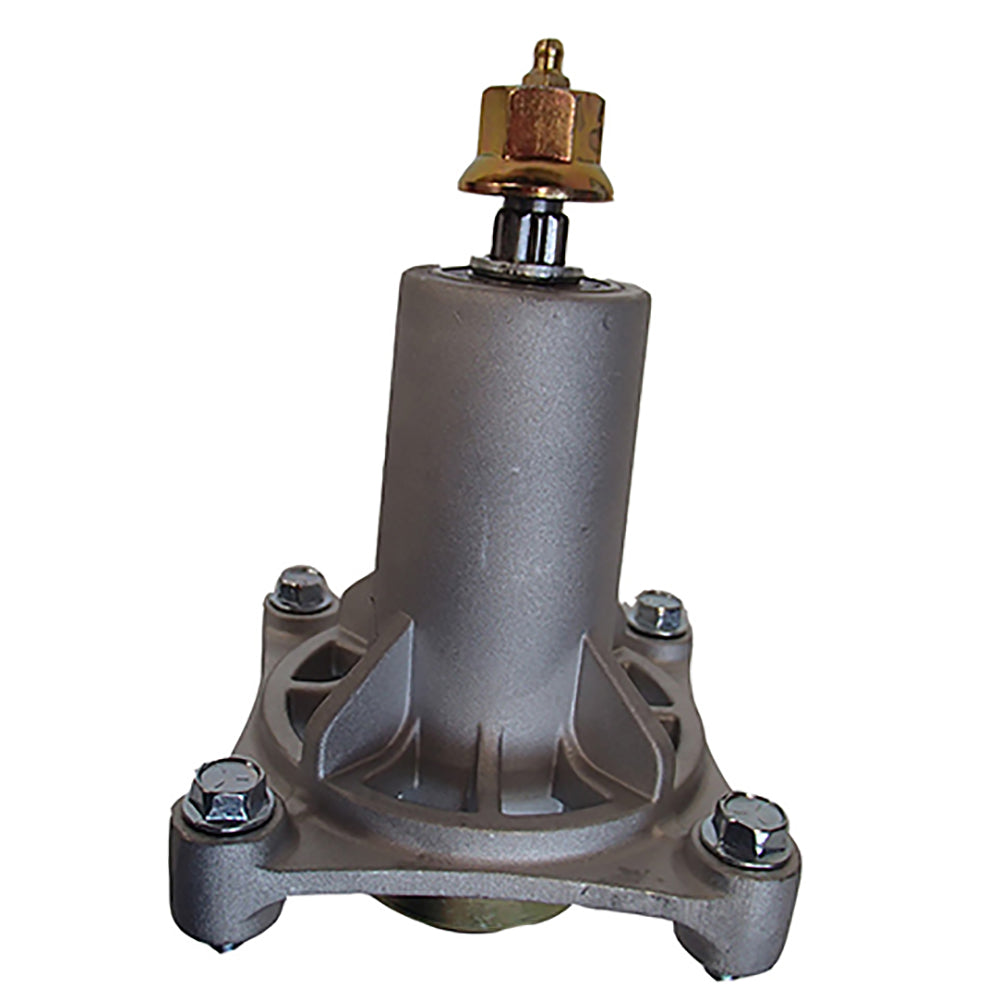

 -(2) Spindle Assemblies
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -Replaces Part Numbers: 192870, 532187281, 532187292, 532192870, 539112057
 -
 -Includes:
 -Pulley Locknut,
 -Blade Bolt/Washer,
 -Spacer,
 -4 Mounting Bolts
 -

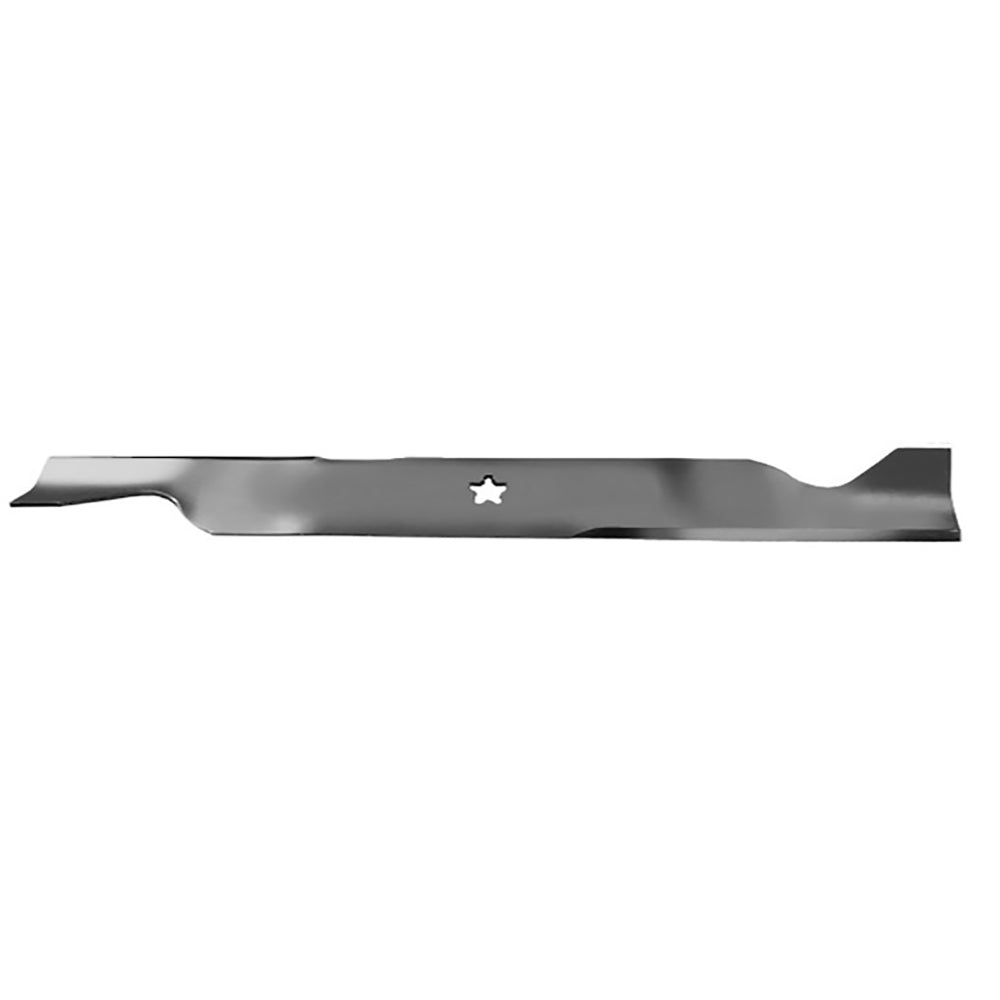

 -(2) Mower Blades
 -Length: 23"
 -Width: 2-3/4"
 -Thickness: 0.156"
 -Center Hole: 5 point star
 -Replaces Part Numbers: 2246LS, 2346XLS, YTH2146XP
 -
 -(1) Deck Belt
 -1/2" x 105.875"
 -Thickness: 0.35"
 -Made With Aramid Cord
 -Replaces Part Numbers: 532405143,584453101

Made to Fits Craftsman:
 Replaces Part Number(s): 7133156

Models This Part Fits:

46" Mower Decks, EZ17 968999502, GTH26K54 96043003101, LGTH24V54 96048006200, YTH24K54 (96045003300)

Additional Information:

(1) Deck Belt 1/2" x 105.875" Thickness: 0.35" Made With Aramid Cord Replaces Part Number(s): 21546607, 405143, 532405143 (2) Mower Blades Length: 22-7/8" Width: 2-3/4" Thickness: 0.156" Center Hole: 5 point star Replaces Part Number(s): 21546611, 405380, 40S380, 531309715, 594892801, 917532403107, 917532405380, 917777405380, 503405380, 532403107 (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut Blade Bolt/Washer Spacer 4 Mounting Bolts Replaces Part Number(s): 21546238, 21546299, 21549012, 187292, 532187281, 532187292, 587125401, 532192870, 539112057, 567253301, 587253301, 587819701, 587820301

Reference Numbers:

405143, 584453101, 403107, 405380, 40S380, 531309715, 532403107, 532405380, 594892801, 917532403107, 917532405380, 917777405380, 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 21546607, 584453101, 21546611, 532405380, 21546238, 21546299, 21549012, 532192870, 587819701, 532405143, 584453101, 403107, 503405380, 532403107, 532405380, 594892801, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301

Product Sub Group:

Deck Components
