5006-4 Double Breakaway Clamp Fits Pioneer Hydraulics
5006-4 Double Breakaway Clamp Fits Pioneer Hydraulics
Couldn't load pickup availability

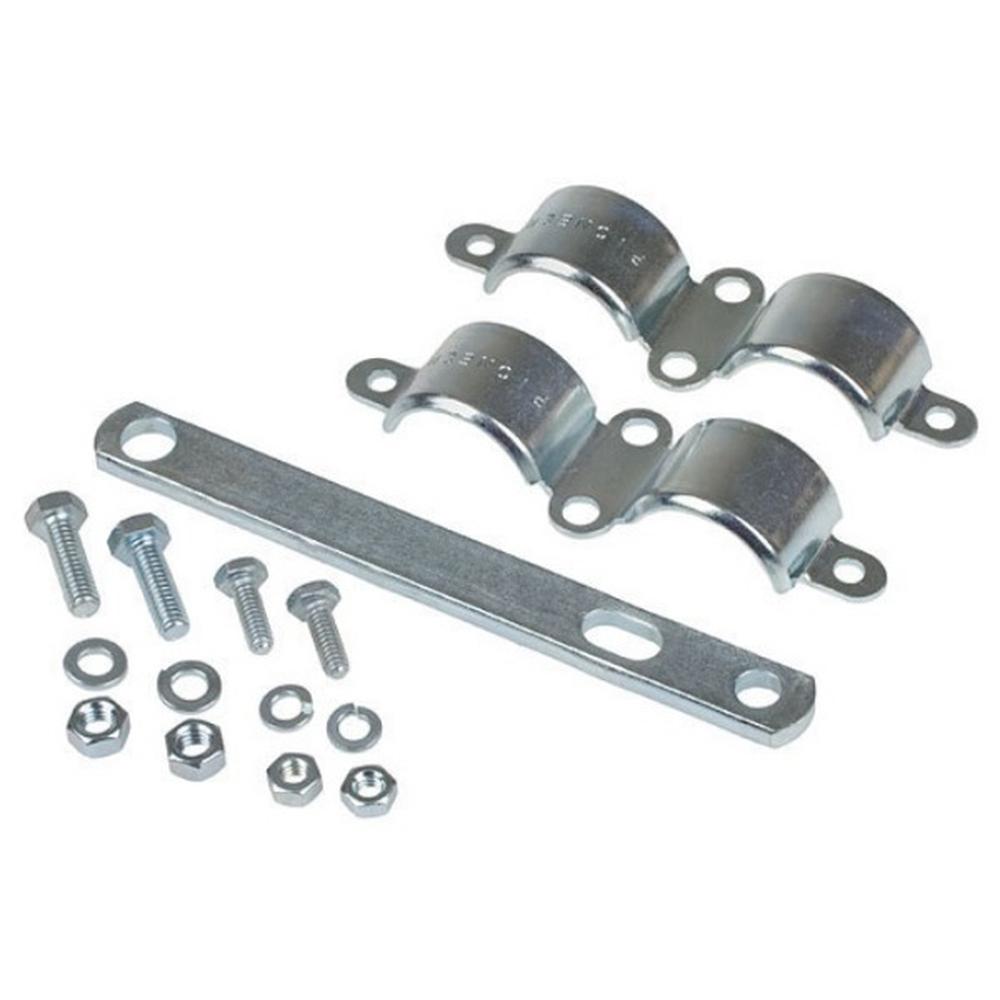

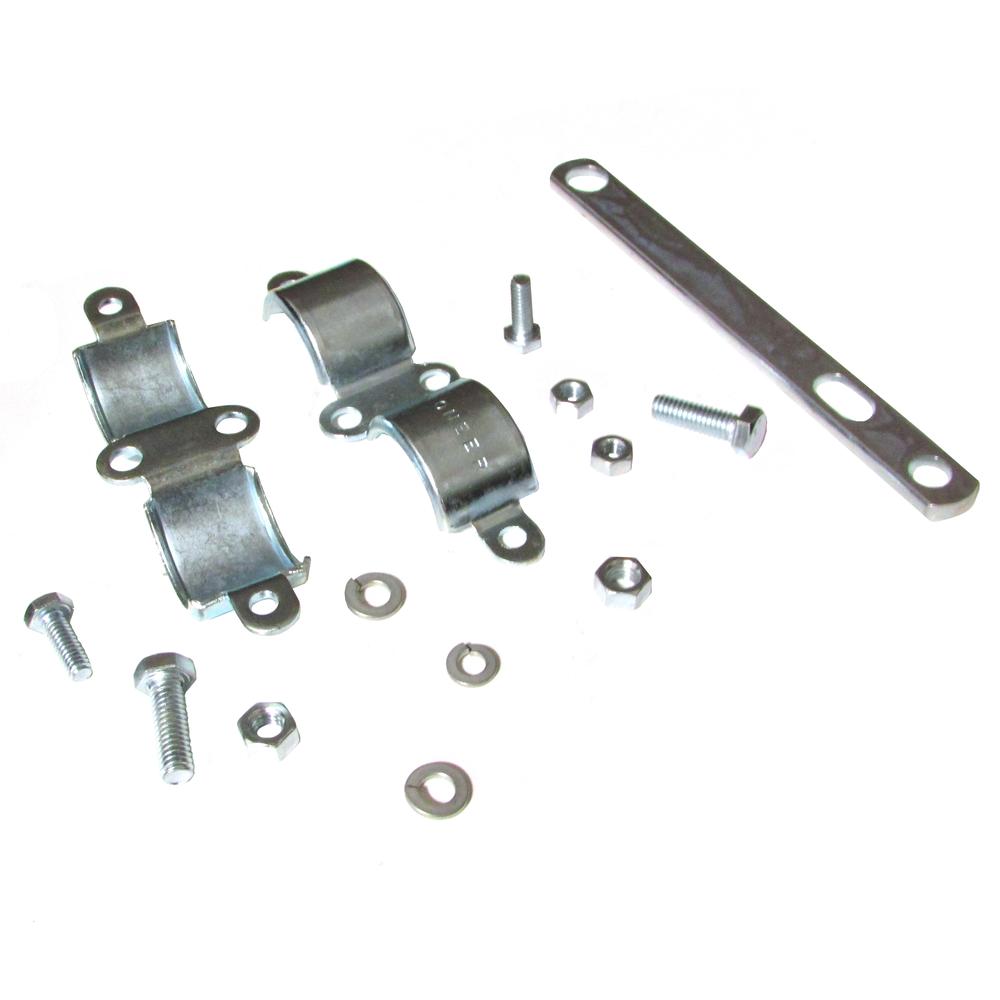

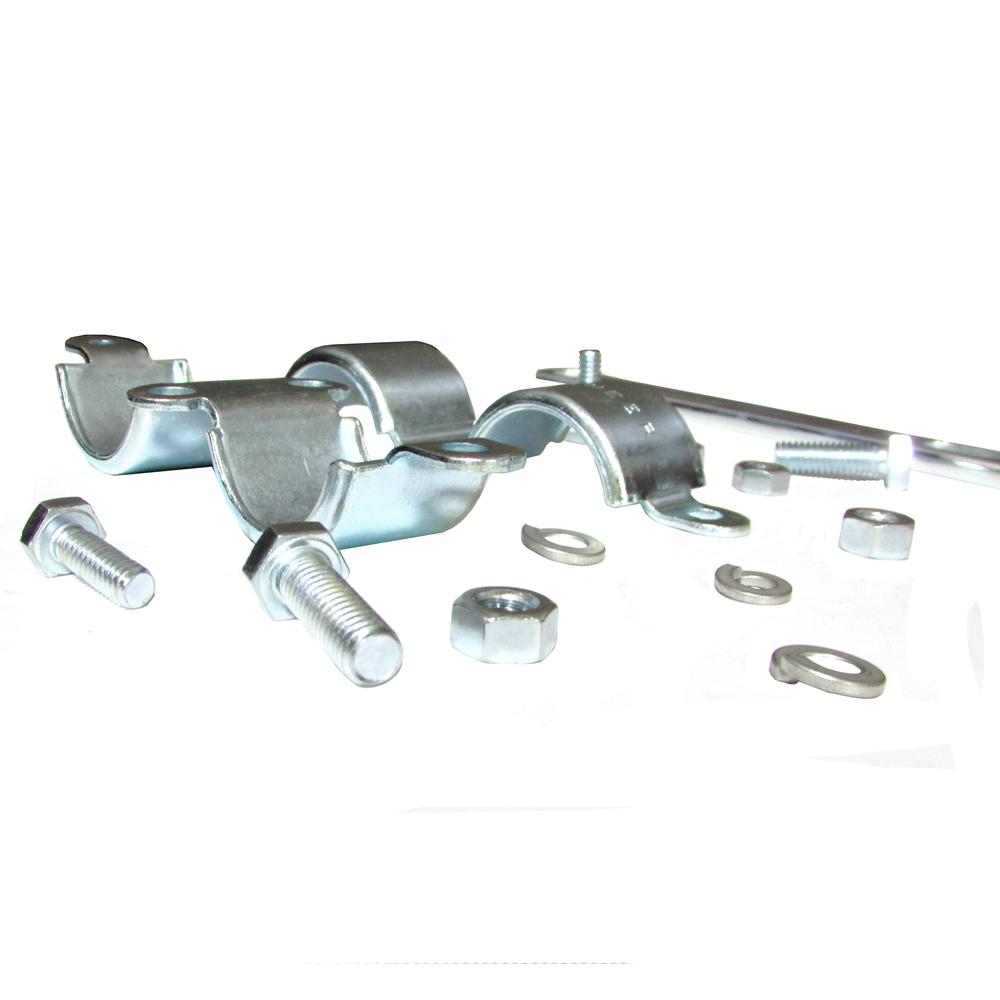

One New Aftermarket Replacement Double Breakaway Clamp for Pioneer Hydraulic Quick Couplings
This Pioneer (Parker Hannifin) double breakaway clamp is designed for use with 1/2" body size agricultural hydraulic quick couplings that have 1-1/2" diameter push-pull / double acting sleeves. When the coupler female bodies are properly installed in the clamp, the push-pull sleeve allows the coupler and male tip to automatically disconnect in a breakaway situation -- protecting against costly hose damage and hydraulic fluid spillage. Features heavy-duty zinc-plated yokes, braces, and hardware. Compatible with Pioneer 4200, 8200, and 8450 series couplers. Suitable for tractors, mobile farm equipment, and agricultural implement attachments requiring breakaway protection.
Specifications
- Coupler Body Size: 1/2"
- Sleeve Diameter: 1-1/2" push-pull / double acting
- Compatible Coupler Series: Pioneer 4200, 8200, 8450
- Construction: Zinc-plated yokes, braces, and hardware
- Style: Double clamp (holds two couplers)
Compatible Models
Pioneer (Parker Hannifin) Coupler Series: 4200, 8200, 8450
Massey Ferguson Tractors (general hydraulic coupler fitment): 2000, 3000, 4000, 5000, 600, 700, 800, 900
Replaces Part Number(s):
1900970M1, 1900970M91, 44A50064, 5006-4
New aftermarket replacement part - not remanufactured, not used.
