Magneto Tune Up Kit Fits Case/International Harvester Replaces 4012405C

$110.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

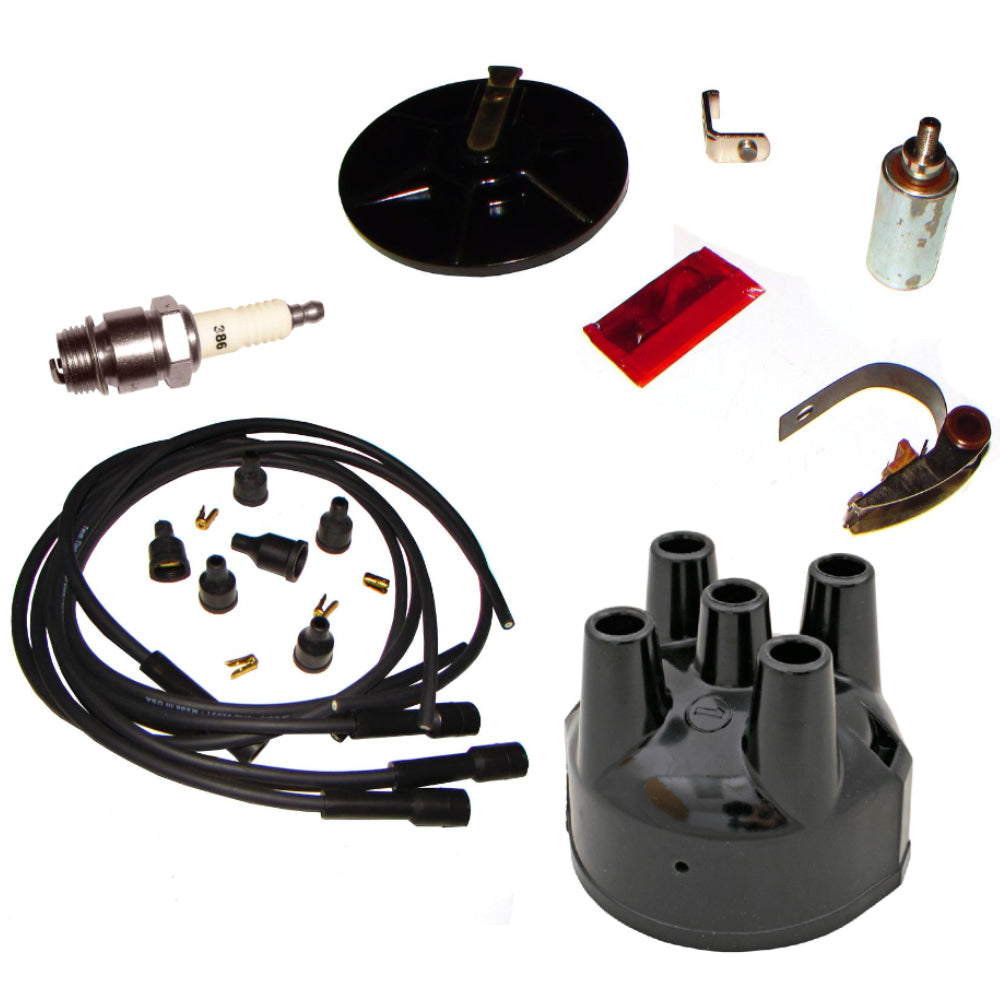

One New Aftermarket Magneto Tune Up Kit

Tech Info:
-Kit Contains:
-(1) Ignition Kit
-Contains:
-Points,
-Condensers &
-Rotors to service H-4 Magneto.
-
-Replaces Part Number(s): 407017R91, 407017R92
-
-(4) Spark Plugs
-Standard Info
-Thread Size: 18mm
-7/8" Hex Shoulder
-Hex Size: 13/16" (20.6mm)
-Reach: 12mm (.472")
-Seat Type: Gasket
-Gap: .028" (0.7mm)
-Heat Range: 2
-Terminal Type: Removable Nut
-Resistor: No
-Thread Pitch: 1.5mm
-Center Electrode
-Type: Standard
-Material: Nickel
-Size: 2.5mm
-Projection: Non-Projected
-Ground Electrode
-Type: Standard
-Material: Nickel
-
-Replaces Part Number(s):
-G44840, 4012405C
-
-(1) Distributor Cap
-Services H-4 Magneto
-Clip Style
-
-Replaces Part Number(s): 407017R91, 407017R92
-
-(1) Spark Plug Wiring Set (4 Cyl.)
-4 Cylinder
-
-(Non-tailored Straight Boot)

Made to Fit Case/International Harvester:
Tractor Models: A, 450, AV, 200, BN, SUPER C, M, 600, 230, C, SUPER H, HV, SUPER HV, O-6, 140, 574, SUPER W-4, 100, 580, 464, 400, 721, WD-6, I-4, SUPER A, SUPER M, 130, 350, T-6, OS-4, 300, SUPER MTA, H, 430, B, SUPER AV, W-4, SUPER W-6
Replaces Part Number(s): 407017R91, 407017R92, G44840, 4012405C, 407017R91, 407017R92

Models This Part Fits:

350, 230, I-4, 450, 580, SUPER W-6, 721, SUPER MTA, 300, B, 400, SUPER AV, T-6, H, 100, M, OS-4, HV, 464, SUPER A, 130, W-4, BN, 574, 140, 200, A, 600, SUPER H, SUPER HV, C, WD-6, AV, SUPER M, SUPER C, SUPER W-4, 430, O-6

Additional Information:

Kit Contains: (1) Ignition Kit Contains: Points, Condensers & Rotors to service H-4 Magneto. Replaces Part Number(s): 407017R91, 407017R92 (4) Spark Plugs Standard Info Thread Size: 18mm 7/8" Hex Shoulder Hex Size: 13/16" (20.6mm) Reach: 12mm (.472") Seat Type: Gasket Gap: .028" (0.7mm) Heat Range: 2 Terminal Type: Removable Nut Resistor: No Thread Pitch: 1.5mm Center Electrode Type: Standard Material: Nickel Size: 2.5mm Projection: Non-Projected Ground Electrode Type: Standard Material: Nickel Replaces Part Number(s): G44840, 4012405C (1) Distributor Cap Services H-4 Magneto Clip Style Replaces Part Number(s): 407017R91, 407017R92 (1) Spark Plug Wiring Set (4 Cyl.) 4 Cylinder (Non-tailored Straight Boot)
