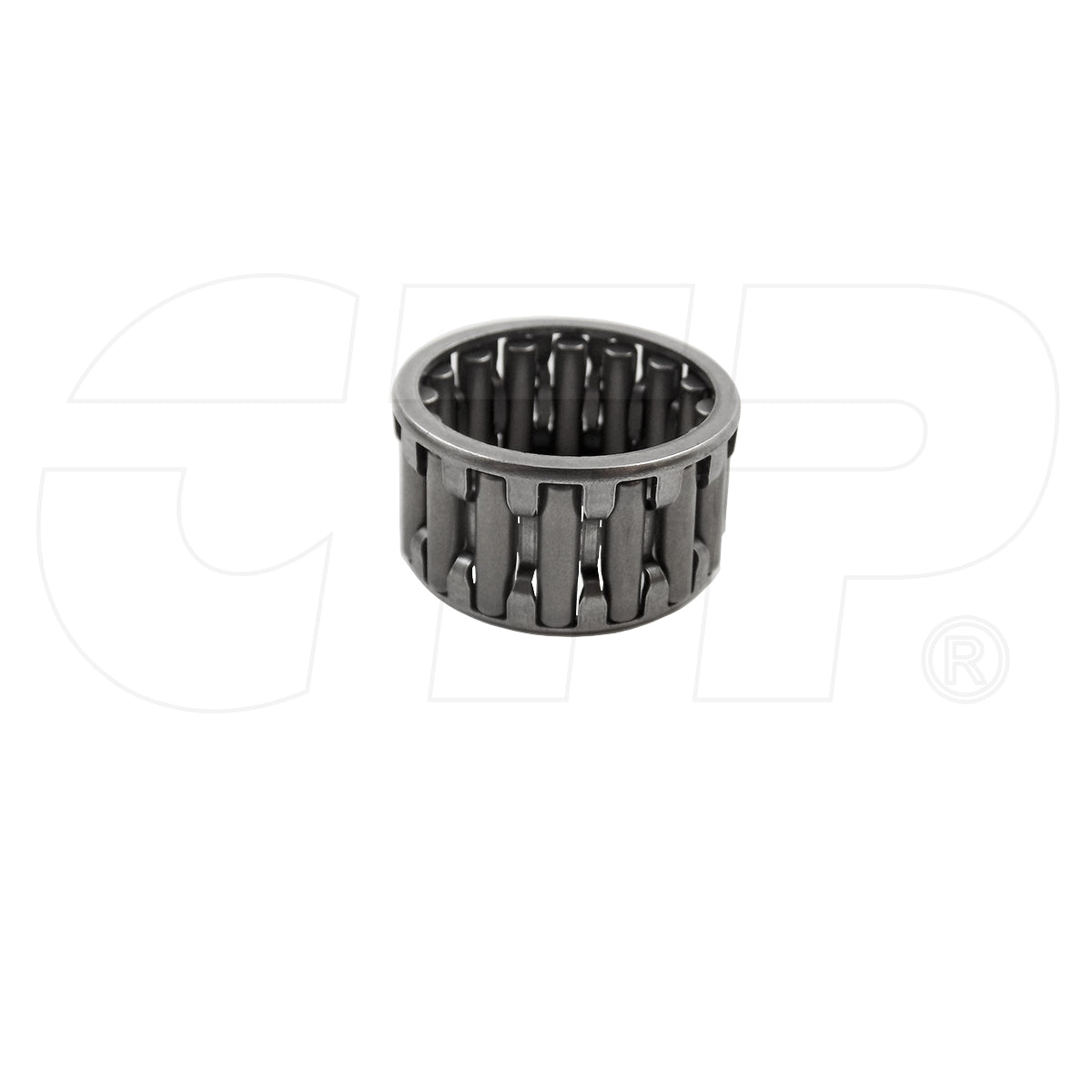

2S0669 Bearing Needle Fits Caterpillar Models

One New Aftermarket Replacement Needle Bearing for Caterpillar (Cat) Construction Equipment

This needle bearing (also cataloged as a journal roller bearing) is used in the planetary transmission on a wide range of Caterpillar (Cat) motor graders, scrapers, pipe layers, logging equipment, compactors, and articulated dump trucks. It is a precision-fit drivetrain component that provides low-friction rotational support within the planetary transmission assembly.

Specifications

• Part Type: Needle / Roller Journal Bearing
• Dimensions: 26.987 x 34.925 x 19.05 mm (approx. 2.76 x 2.36 x 1.97 in.)
• Internal Diameter (min.): 26.43 mm
• Material: Carburized Steel
• Weight: approx. 0.1 lbs.

Compatible Models

Caterpillar Motor Graders: 12G, 120G, 130G, 140G, 160G

Caterpillar Scrapers: 613C, 613C II, 613G, 621, 621B, 621E, 621F, 621G, 621H, 621K, 621R, 623, 623B, 623E, 623F, 623G, 623H, 623K, 623K LRC, 627B, 627E, 627F, 627G

Caterpillar Pipe Layers / Log Skidders: 518C, 528, 528B, 530B, 572G

Caterpillar Earthmoving Compactors: 815B, 815F, 815F II, 816F, 816F II

Caterpillar Articulated Dump Trucks: 725, 730

Caterpillar Engines (Machine): 3116, 3126

Replaces Part Number(s):

2S0669, 2S-0669, 2S669

Aftermarket Interchange Numbers

5M2056, 3807466

New aftermarket replacement part - not remanufactured, not used.
