291-2681 Stabilizer Cylinder L/H (side specific) L/H - In Seat Facing Front Load
291-2681 Stabilizer Cylinder L/H (side specific) L/H - In Seat Facing Front Load
Couldn't load pickup availability

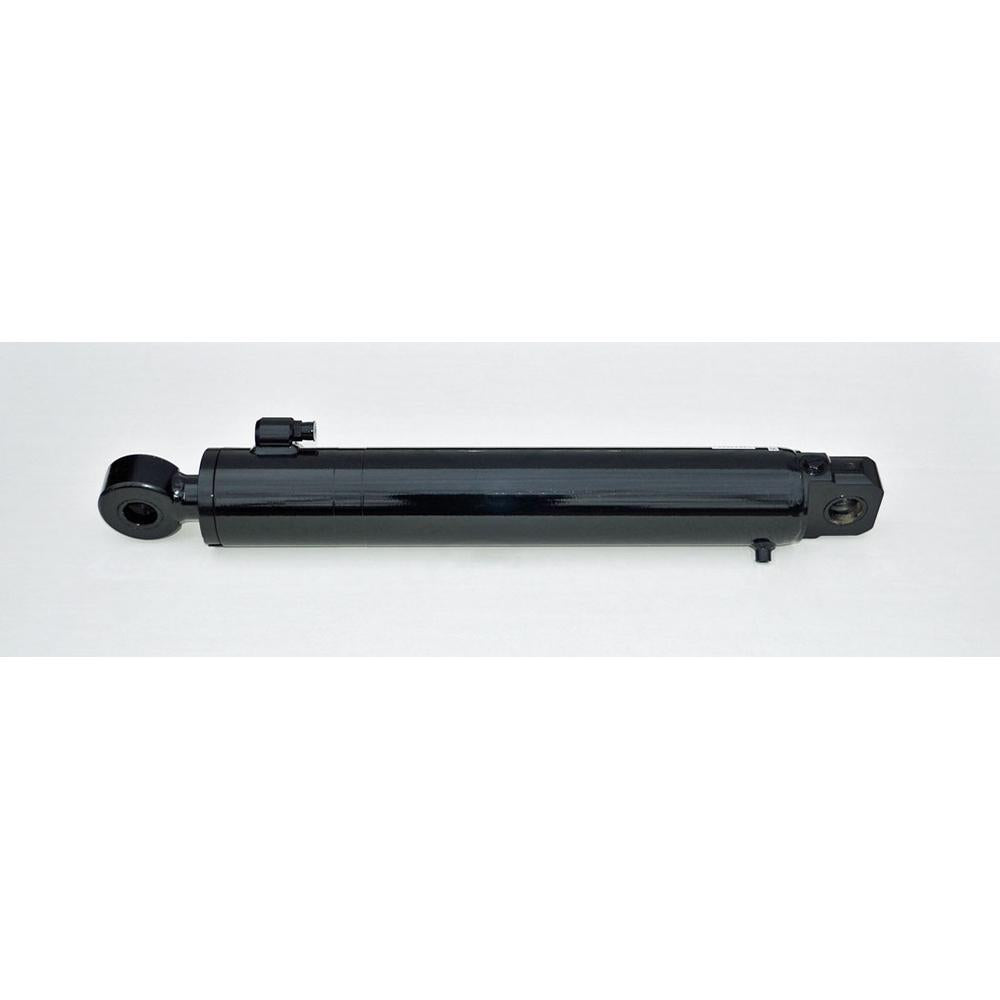

One New Aftermarket Replacement Left-Hand Stabilizer Cylinder Fits Caterpillar (Fits CAT) Backhoe Loaders
This left-hand (L/H) hydraulic stabilizer cylinder is a direct aftermarket replacement Fits Caterpillar (Fits CAT) backhoe loaders in the 415, 416, 420, and 430 series. The stabilizer cylinder extends and retracts the outrigger jackleg on the left side of the machine (left when seated facing forward), providing the ground support needed to safely lift and stabilize the machine during digging and trenching operations. Side-specific part -- this cylinder fits the LEFT side only. Do not use as a replacement for the right-hand cylinder.
Specifications
- Bore: 100mm
- Stroke: 541mm
- Rod Diameter: 55mm
- Side: Left-Hand (L/H) -- operator seated facing front load end
Compatible Models
Fits Caterpillar 415 Series: 415 (H8A), 415F2
Fits Caterpillar 416 Series: 416E, 416 (H8P, L8P, L9P, H9P), 416F, 416F2
Fits Caterpillar 420 Series: 420E, 420 (H8T, L8T, L9T, N2X, H9T), 420F, 420F2, 420XE
Fits Caterpillar 430 Series: 430E, 430 (H8W, L8W), 430F, 430F2
Replaces Part Number(s):
291-2681, 262-7049, 2627049, 1807484-LH
Aftermarket Interchange Numbers
604-9007
New aftermarket replacement part - not remanufactured, not used.
