2756706 Motor As-Blower Fits Caterpillar Models

One New Aftermarket Replacement Blower Motor Assembly for Caterpillar (Cat) Construction Equipment

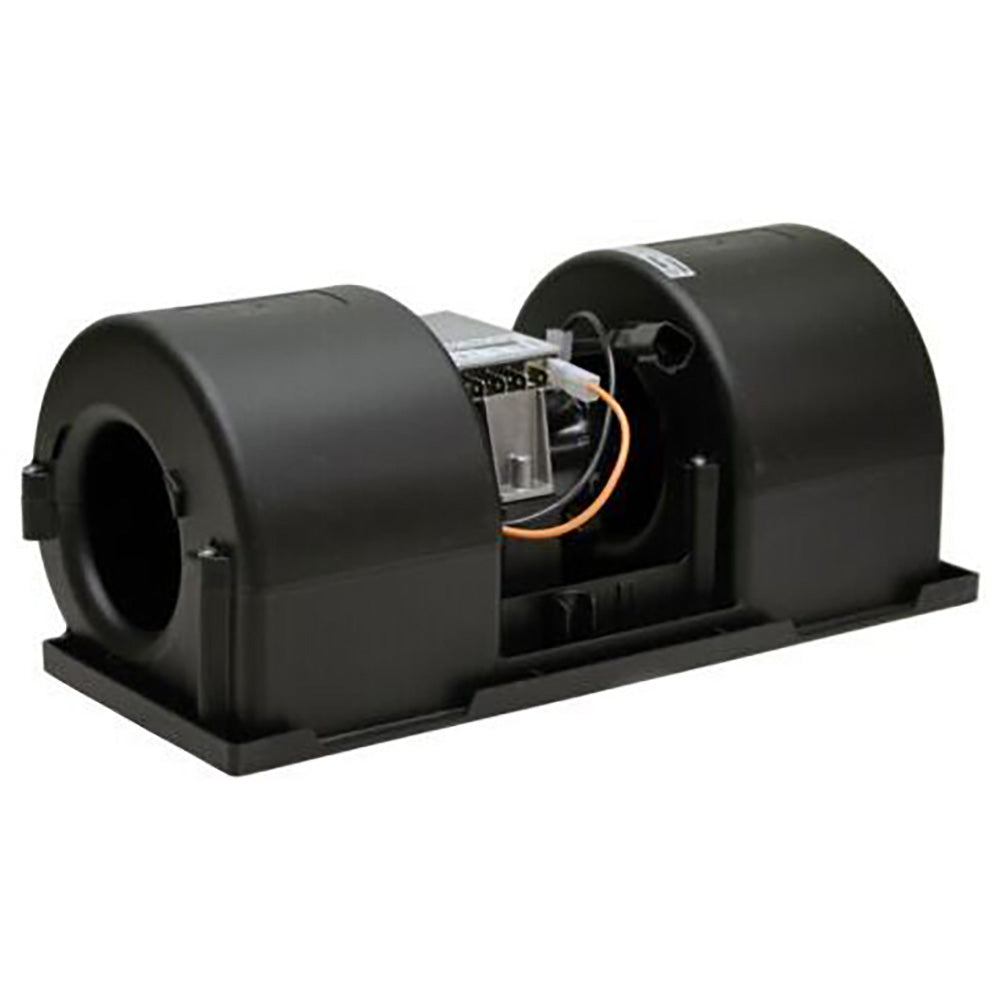

This 24-volt dual blower motor assembly (Motor As-Blower) is a direct replacement for Caterpillar OEM part 275-6706. It serves the cab operator station HVAC system, circulating air through the heating and air conditioning unit across a wide range of Cat wheel loaders, articulated trucks, track-type tractors, compactors, pipelayers, motor scrapers, and integrated tool carriers. The assembly uses a 2-wire single-speed Deutsch connector and mounts via a plenum housing base.

Specifications

• Voltage: 24V DC
• Configuration: Dual blower assembly, single speed
• Air Flow Output: 620 CFM
• Overall Height: 5-1/2"
• Overall Width: 6-1/2"
• Mounting Base Length: 13-13/16"
• Mounting Base Width: 5-3/8"
• Wire Type: 2-wire Deutsch connector
• Weight: approx. 6 lbs (2 kg)
• Operating Range: -20 degrees C to 80 degrees C
• Maximum Current: 14A

Compatible Models

Caterpillar Articulated Trucks: 725, 725C, 730, 730C, 730C2 EJ, 735, 735B, 735C, 735 OEM, 740, 740B, 740C, 745C

Caterpillar Off-Highway Trucks: 770, 770G, 770G OEM, 772, 772G, 772G OEM, 773E, 773GC, 777B, 777D, 777E

Caterpillar Wheel Loaders: 914G, 924G, 924GZ, 924H, 924HZ, 924K, 928G, 928H, 930G, 930K, 938G, 938G II, 938H, 938K, 950K, 962K, 966K, 966K XE, 972K, 980G II, 980H, 980K, 980K HLG

Caterpillar Compact Wheel Loader: 914G

Caterpillar Integrated Tool Carriers: IT14G, IT14G2, IT28G, IT38G, IT38G II, IT38H

Caterpillar Wheel Tractor-Scrapers: 613G, 621G, 623G, 627G, 631G, 637G, 657G

Caterpillar Track-Type Tractors (Dozers): D4, D5R2, D6GC, D6K, D6K LGP, D6K XL, D6K2, D6K2 LGP, D6N LGP, D6N XL, D6R, D6R III, D6R XL, D6T, D6T LGP, D6T LGPPAT, D6T XL, D6T XL PAT, D6T XW, D6T XW PAT, D7R, D7R II, D7R LGP, D7R XR, D8, D8 GC, D8GC, D8R, D8T

Caterpillar Pipelayers: 583T, 587R, 587T, PL61, PL72, PL83, PL87

Caterpillar Vibratory Compactors: CP-44, CP-54, CP-54B, CP-56, CP-56B, CP-64, CP-68B, CP-74, CP-74B, CP-76, CP-433E, CP-533E, CP-563E, CP-573E, CP-663E, CS-44, CS-54, CS-54B, CS-56, CS-56B, CS-64, CS-68B, CS-74, CS-74B, CS-76, CS-78B, CS-423E, CS-433E, CS-533E, CS-563E, CS-573E, CS-583E, CS-663E, CS-683E

Replaces Part Number(s):

2756706, 275-6706

Aftermarket Interchange Numbers

VMACS 50-1-0002, SPAL 014-BP76/LL-22, AirSource 39101, ECOCLIM 261B17, TruckAC+ T2500

New aftermarket replacement part - not remanufactured, not used.
