2724774 Mtr Gp-Ele Fits Caterpillar Models
2724774 Mtr Gp-Ele Fits Caterpillar Models
Couldn't load pickup availability

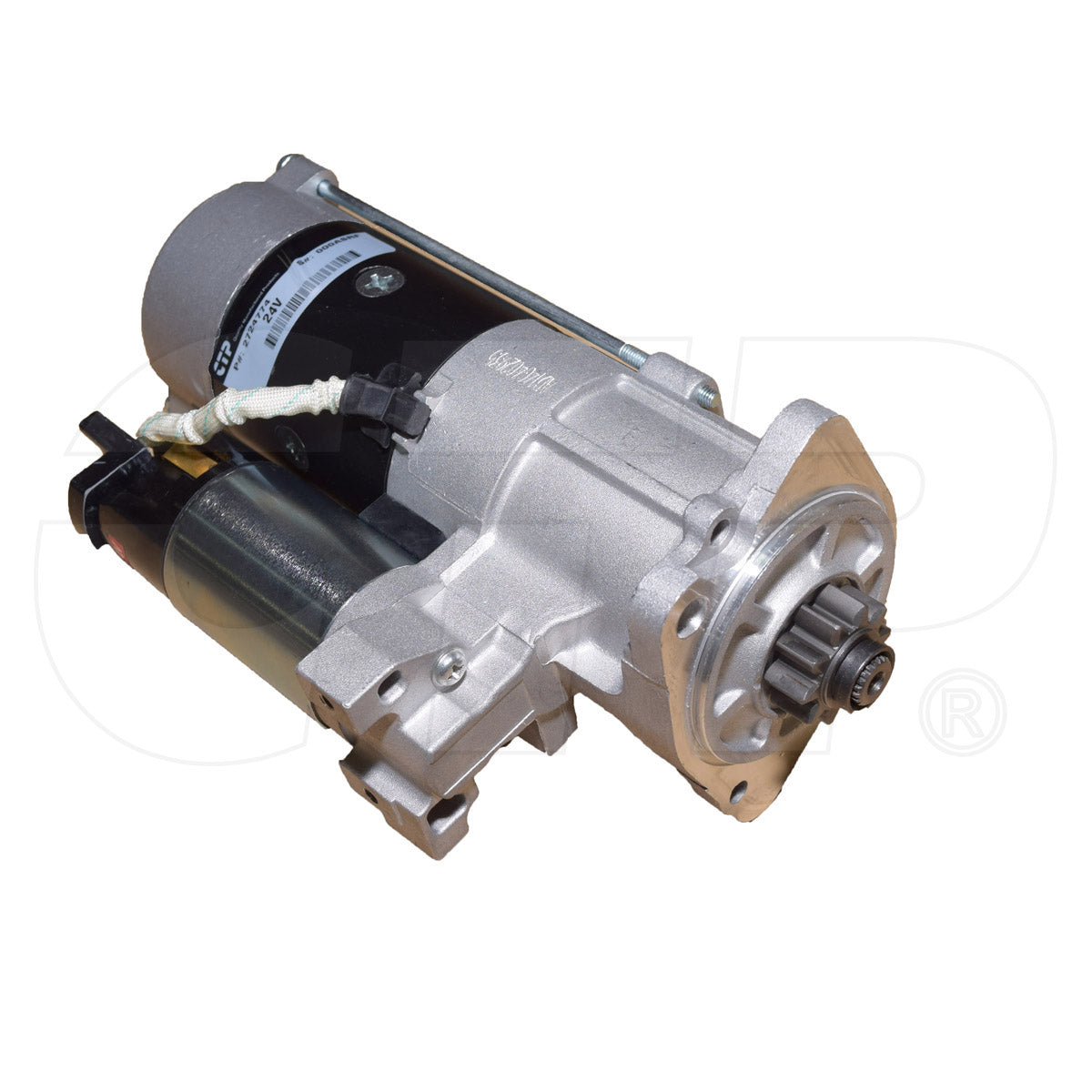

One New Aftermarket Replacement Electric Starter Motor Group for Caterpillar (Cat) Excavators
This electric starter motor group (Mtr Gp-Ele) is the engine starting component for Caterpillar compact and mid-size excavators powered by 3064, 3066, C4.2, C6, and C6.4 diesel engines. It mounts directly to the engine block and cranks the engine via a 10-tooth drive gear with clockwise rotation.
Specifications
- Voltage: 24V
- Power: 5.0 kW
- Drive Gear Teeth: 10
- Rotation: Clockwise
- Dimensions: 13.30 in L x 7.30 in W x 7.00 in H (338 mm x 185 mm x 178 mm)
- Weight: 16.8 lbs
Compatible Engines
Caterpillar: 3064, 3066, 3066T, C4.2, C6, C6.4
Compatible Models
Caterpillar Excavators: 311C, 311C U, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321C, 321D LCR, 323D L, 323D LN, 323D SA
Replaces Part Number(s):
2724774, 272-4774
Aftermarket Interchange Numbers
CA2724774, 10R7586, 1252988, 5695221, STR71252, 135236, DRS0339, M8T60871, M8T60872, M8T60873, 32B66-02102, 32B66-02302, 32B66-12500
New aftermarket replacement part - not remanufactured, not used.
