2506417 Flange Fits Caterpillar Models

One New Aftermarket Replacement Flange for Caterpillar (Cat) Excavators

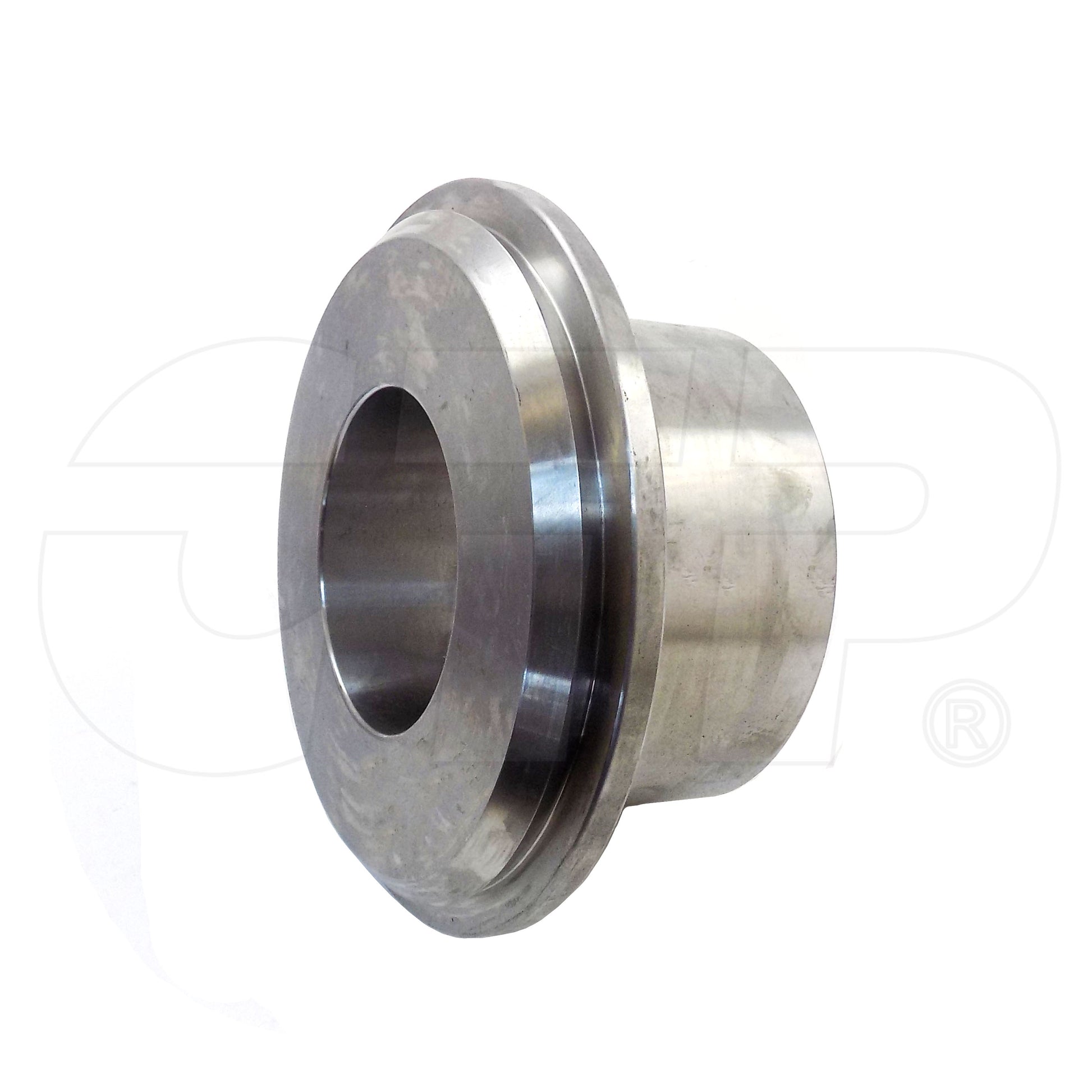

This aftermarket replacement flange (OEM part number 2506417) is a component of the bucket adjuster group on Caterpillar (Cat) hydraulic excavators. It serves as a critical attachment and alignment point within the bucket adjuster mechanism, securing components and ensuring reliable operation under heavy-duty construction and excavation loads. Also referenced as 250-6417 and CA2506417.

Specifications

• Type: Flanged Sleeve
• Material: Steel
• Flange Diameter: 11.02 in.
• Outside Diameter: 5.43 in.
• Inner Diameter: 3.55 in.
• Overall Length: 3.80 in.
• Weight: approx. 19.3 - 19.6 lbs.

Compatible Models

Caterpillar Excavators (320 / 323 / 324 / 325 / 326 / 328 / 329 / 330 / 333 / 335 / 336 Series): 320, 320 GC, 320D, 320D L, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 323, 323D L, 323D LN, 323D S, 323D SA, 323D2, 323D2 L, 323F L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325, 325D, 325D L, 325F, 326, 326 GC, 326D L, 326D2, 326D2 L, 326F, 326F L, 326F LN, 326GC, 328D LCR, 329D, 329D L, 329D LN, 329D2, 329D2 L, 329E, 329E L, 329E LN, 329F L, 330, 330 GC, 330D L, 330D2, 330D2 L, 330F, 330F L, 330F LN, 330GC, 333 GC, 335, 335F, 335F LCR, 336D L

Caterpillar Mobile Hydraulic Power Units: 324D LN, 325D, 325D L, 329D L

Replaces Part Number(s):

2506417

Aftermarket Interchange Numbers

250-6417, CA2506417

New aftermarket replacement part - not remanufactured, not used.
