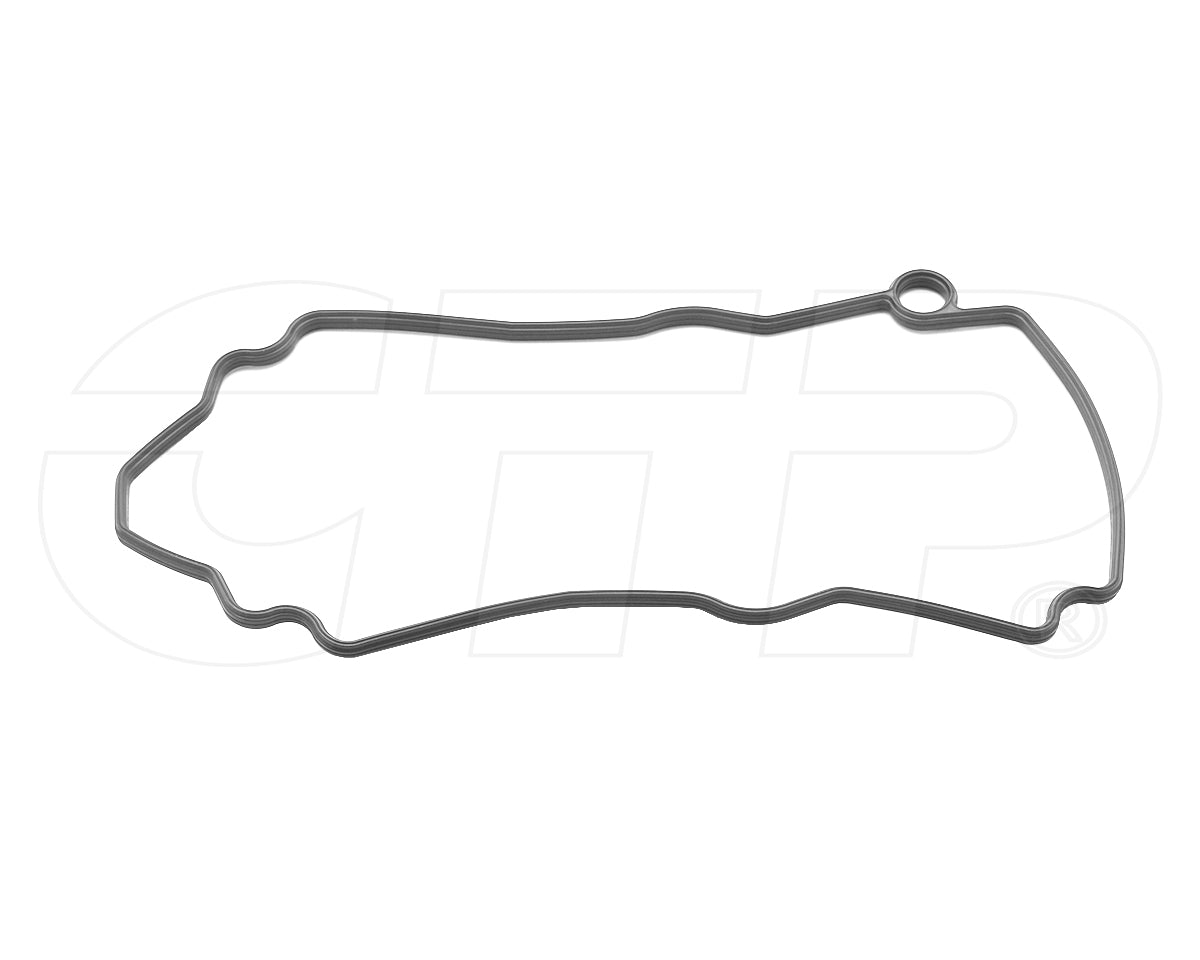

2407032 Seal Fits Caterpillar Models

One New Aftermarket Replacement Rocker Base Press-in-Place Seal for Caterpillar (Cat) 3500 Series Engines

This aftermarket replacement seal (Cat part number 240-7032 / 2407032) is a rocker base press-in-place (PIP) seal used in Caterpillar 3500 series engines, including generator set applications. It seats at the rocker base to prevent oil leakage and ingress of contaminants, helping maintain engine reliability and extend service intervals.

Specifications

• Type: Press-in-Place (PIP) Seal
• Location: Rocker Base
• Material: FKM (fluoroelastomer) - resistant to fuel, oil, and lubricants; rated -40 to 150C service temperature
• Cross Section Height: 0.29 in.
• Cross Section Width: 0.16 in.
• Overall Dimensions (approx.): 10.03 x 10.03 x 0.39 in.
• Weight: 0.2 lbs.

Compatible Models

Caterpillar 3500 Series Engines / Generator Sets: 3508, 3508B, 3512, 3512B, 3512C, 3516, 3516B, 3524B - including prefix variants such as 7RN-3516B, 6WN-3512B, 8RM-3512B, 6PN-3508B, 2HW-3508B, 4GM-3508B, 4AW-3512B, 6HN-3516B, 5KW-3508B, BPJ-3516B, 5AW-3512B, 2JW-3516B, 6GW-3512B, BLF-3512B, CMC-3512B, FDN-3516B, BLM-PM3508, BPD-PM3516, PPS-PP3516, 1NW-3516B, CNB-3508B, PTN-3508B, BGX-3508, BRK-3512B, FDE-3512B, PTF-3512B, PTM-3512B, 8NW-3516B, BMB-3516B, FDX-3516B

Replaces Part Number(s):

2407032, 240-7032

Aftermarket Interchange Numbers

Interstate-McBee: M-2407032

New aftermarket replacement part - not remanufactured, not used.
