2040910 Fan As Fits Caterpillar Models
2040910 Fan As Fits Caterpillar Models
Regular price
$213.00 AUD
Regular price
Sale price
$213.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

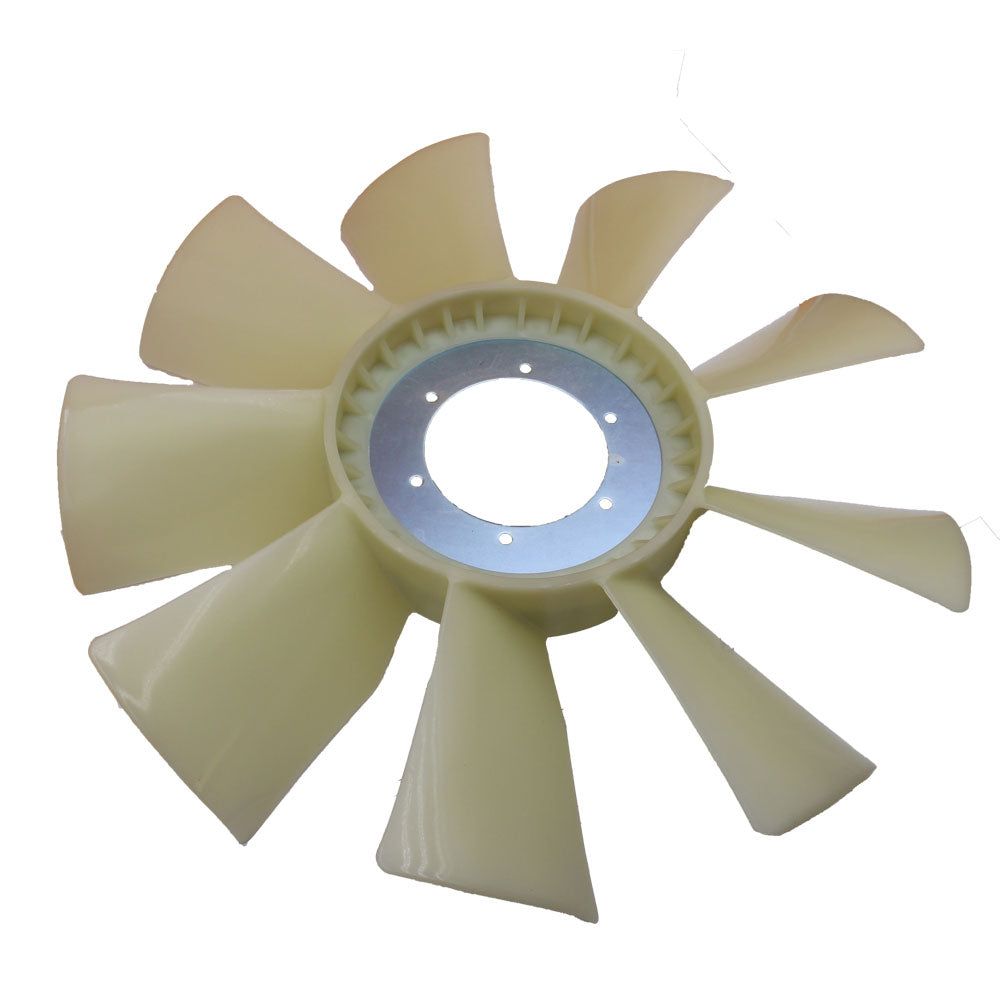

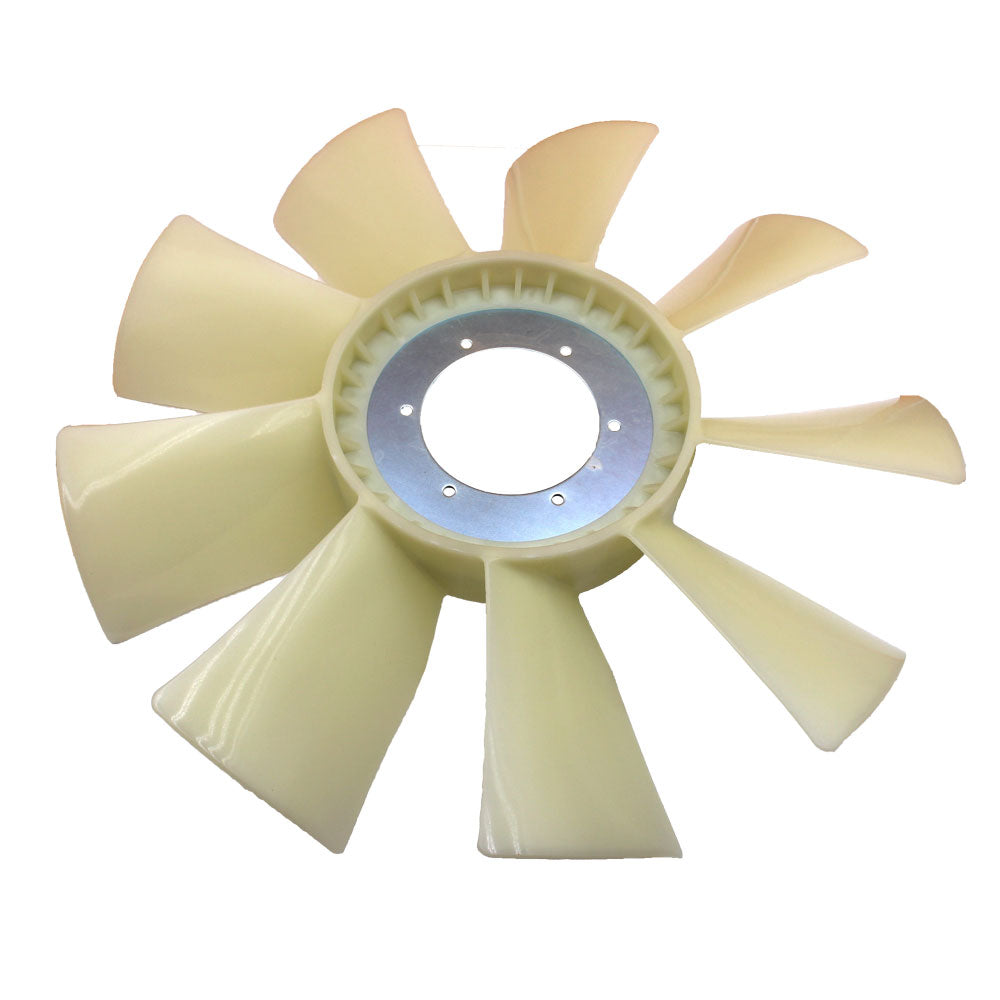

One New Aftermarket Replacement Fan Assembly for Caterpillar (Cat) Hydraulic Excavators
This 9-blade suction-type engine cooling fan assembly (Fan As) mounts to the radiator cooling system on Caterpillar C-Series hydraulic excavators powered by the 3066 and C-9 engines. Replaces OEM part number 2040910 (also formatted as 204-0910).
Specifications
- Number of Blades: 9
- Type: Suction
- Outer Diameter (OD): 720 mm
- Pilot Hole Diameter: 145 mm
- Bolt Circle Diameter: 170 mm
- Number of Pitch Holes: 6
- Pitch Circle Hole Diameter: 9 mm
- Hub Thickness: 14.07 mm
- Blade Width: 95 mm
- Weight: Approx. 9.6 lbs (4.32 kg)
Compatible Models
Caterpillar C-Series Hydraulic Excavators: 318C, 319C, 320C, 320C FM, 320C L, 320C LN, 320C LRR, 320C S, 320C U, 320C LU, 321C, 321C LCR, 330C, 330C FM, 330C L, 330C LN, 330C MH
Compatible engines: Caterpillar 3066, C-9
Replaces Part Number(s):
2040910, 204-0910
Aftermarket Interchange Numbers
CA2040910
New aftermarket replacement part - not remanufactured, not used.
