203-979-6831 Compressor Fits Komatsu Models
203-979-6831 Compressor Fits Komatsu Models
Couldn't load pickup availability

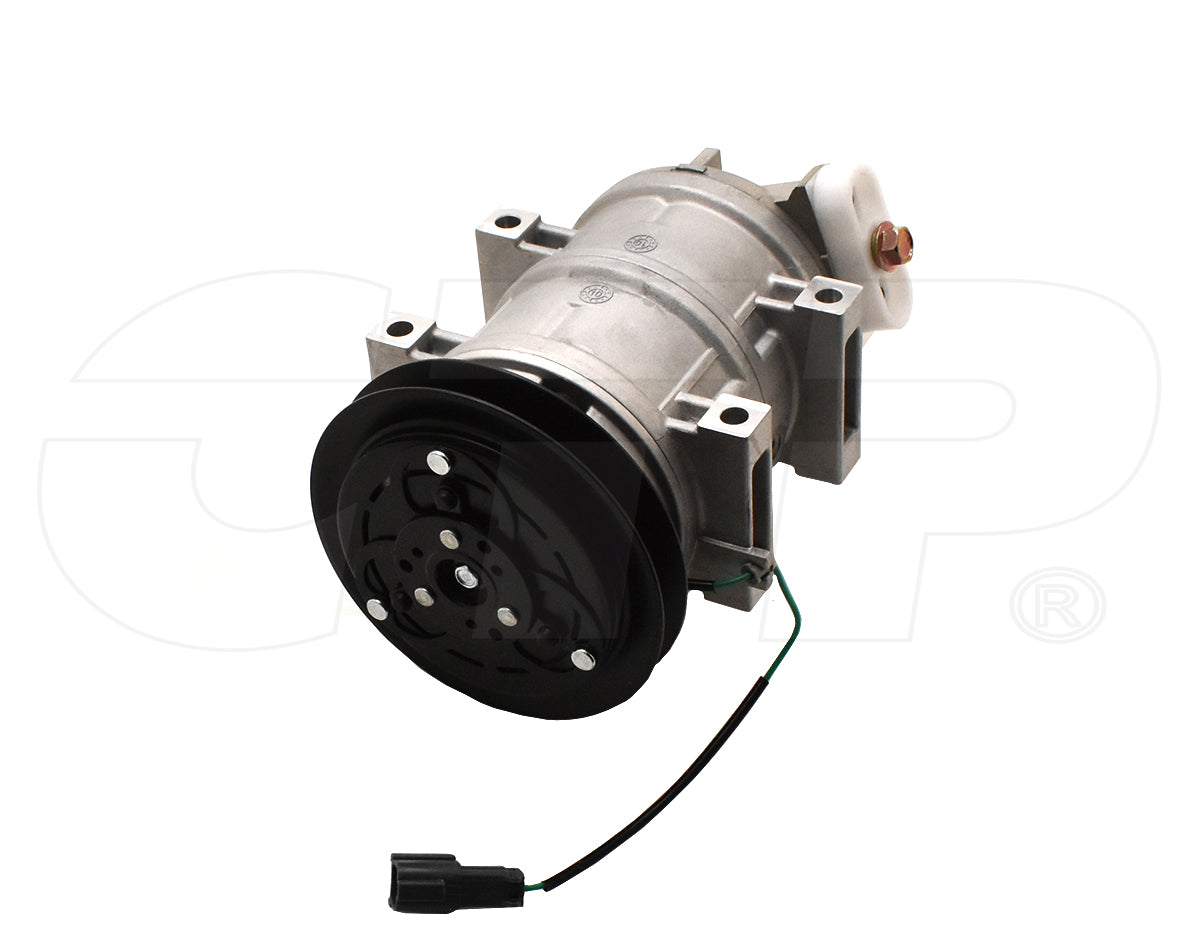

One New Aftermarket Replacement A/C Compressor for Komatsu (Komatsu) Excavators
This aftermarket replacement air conditioning (A/C) compressor is a direct-fit replacement for Komatsu excavators equipped with the Zexel/Valeo DKS15CH compressor. It serves the cab climate control system and mounts directly to the engine bracket using a splined shaft drive and single-bolt pad fitting. Refrigerant type is R134a.
Specifications
- Compressor Model: DKS15CH
- Voltage: 24V
- Clutch Diameter: 138-139mm (approx. 5.4 in.)
- Number of Grooves: 1
- Belt Type: 5/8 in.
- Cylinders: 6
- Mounting Type: Direct mount
- Fitting Style: Top pad, single bolt at 11 o'clock position
- Shaft Type: Splined
- Oil Type: PAG100
- Refrigerant Type: R134a
- A-B Distance: 2-1/4 in.
Compatible Models
Komatsu Excavators: PC100-6, PC120, PC120-6, PC120LC-6E0, PC130-6, PC200LC-6Z, PC210, PC220-6Z, PC220LC-6Z, PC300, PC300-6, PC300LC-6, PC300LC-6LE, PC350, PC350LC-6, PC400, PC400-6Z, PC400LC-6LK, PC400LC-7, PC450-6Z
Replaces Part Number(s):
203-979-6831, 2039796831, 203-979-6830, 2039796830, ND506011, 506011-7441, 5060117441
Aftermarket Interchange Numbers
5851, 506011-6800, 5060116800, 50601171441F
New aftermarket replacement part - not remanufactured, not used.
