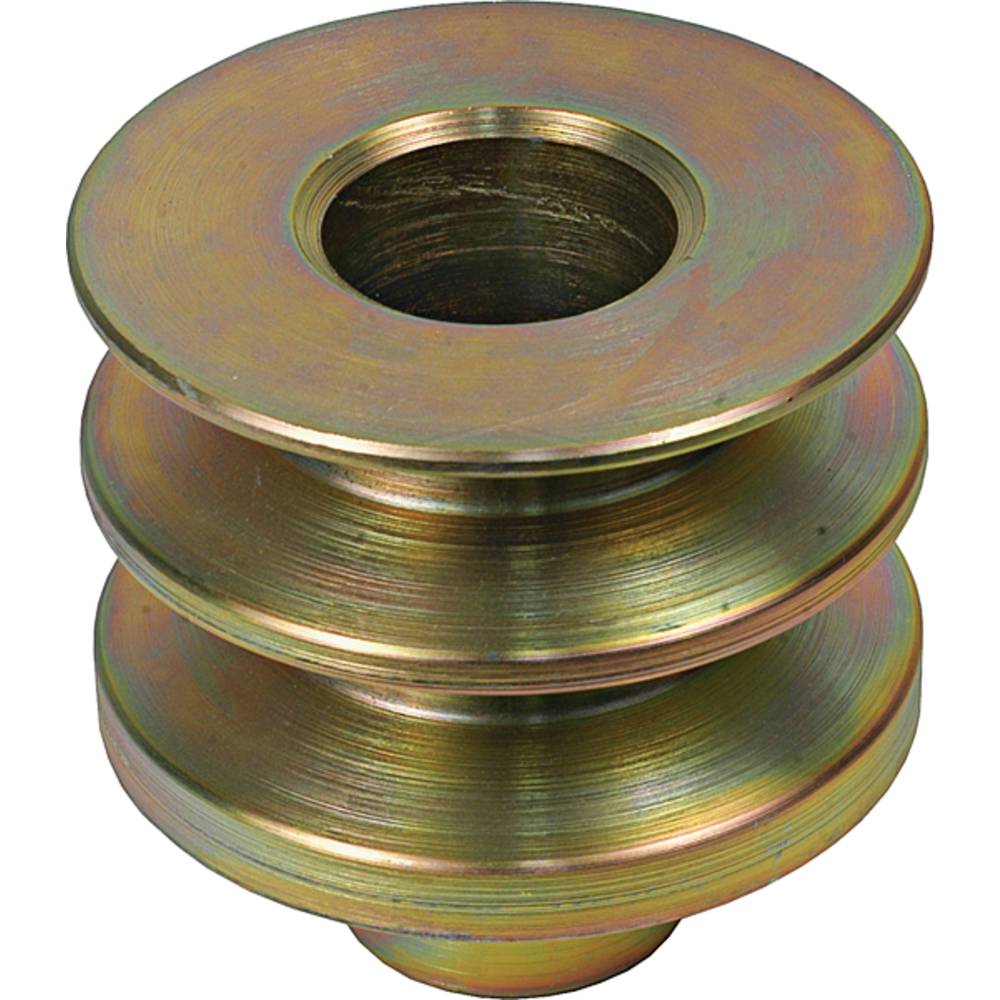

202-12011-JN J&N Electrical Products Pulley

202-12011-JN J&N Electrical Products Pulley

$62.00 AUD
$62.00 AUD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket J&N Electrical Products Pulley

Tech Info:
-BELT WIDTH: 22, Fits Case OD: 1.083", Fits Case OD: 27.500mm, CENTER OF GROOVE TO REAR: 2.079", CENTER OF GROOVE TO REAR: 52.800mm, CENTER TO CENTER GROOVE: 1.083", CENTER TO CENTER GROOVE: 27.500mm, GROOVE TYPE: V-Groove, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 2.335", NUT RECESS: 59.300mm, OD: 3.752", OD: 95.300 mm, PULLEY TYPE: Solid, THICKNESS: 93.110 mm
-Arrowhead: 202-12011, APL5001; Fits Caterpillar: 888-129, 9S6129; J&N Electrical Products: 202-01002, 202-12011, 202-12011-8

Replaces Part Number(s): 202-12011

Additional Information:

BELT WIDTH: 22, CASE OD: 1.083", CASE OD: 27.500mm, CENTER OF GROOVE TO REAR: 2.079", CENTER OF GROOVE TO REAR: 52.800mm, CENTER TO CENTER GROOVE: 1.083", CENTER TO CENTER GROOVE: 27.500mm, GROOVE TYPE: V-Groove, ID: 0.874", ID: 22.200 mm, KEYWAY WIDTH: 0.157", KEYWAY WIDTH: 4mm, NUMBER OF GROOVES: 2, NUT RECESS: 2.335", NUT RECESS: 59.300mm, OD: 3.752", OD: 95.300 mm, PULLEY TYPE: Solid, THICKNESS: 93.110 mm, Arrowhead: 202-12011, APL5001; Caterpillar: 888-129, 9S6129; J&N Electrical Products: 202-01002, 202-12011, 202-12011-8

Reference Numbers:

202-12011
