194046M91 4 Blade Cooling Fan 15.5 in Fits Massey Ferguson 135 165 245
194046M91 4 Blade Cooling Fan 15.5 in Fits Massey Ferguson 135 165 245
Regular price
$89.00 AUD
Regular price
Sale price
$89.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

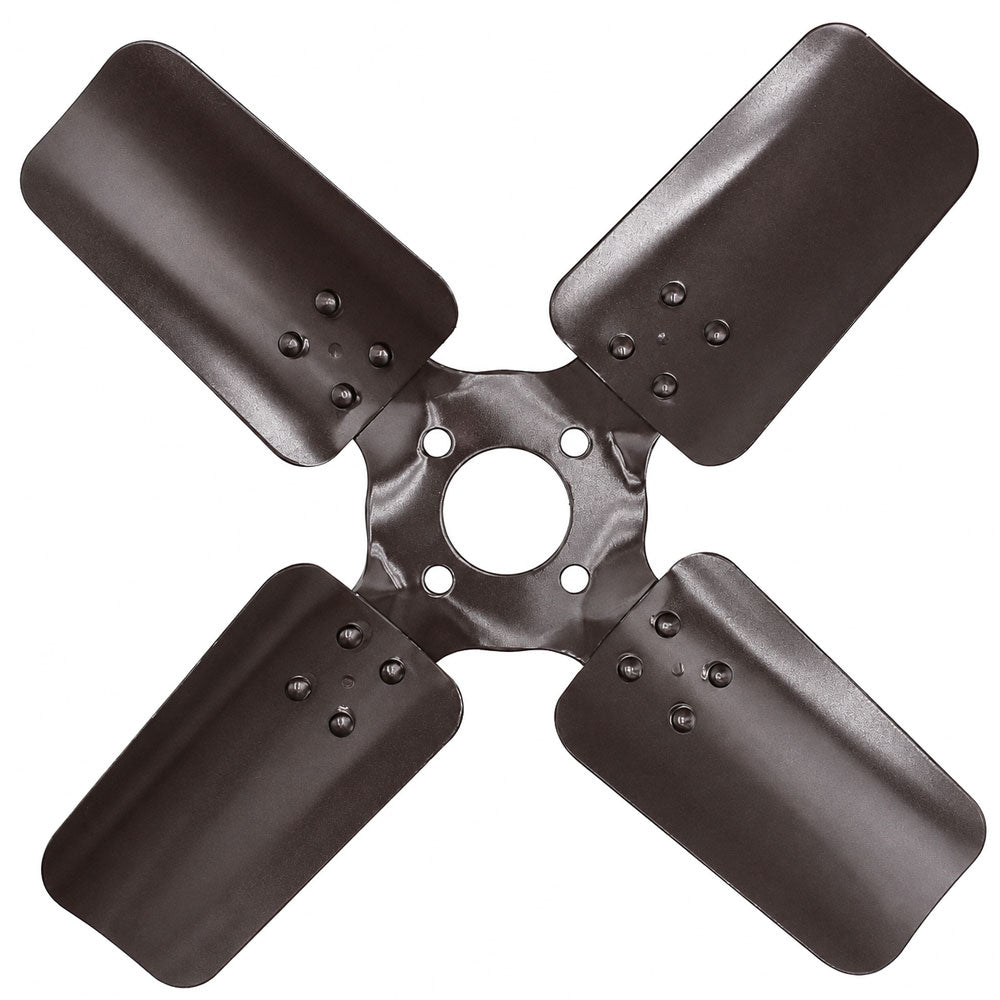

New aftermarket four blade engine cooling fan for Massey Ferguson tractors.
Replaces OEM Part Number: 194046M91
Also: 194046M1, 521031M91, 194046V91
Specifications:
Blades: 4
Overall diameter: 15.5 in
Pilot hole: 1-5/8 in
Bolt pattern: 1-3/4 in square, holes on 2.5 in centers, 5/16 in holes
SQUARE PATTERN, NOT TRAPEZOID
This is the four blade fan with the SQUARE bolt pattern. A visually similar four blade fan with a TRAPEZOID bolt pattern is a different part for the earlier TO35, 35 and FE35 tractors, and it will not bolt to a square hub. Match your hub pattern before ordering.
Fits Massey Ferguson: 135, 150, 165, 230, 235, 245, and the industrial 20, 20C, 30 and 40. These are the Perkins three and four cylinder diesel tractors.
MATCH THE BLADE COUNT
Some of these tractors were built with a six blade fan on the same square hub. This is the four blade version. Count the blades on your old fan first.
Aftermarket replacement, not an OEM part. OEM numbers, brand and model names are cross-reference only.
