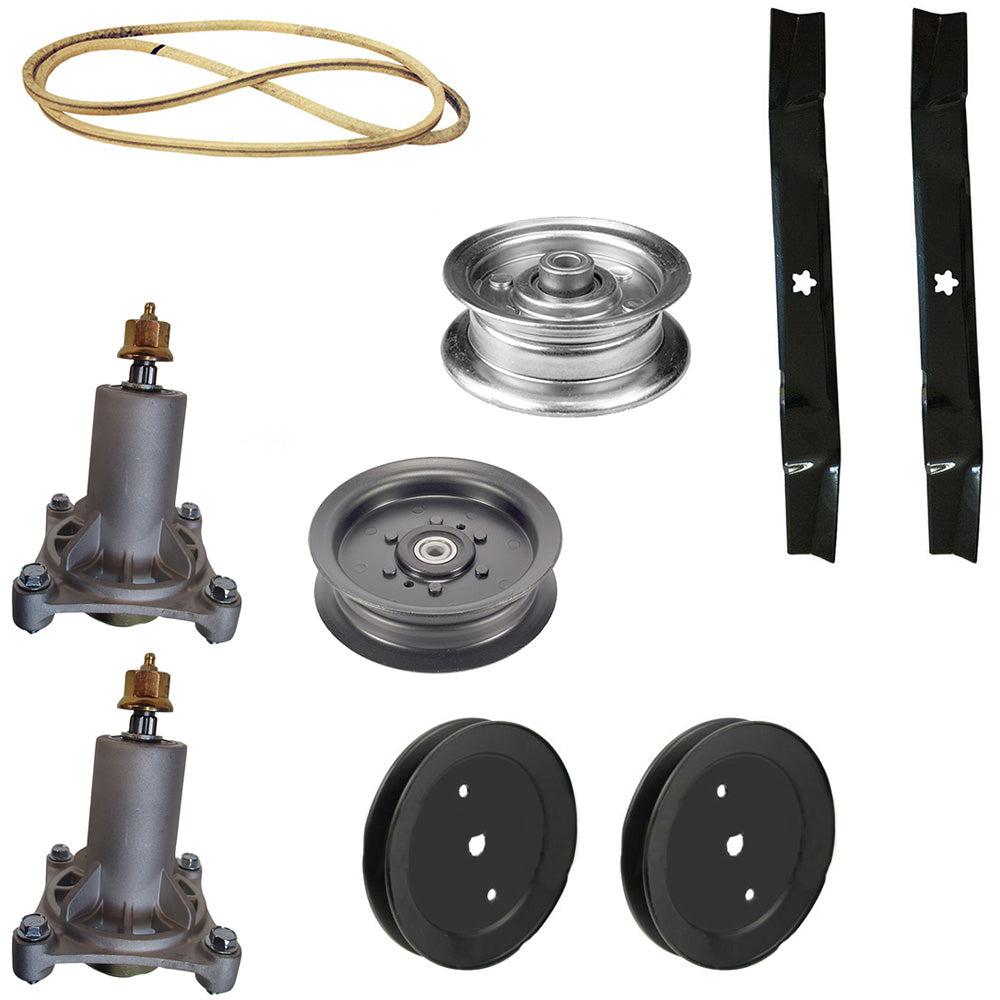

42" Deck Rebuild Kit Fits AYP Replaces 177968

42" Deck Rebuild Kit Fits AYP Replaces 177968

$173.00 AUD
$173.00 AUD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket 42" Deck Rebuild Kit

Tech Info:
 -Kit Contains:

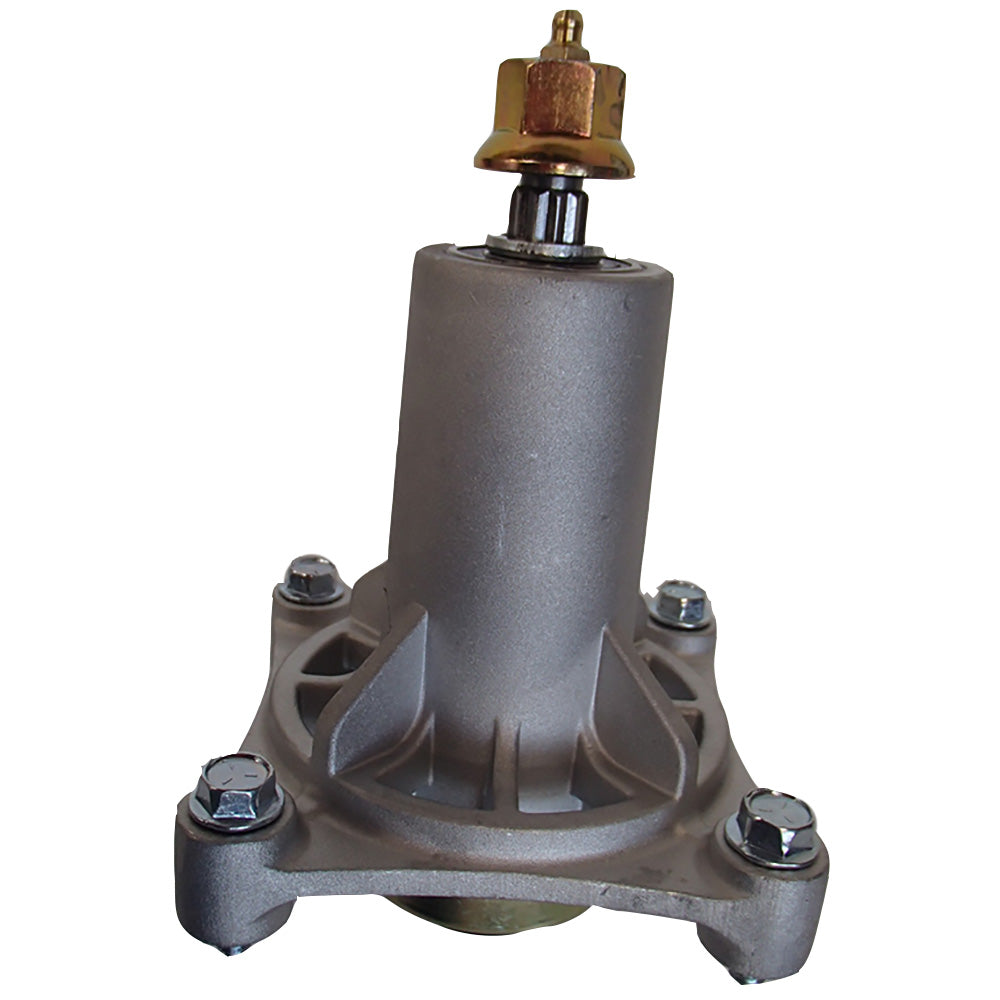

 -(2) Spindle Assemblies
 -4-Bolt Long Housing
 -5-Point Star Blade Mount
 -Threaded Mounting Holes for Easy Installation
 -Shaft is Splined for Spline-Type Pulleys
 -Pulley Locknut,
 -Blade Bolt/Washer,
 -Spacer,
 -4 Mounting Bolts
 -Replaces Part Number(s):
 -192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301
 -

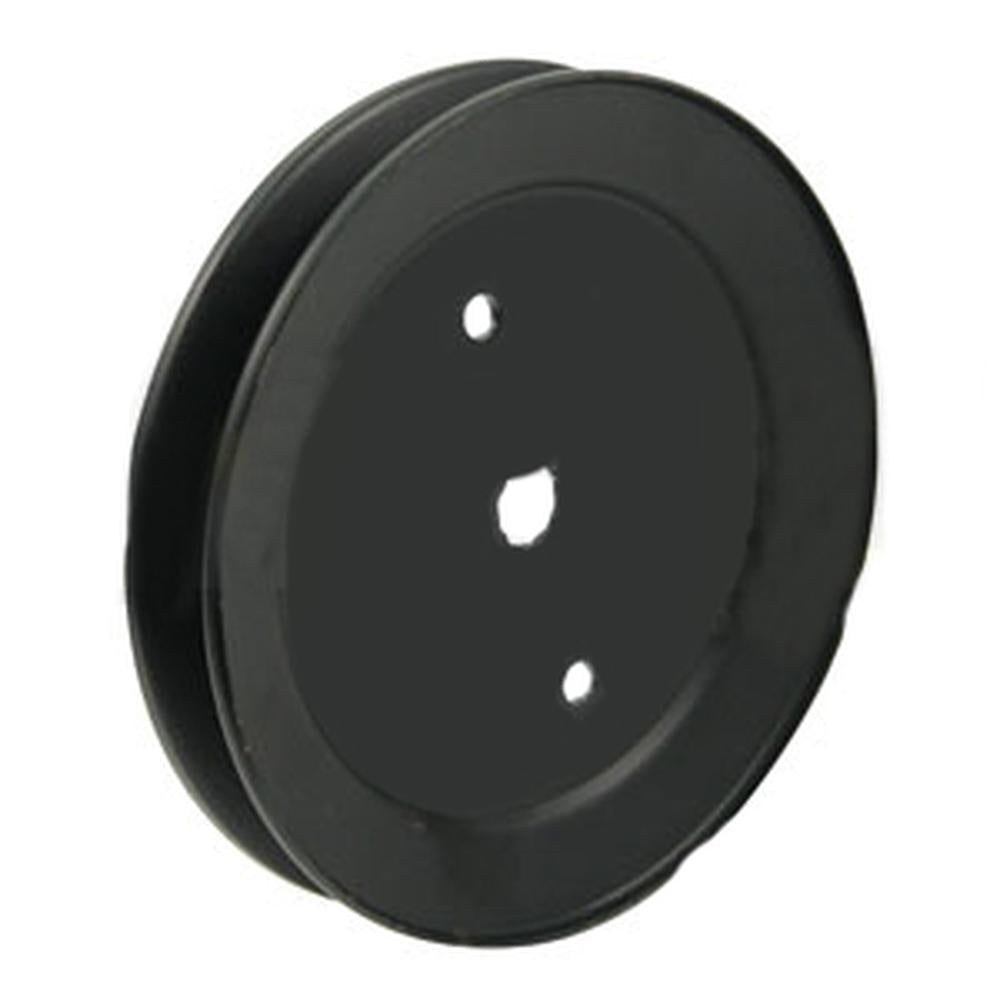

 -(2) Spindle Pullies
 -Inside Diameter: 5/8" Splined
 -Outside Diameter: 6-1/4"
 -Width: 7/8"
 -Replaces Part Number(s):
 -195945, 197473, 532195945, 532197473
 -

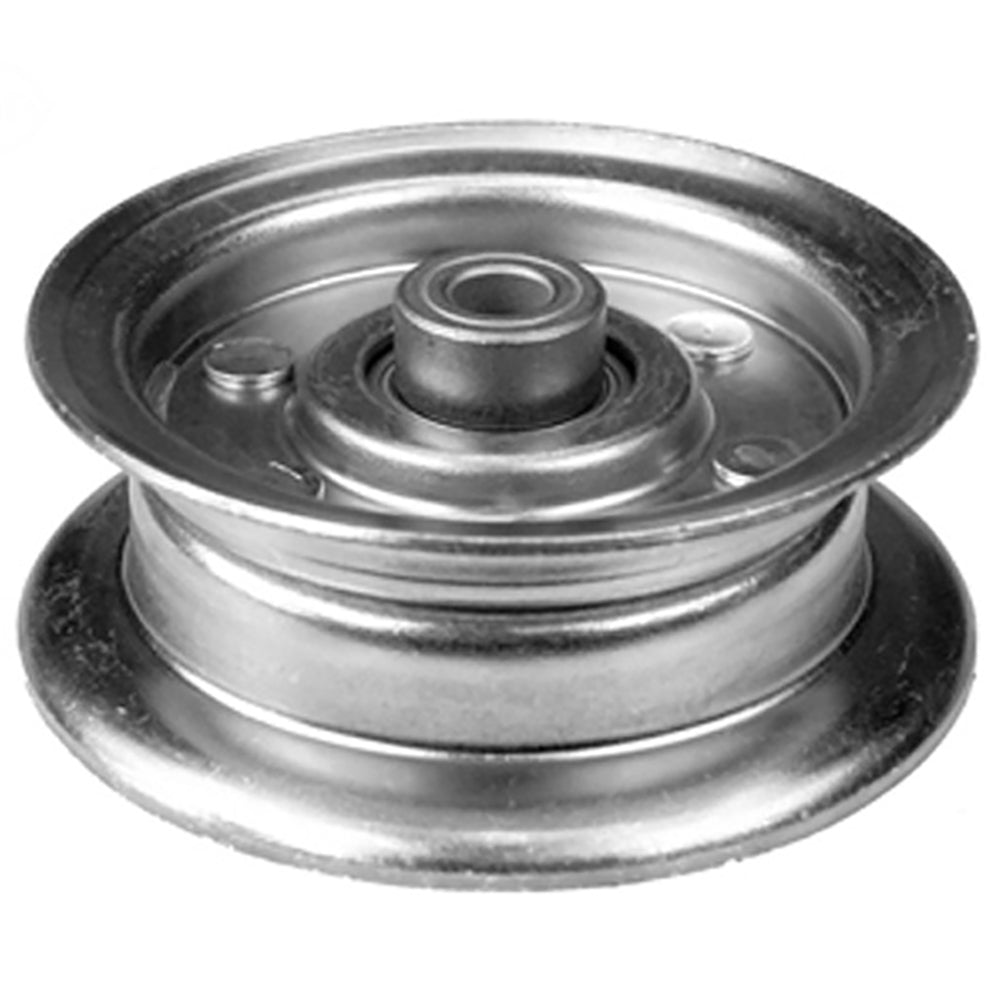

 -(1) Flat Idler Pulley
 -Inner Diameter:3/8"
 -Outer Diameter: 5-3/8"
 -Height: 1-5/8"
 -Painted
 -Replaces Part Number(s):
 -196106, 197379, 532196106
 -

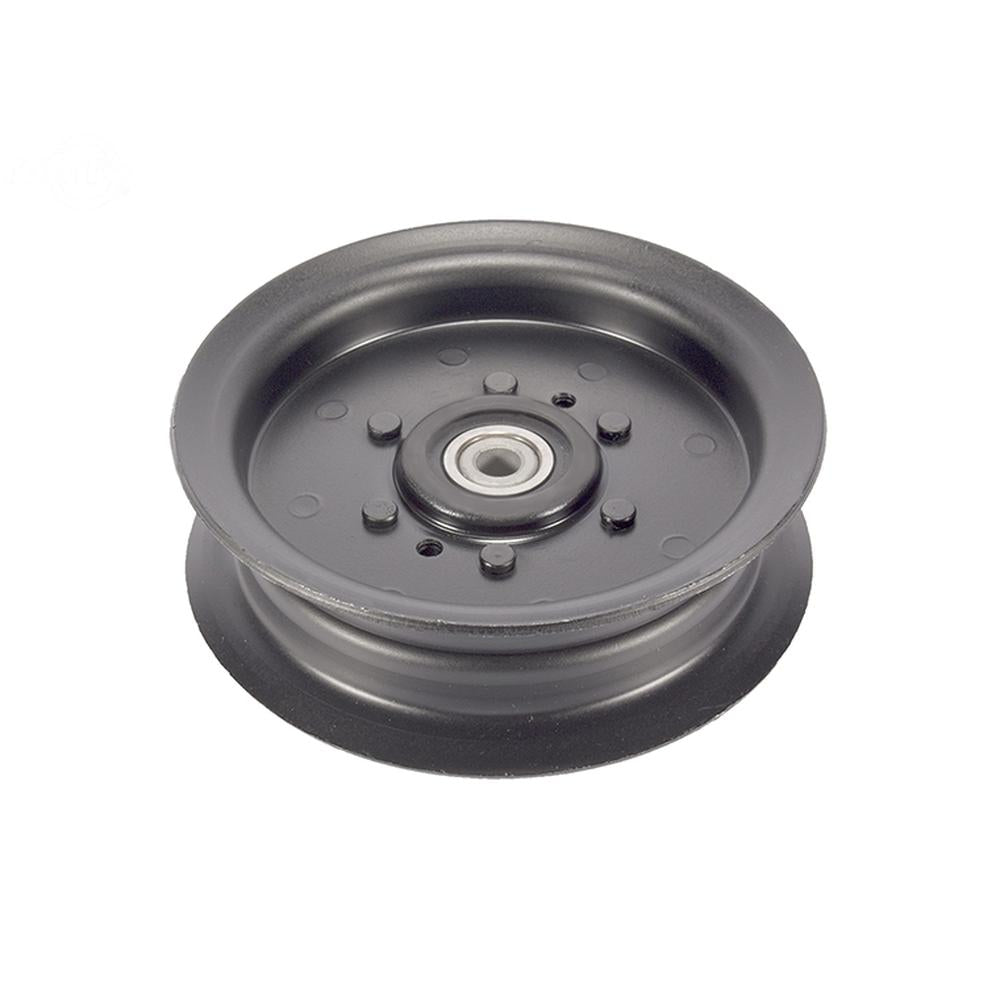

 -(1) Flat Idler Deck Pulley
 -Height: 1-7/16"
 -Inner Diameter: 3/8"
 -Outer Diameter: 4"
 -Material: Metal
 -Heavy Duty: TRUE
 -Replaces Part Number(s):
 -532177968, 532193197
 -

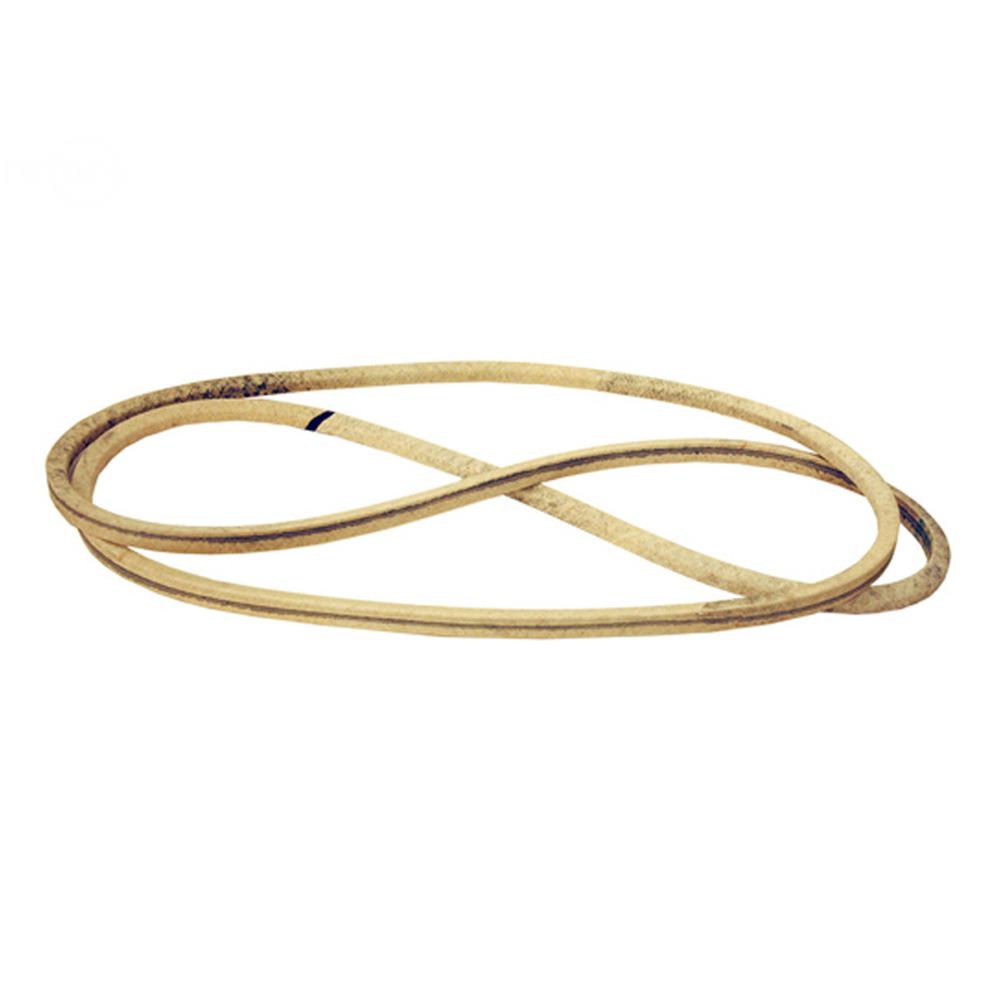

 -(1) Deck Belt
 -1/2" x 101"
 -Made With Aramid Cord
 -Replaces Part Number(s):
 -532197253, 592855001
 -

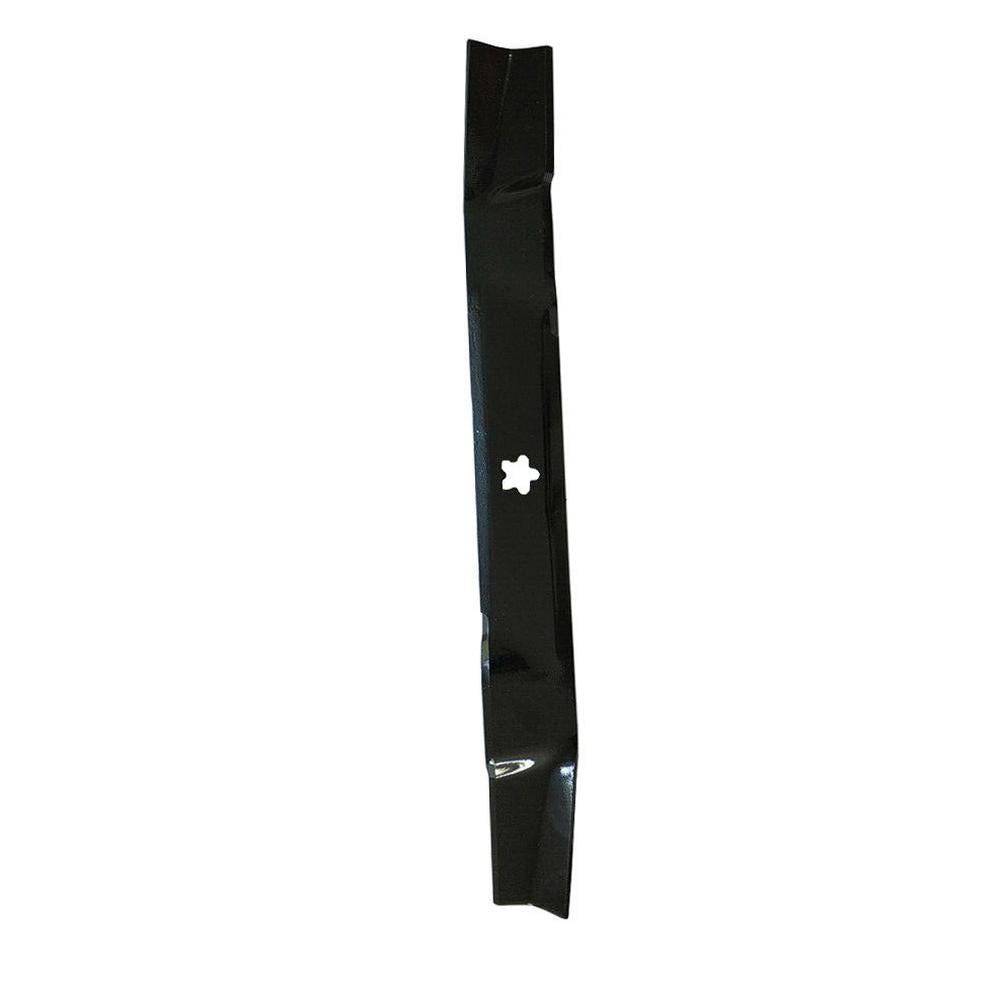

 -(2) Mulching Lawn Mower Blades
 -Length: 21"
 -Width: 2-1/4"
 -Center Hole: 5 Point Star
 -Thickness: .134"
 -Mulching Blade
 -Replaces Part Number(s):
 -532134149, 594892701, 594893101, 777134149

Made to Fit AYP:
 Lawn Mower Models: 42" and 46" decks
 Replaces Part Number(s): 177968, 193197, 532177968

Models This Part Fits:

42" and 46" decks

Additional Information:

Kit Contains: (2) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (2) Spindle Pullies Inside Diameter: 5/8" Splined Outside Diameter: 6-1/4" Width: 7/8" Replaces Part Number(s): 195945, 197473, 532195945, 532197473 (1) Flat Idler Pulley Inner Diameter:3/8" Outer Diameter: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (1) Flat Idler Deck Pulley Height: 1-7/16" Inner Diameter: 3/8" Outer Diameter: 4" Material: Metal Heavy Duty: TRUE Replaces Part Number(s): 532177968, 532193197 (1) Deck Belt 1/2" x 101" Made With Aramid Cord Replaces Part Number(s): 532197253, 592855001 (2) Mulching Lawn Mower Blades Length: 21" Width: 2-1/4" Center Hole: 5 Point Star Thickness: .134" Mulching Blade Replaces Part Number(s): 532134149, 594892701, 594893101, 777134149

Reference Numbers:

177968, 193197, 532177968

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
