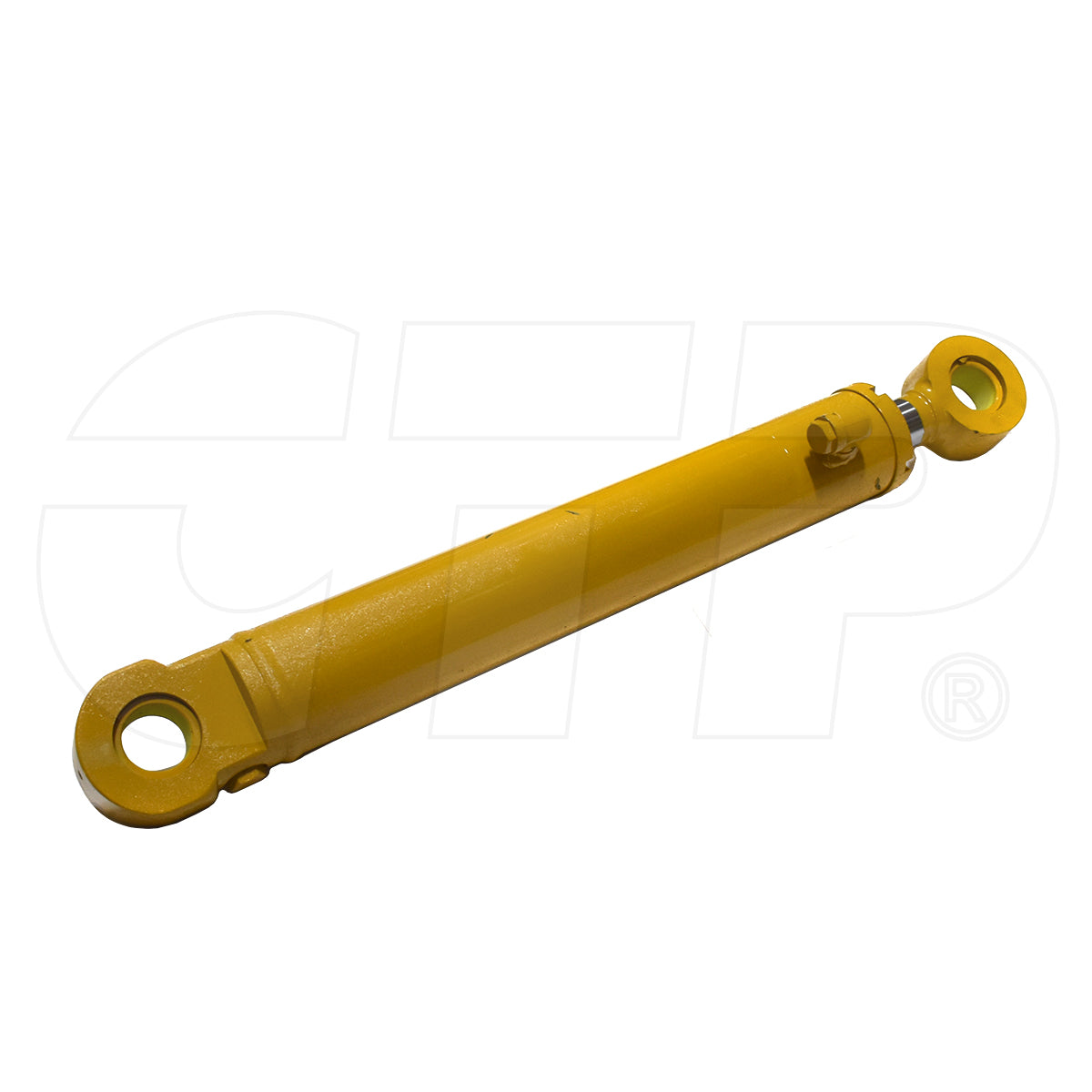

One New Aftermarket Replacement Scarifier Hydraulic Cylinder Group for Caterpillar (Cat) Motor Graders
This aftermarket replacement hydraulic cylinder group (Cylinder-Gp Scarifier) actuates the scarifier/ripper attachment on Caterpillar motor graders, raising and lowering the scarifier shanks used to break up compacted road surfaces and hardpan material. The cylinder measures 3-inch (76.2 mm) bore x 16-inch (406.5 mm) stroke and is part of the scarifier mounting and cylinder group assembly.
Specifications
- Bore: 3.00 in (76.2 mm)
- Stroke: 16.00 in (406.5 mm)
- Approximate Dimensions: 39.76 x 9.06 x 5.51 in
- Approximate Weight: 57-61 lbs
- Type: Hydraulic scarifier cylinder group
Compatible Models
Caterpillar Motor Graders: 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 143H, 160H, 160M, 163H
Replaces Part Number(s):
1652510, 165-2510
Aftermarket Interchange Numbers
9T-4211, 9T4211, 9T-6951, 9T6951
New aftermarket replacement part - not remanufactured, not used.
