138498 Mower Deck Rebuild Kit Fits Craftsman 917273404

138498 Mower Deck Rebuild Kit Fits Craftsman 917273404

$104.00 AUD
$104.00 AUD
Sale Sold out
Shipping calculated at checkout.

Aftermarket Mower Deck Rebuild Kit



Tech Info:

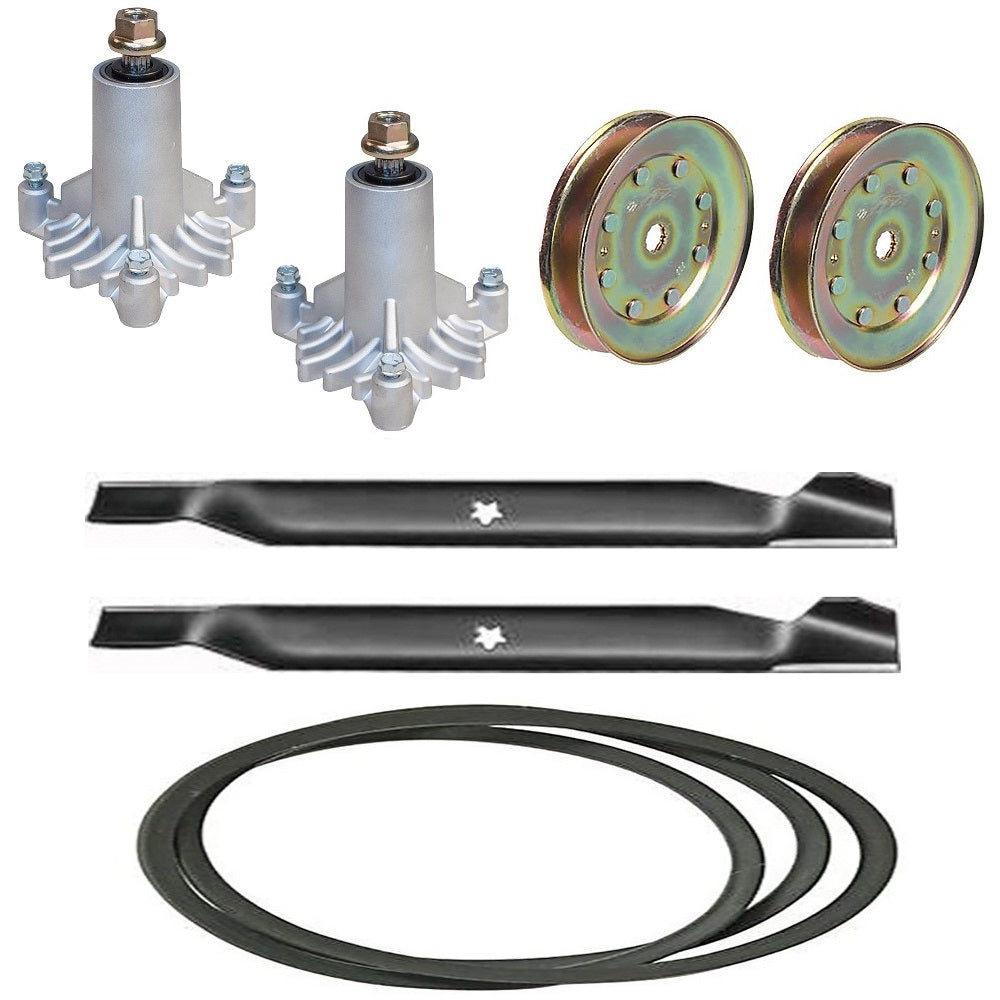

Kit Contains:
(2) Drive Pulley:
Outer Diameter: 5-1/6"
Inner Diameter: 9/16"
Steel
Replaces Part Numbers: 532153535, 532173436, 532177865

(1) Deck Belt:
1/2" x 95.5"
Thickness: 0.374"
Replaces Part Number: 917273404

(2) Spindle Assembly:
3-Bolt Long,
5 Point Star Center Hole
Replaces Part Numbers: 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94

(2) Lawn Mower Blade:
Type: Notched, High Lift
Length: 21"
Center Hole: 5 Point Star
Width: 2-1/4"
Thickness: 0.149"
Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535, 532 12 98-61, 532 17 34-36, 532-15-35-35, 177865, 153535MS, 153535CS



Fits Craftsman:
 Lawn & Garden Tractor Models: 42" Mower Deck
 Replaces Part Number(s): 127843, 138498, 138971, 138971X431, 532138971, 173436, 153535, 129861, 532129861, 532173436, 130794, 532130794, 80-11-742, 21547026, 21547027, 21547082, 21547188, 532144959, 144959


Models This Part Fits:

42" Mower Deck

Additional Information:

Kit Contains: (2) Drive Pulley: Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Numbers: 532153535, 532173436, 532177865 (1) Deck Belt: 1/2" x 95.5" Thickness: 0.374" Replaces Part Number: 917273404 (2) Spindle Assembly: 3-Bolt Long, 5 Point Star Center Hole Replaces Part Numbers: 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94 (2) Lawn Mower Blade: Type: Notched, High Lift Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535, 532 12 98-61, 532 17 34-36, 532-15-35-35, 177865, 153535MS, 153535CS

Reference Numbers:

127843, 138498, 138971, 138971X431, 532138971, 173436, 153535, 129861, 532129861, 532173436, 130794, 532130794, 80-11-742, 21547026, 21547027, 21547082, 21547188, 532144959, 144959

Product Sub Group:

Deck Components
