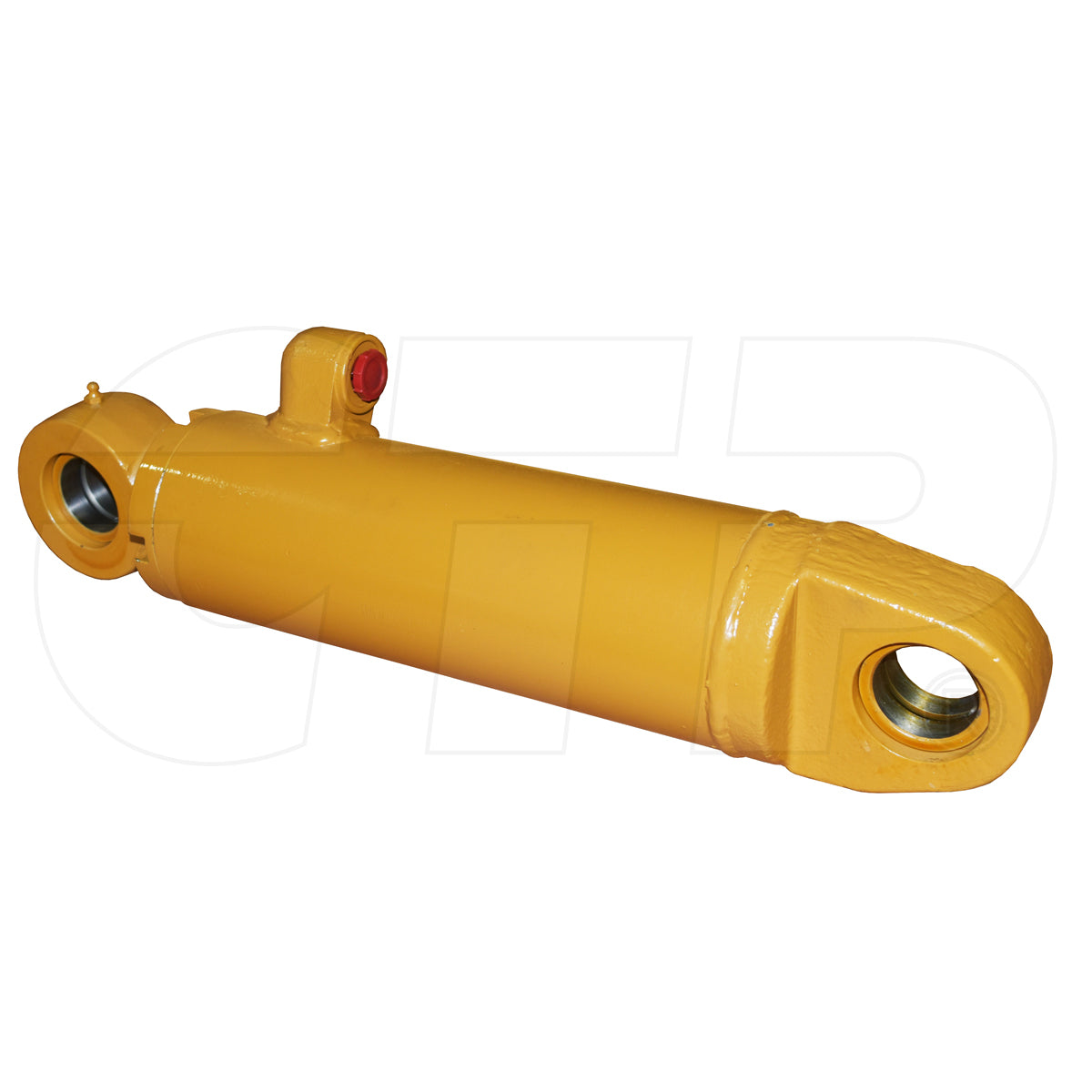

1219242 Cylinder Gp Fits Caterpillar Models

One New Aftermarket Replacement Wheel Lean Hydraulic Cylinder Group for Caterpillar Motor Graders

This hydraulic cylinder group controls wheel lean on Caterpillar (Cat) motor graders, allowing the front wheels to tilt inward or outward for improved grading stability and steering performance. It is a direct-fit replacement for the OEM wheel lean cylinder assembly on a wide range of Cat G-, H-, and K-series motor graders.

Important: Serial number restrictions apply on select models. Verify your machine serial number before ordering (see details below).

Specifications

• Rod Diameter: 2 in.
• Bore: 3-1/2 in.
• Weight: approx. 50-51 lbs.
• Dimensions: approx. 24.21 x 9.06 x 11.22 in.

Serial Number Restrictions

• 12G: Fits serial numbers 3PL01283-01308, 3PL01321-Up, 61M12027-Up only (earlier 12G serials use a different cylinder)
• 120H, 120H ES, 120H NA: Fits serial numbers 12400001-Up, 2AN00001-Up, 4MK00001-Up, 5FM00001-Up, 6NM00001-Up, 6TM00001-00442, 6YN00001-Up, 9YR00001-Up, ALZ00001-Up, CAF00001-Up
• All other listed models: verify serial range with your dealer or service manual

Compatible Models

Caterpillar G-Series Motor Graders: 120G, 12G, 130G, 140G, 160G

Caterpillar H-Series Motor Graders: 12H, 12H ES, 12H NA, 120H, 120H ES, 120H NA, 130G, 135H, 135H NA, 140H, 140H ES, 140H NA, 143H, 160H, 160H ES, 160H NA, 163H, 163H NA

Caterpillar K-Series Motor Graders: 12K, 120K, 120K 2, 140K, 140K 2, 160K

Replaces Part Number(s):

1219242, 121-9242, CA1219242

New aftermarket replacement part - not remanufactured, not used.
