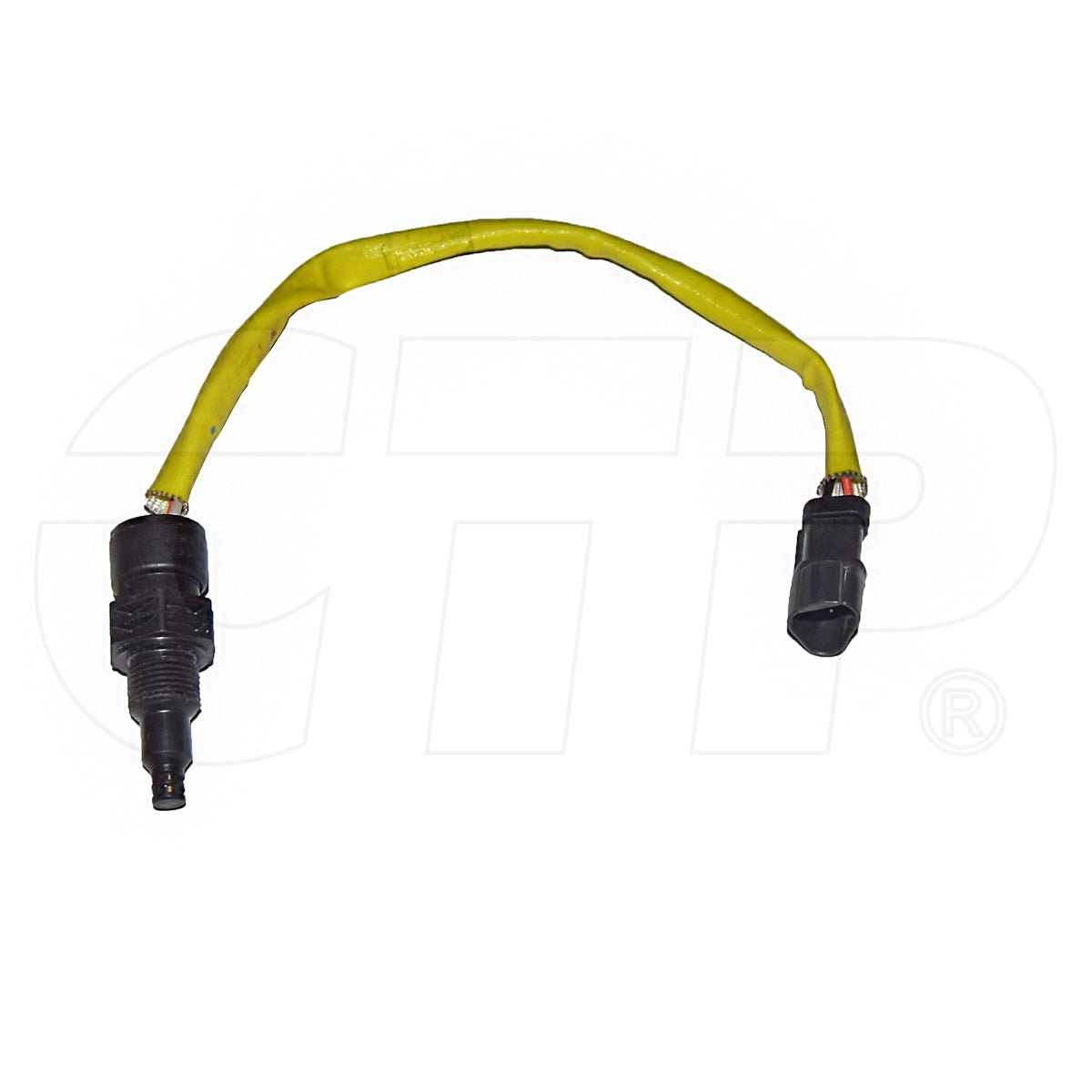

1078618 Control G Fits Caterpillar Models

One New Aftermarket Replacement Temperature Sensor (Control Group) for Caterpillar (Cat) Engines and Equipment

This aftermarket replacement temperature sensor (Caterpillar part group designation: Control G / Sensor GP-Temperature) monitors ambient or coolant temperature and feeds data to the engine control system. It is used across a wide range of Caterpillar diesel engines and the equipment powered by them, including excavators, articulated trucks, wheel loaders, challengers, and more. The sensor features a triangular 3-pin connector and installs into a 3/4-16 threaded port.

Specifications

• Connector Shape: Triangular
• Pin Count: 3
• Thread Size: 3/4-16
• Operating Voltage: 9-32V
• Weight: approx. 0.13 lbs

Compatible Models

Caterpillar Engines: 3116, 3126, 3176B, 3176C, 3196, 3406E, 3408E, 3412E, 3456, C-10, C-12

Caterpillar Excavators: 314D LCR, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321C, 321D LCR, 323D L, 323D LN, 323D SA, 324D, 324D L, 324D LN, 325D, 325D L, 325D MH, 328D LCR, 329D, 329D L, 329D LN, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 336E H, 336E LH, 340D L, 340D2 L, 345B, 345B II, 345B II MH, 345B L, 365B, 365B II, 365B L, 385B

Caterpillar Articulated Trucks: D350E II, D400E II

Caterpillar Challengers: 65E, 75C, 75E, 85C, 85E, 95E

Caterpillar Load Haul Dump: R1600, R1600G, R1700G, R2900, R2900G

Caterpillar Combine: 480

Caterpillar Front Shovel: 5090B

Caterpillar Landfill Compactor: 836G

Replaces Part Number(s):

1078618, 107-8618

Aftermarket Interchange Numbers

CA1078618, 107-8618-B, 100-3450, 1003450, PAI 350551OEM

New aftermarket replacement part - not remanufactured, not used.
