1004336 Clip Fits Caterpillar Models

One New Aftermarket Replacement Dual Tube Loop Clip for Caterpillar (Cat) Construction Equipment

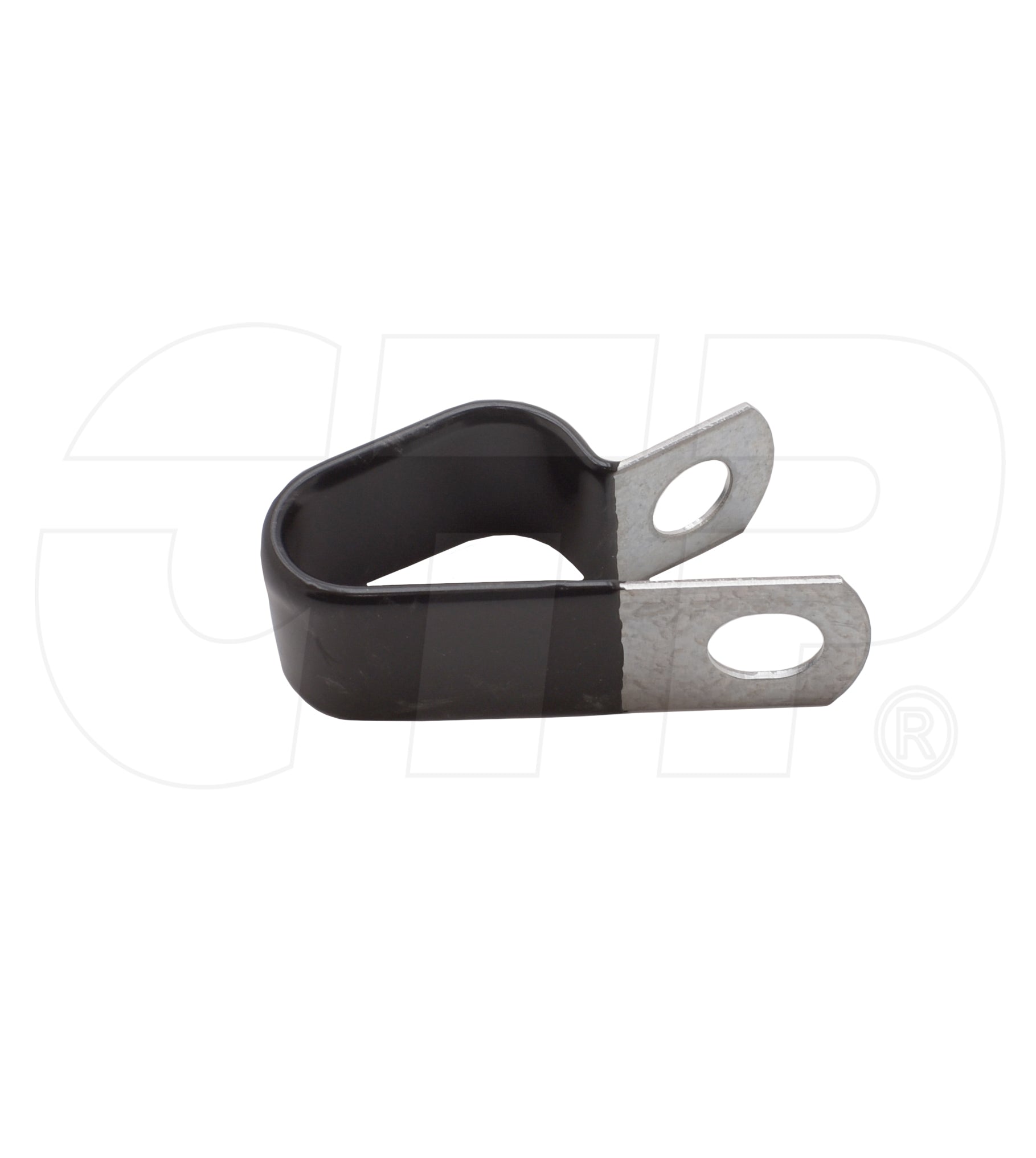

This vinyl-coated dual tube loop clip secures hydraulic and fluid lines on a wide range of Caterpillar (Cat) motor graders, excavators, backhoe loaders, track-type tractors, wheel loaders, and other heavy construction equipment. It replaces OEM Caterpillar part number 1004336 (also formatted as 100-4336).

Specifications

• Type: Dual Tube Loop Clip, Vinyl Coated
• Internal Diameter (ID): approximately 19.02 mm (20.62 mm centerline of tube to tube)
• Centerline of Bolt to Tube: 47.6 mm
• Thickness: 1.5 mm
• Width: 25 mm
• Weight: approximately 0.13 lbs

Compatible Models

Caterpillar Motor Graders: 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 135H, 135H NA, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H and additional Cat motor grader models

Caterpillar Excavators, Backhoe Loaders, Wheel Loaders, Track-Type Tractors, Asphalt Pavers, Wheel Skidders, and other Caterpillar equipment: Verify fitment using your machine model and serial number. This clip fits across numerous Cat equipment families - contact us if you need fitment assistance.

Replaces Part Number(s):

1004336, 100-4336, CA1004336

New aftermarket replacement part - not remanufactured, not used.
