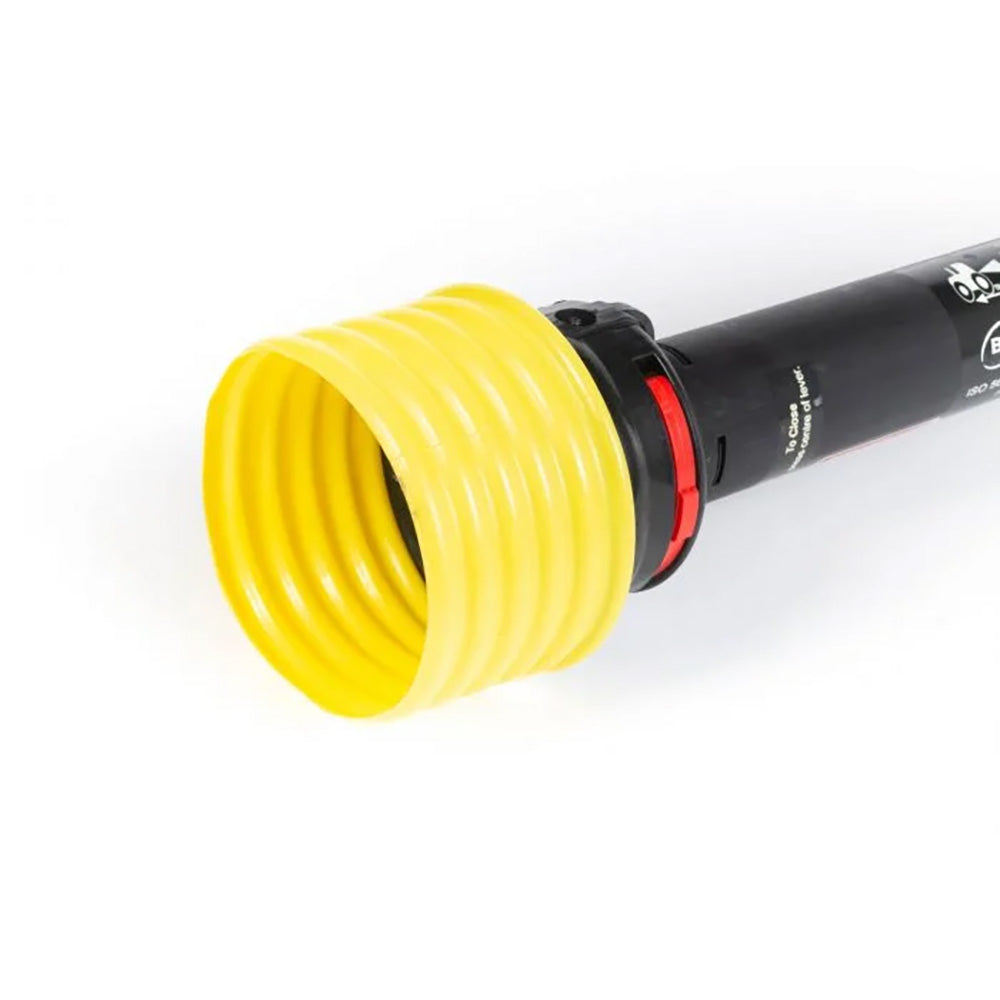

Universal PTO Safety Shield AS20090 1 5/16" to 2 1/8"
Universal PTO Safety Shield AS20090 1 5/16" to 2 1/8"
Couldn't load pickup availability
Specifications:
Closed Length- 40"
Open Length- 63"
Yoke bearing groove dia 1 5/16" to 2 1/8"
Includes all Standard Bearings
Fits Models:
BARE-CO SHAFT SERIES 1 TO 4
BYPY SHAFT SERIES 1 TO 4
COMER SERIES 1 TO 4
U.S. SHAFT SERIES 6N TO 12N
WALTERSCHIED SHAFT UP TO SERIES W2100
HARDY SPICER SHAFT UP TO SERIES 1310
JAYBEN SHAFT UP TO SERIES 4AG
Reference Numbers:
AS20090

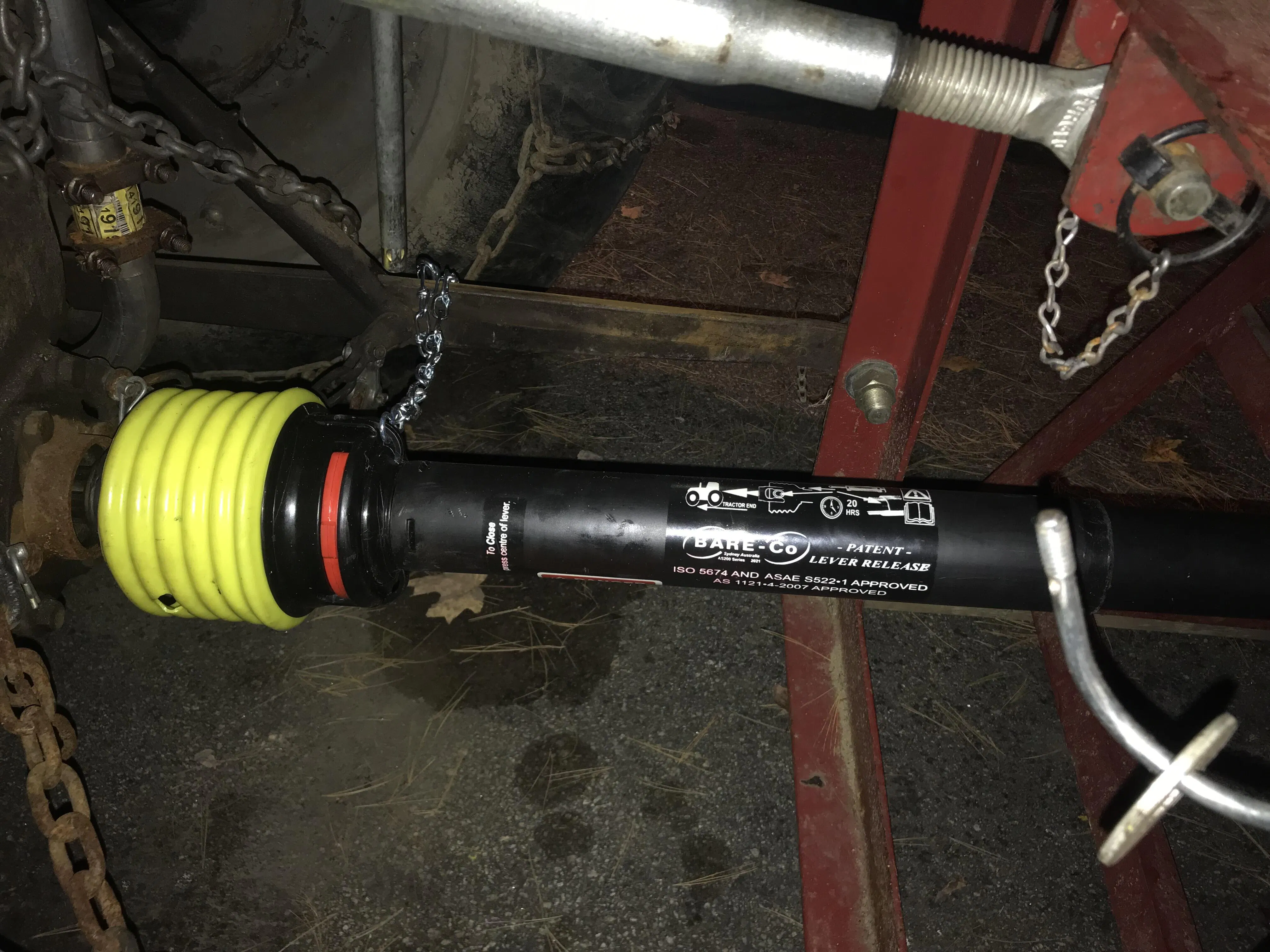

Came with the bearings I needed, fit perfectly onto the PTO shaft, and really liked the clips that secure the bearing into the covered ends. All in all, I am really pleased.

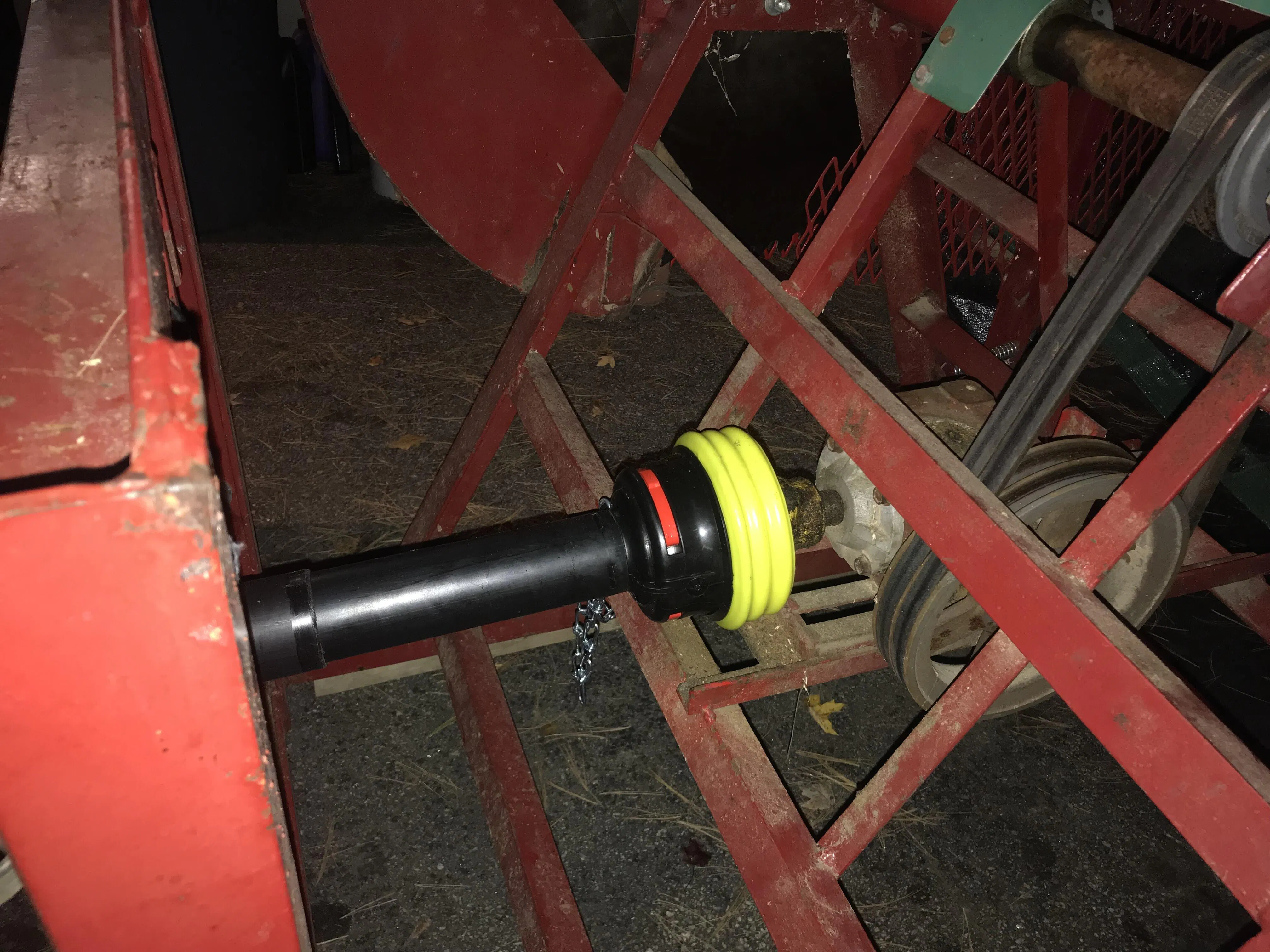

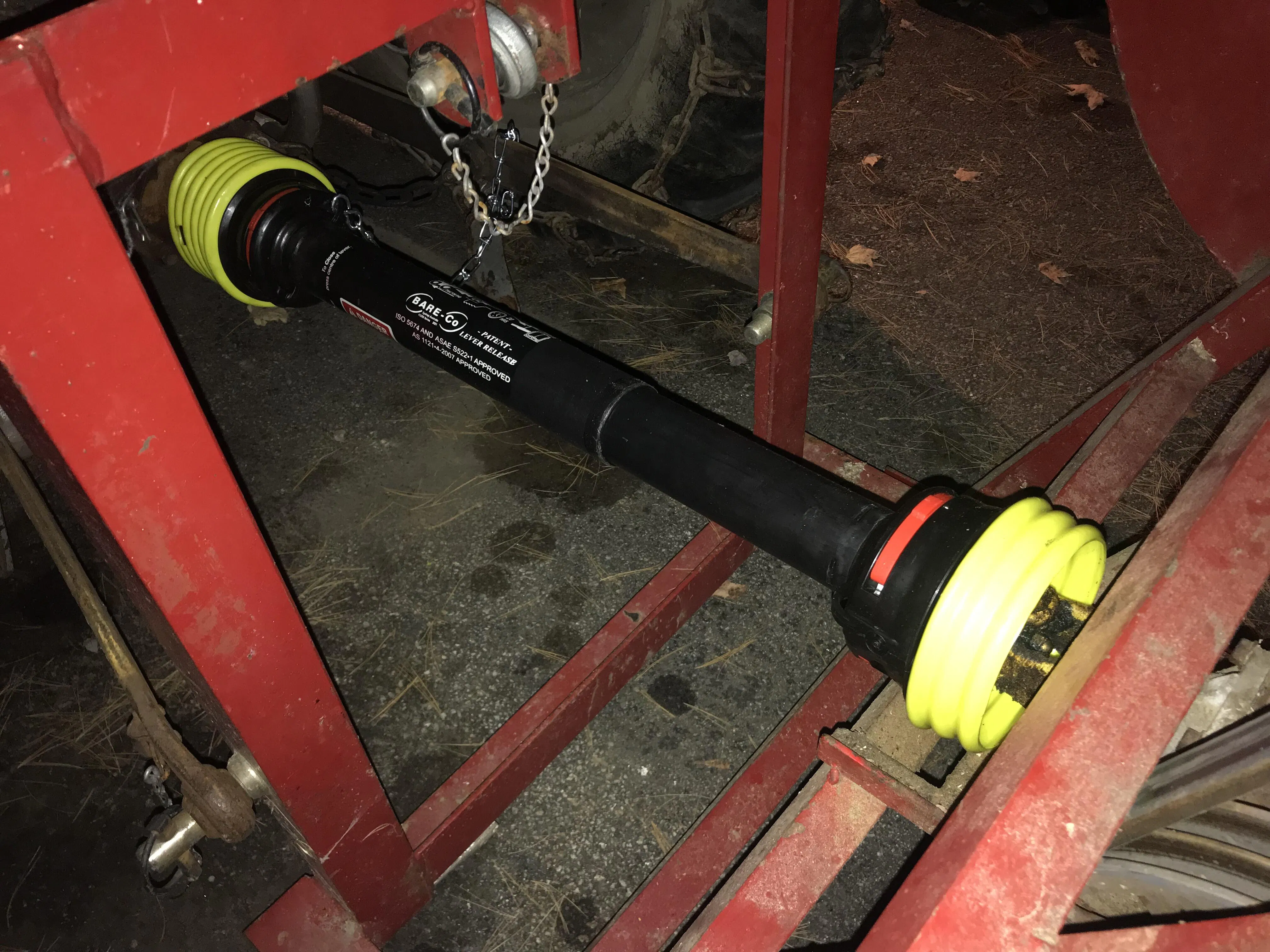

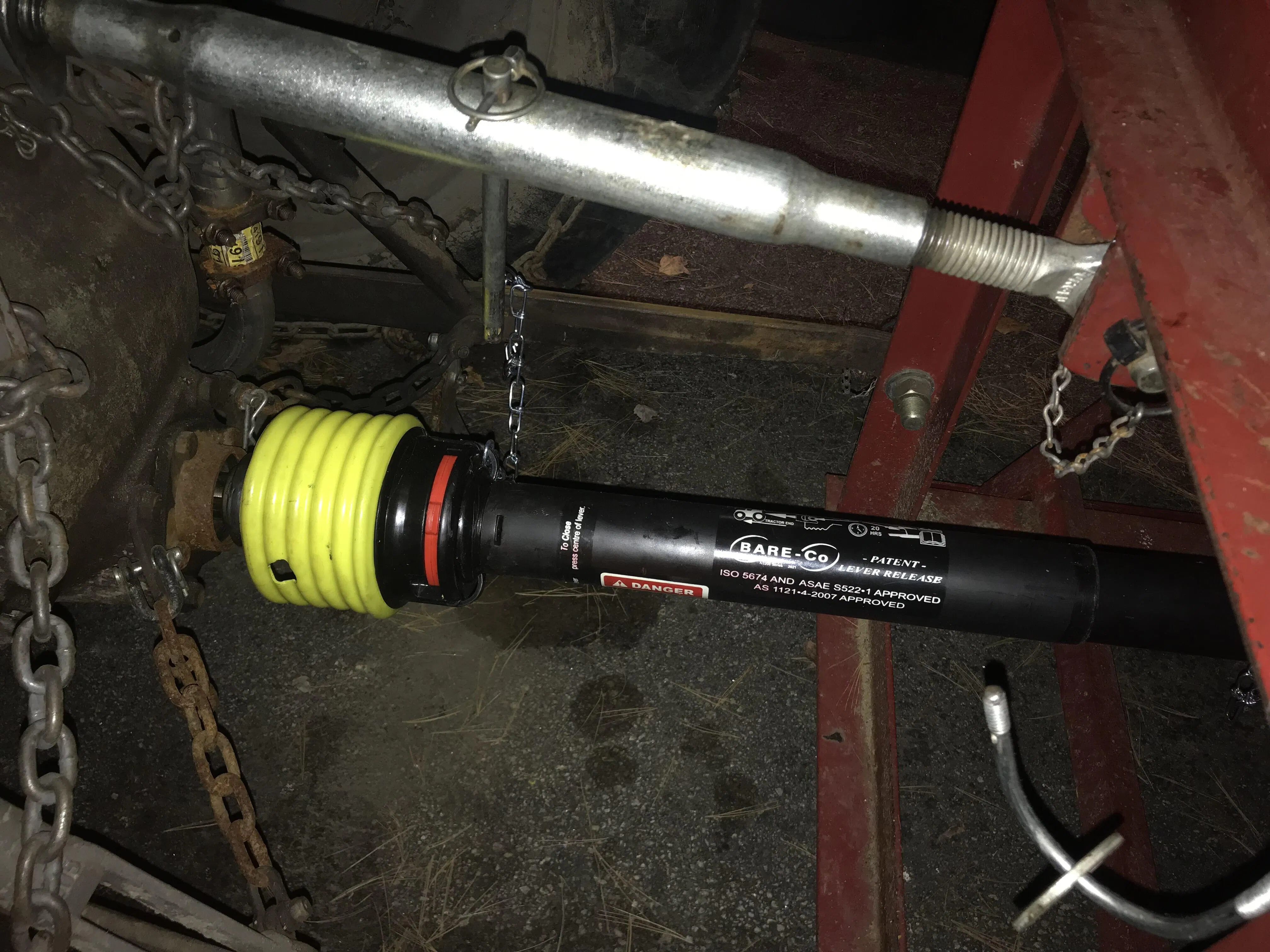

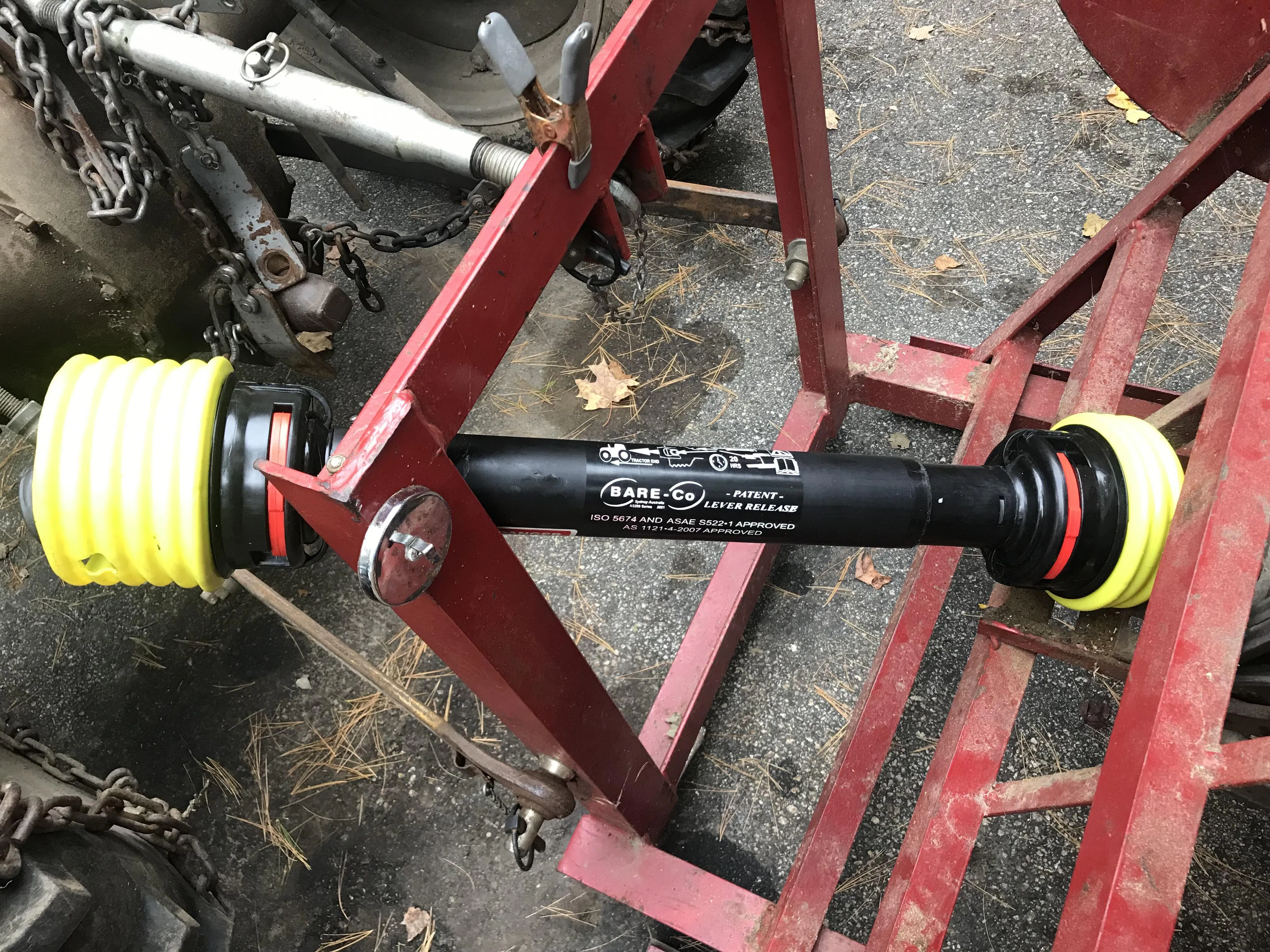

Finally found a shield for an old, out of production and related support cordwood saw. Had seen this brand featured on a Tractor Mike You Tube video. Manufacturer's description could be better as to what is included - there are 8 bearings but only 3 matched pairs and two singles. As you can figure, I needed a pair of one of the singles but was able to open the hole up in a smaller not needed bearing to match the fit (1 7/8"). Embossed numbers on bearings (AS 234, 240, 246, 251 & 253) don't seem to relate to any type of ID - Metric or Imperial. Once modified, it fit like a glove. Does not come with any restraint chains - no big deal. Wish I had found this guard a couple of months earlier when I needed to replace a guard on a Ford rotary cutter from early 70's. Weasler and just about every one else's wouldn't fit, this would have fit the bill.
