Spindle Shaft Assembly w/ Hardware Fits Husqvarna Replaces 532 11 04-85

Spindle Shaft Assembly w/ Hardware Fits Husqvarna Replaces 532 11 04-85

$51.00 AUD
$51.00 AUD
Sale Sold out
Shipping calculated at checkout.

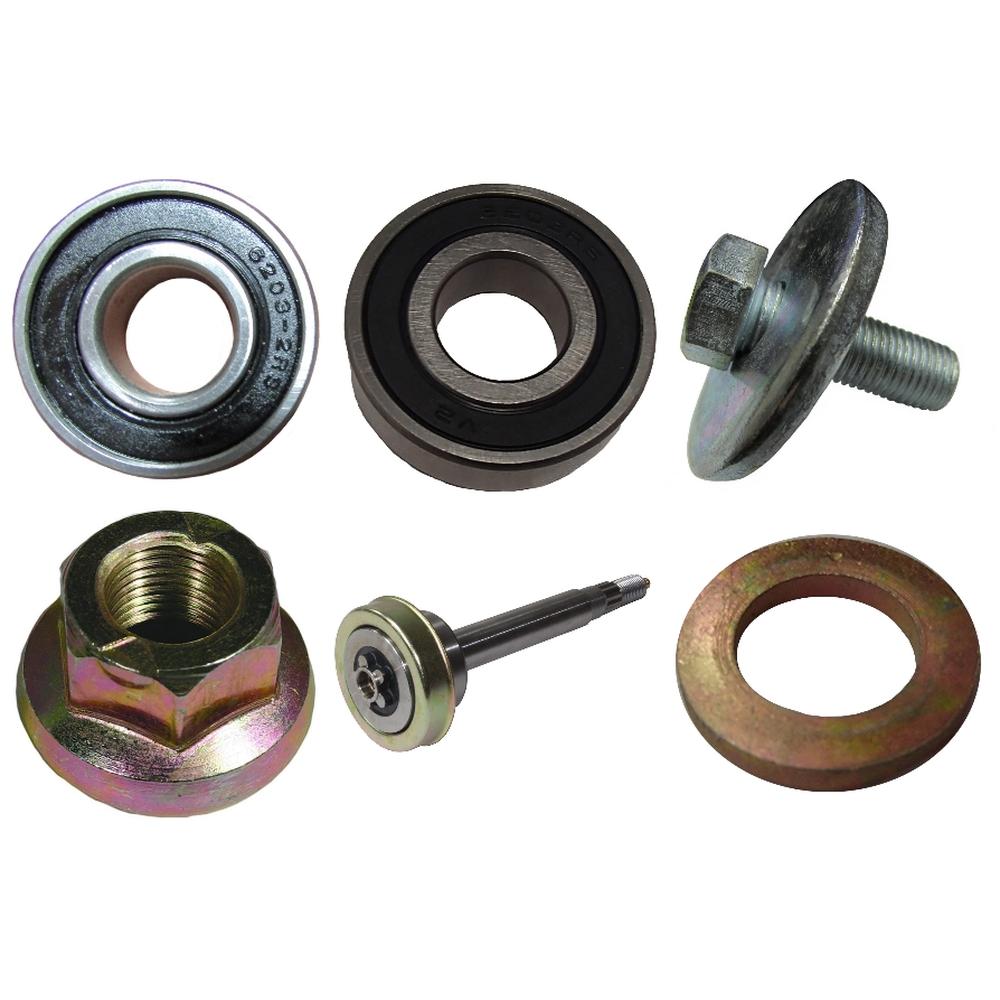

One New Aftermarket Spindle Shaft Assembly w/ Hardware

Tech Info:
 -(1) Spindle Shaft
 -Approx. Length: 7-1/2" Long, with 5 Point Star Center Hole.
 -Fits 38" & 42" Decks
 -Replaces Part Numbers: 532187291,532192870-SHAFT,532192872
 -
 -(1) Blade Bolt w/ Flat Washer
 -Comes with washer.
 -Threads: 20,
 -Length: 1-¼",
 -Thread Size: 7/16"
 -Replaces Part Number: 532 19 30-03
 -
 -(1) Pulley Lock Nut
 -Thread Length: 9/16"-18,
 -OD: 1-1/4",
 -Thickness: 3/4",
 -Type: Flange,
 -Hex: 7/8"
 -Replaces Part Number: 532 13 72-66, 532 13 72-66, 532139729
 -
 -(1) Spacer Washer
 -ID: 11/16",
 -OD: 1-1/8",
 -Thickness: 5/32"
 -Replaces Part Number: 532187690
 -
 -(1) Sealed Ball Bearing (Econ Version)
 -ID: 0.669" (17mm),
 -OD: 1.575" (40mm),
 -Width: 0.472" (12mm),
 -Bearing Type: Double Sealed
 -Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581
 -
 -(1) Pilot Bearing
 -Has rubber seals on both sides of bearing,
 -ID: 21/32",
 -Height: 15/32",
 -OD: 1-9/16"
 -Replaces Part Numbers: C5NN7600A, 210040, B7600A3,

Made to Fit Husqvarna:
 Lawn Mower Models: Various
 Replaces Part Number(s): 532 19 28-72, 532192870, 532 18 72-91, 532 19 30-03, 532 13 72-66, 532139729, 532445266, 62032RS, 6203, 532 11 04-85, 5853239-01

 Replaces Part Number(s): 532187291,532192870-SHAFT,532192872

 Lawn Mower Models: Various
 Replaces Part Number(s): 532 19 30-03

 Replaces Part Number(s): 532 13 72-66, 532 13 72-66, 532139729

 Replaces Part Number(s): 532187690

Models This Part Fits:

Various

Additional Information:

(1) Spindle Shaft Approx. Length: 7-1/2" Long, with 5 Point Star Center Hole. Fits 38" & 42" Decks Replaces Part Numbers: 532187291,532192870-SHAFT,532192872 (1) Blade Bolt w/ Flat Washer Comes with washer. Threads: 20, Length: 1-¼", Thread Size: 7/16" Replaces Part Number: 532 19 30-03 (1) Pulley Lock Nut Thread Length: 9/16"-18, OD: 1-1/4", Thickness: 3/4", Type: Flange, Hex: 7/8" Replaces Part Number: 532 13 72-66, 532 13 72-66, 532139729 (1) Spacer Washer ID: 11/16", OD: 1-1/8", Thickness: 5/32" Replaces Part Number: 532187690 (1) Sealed Ball Bearing (Econ Version) ID: 0.669" (17mm), OD: 1.575" (40mm), Width: 0.472" (12mm), Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581 (1) Pilot Bearing Has rubber seals on both sides of bearing, ID: 21/32", Height: 15/32", OD: 1-9/16" Replaces Part Numbers: C5NN7600A, 210040, B7600A3,

Reference Numbers:

532187690, 532187291,532192870-SHAFT,532192872, 532 13 72-66, 532 13 72-66, 532139729, 532 19 30-03, 532 19 28-72, 532192870, 532 18 72-91, 532 19 30-03, 532 13 72-66, 532139729, 532445266, 62032RS, 6203, 532 11 04-85, 5853239-01

Product Sub Group:

Deck Components
